Automated Poly Bag Uncuffing and Sealing Machine
Poly bag uncuffing and sealing machine automates bag in box packaging processes. It uncuffs the bag from carton flaps, stretches and vacuumizes it before sealing and flattening.
Technical Specifications
Product Overview
Automated Poly Bag Uncuffing and Sealing

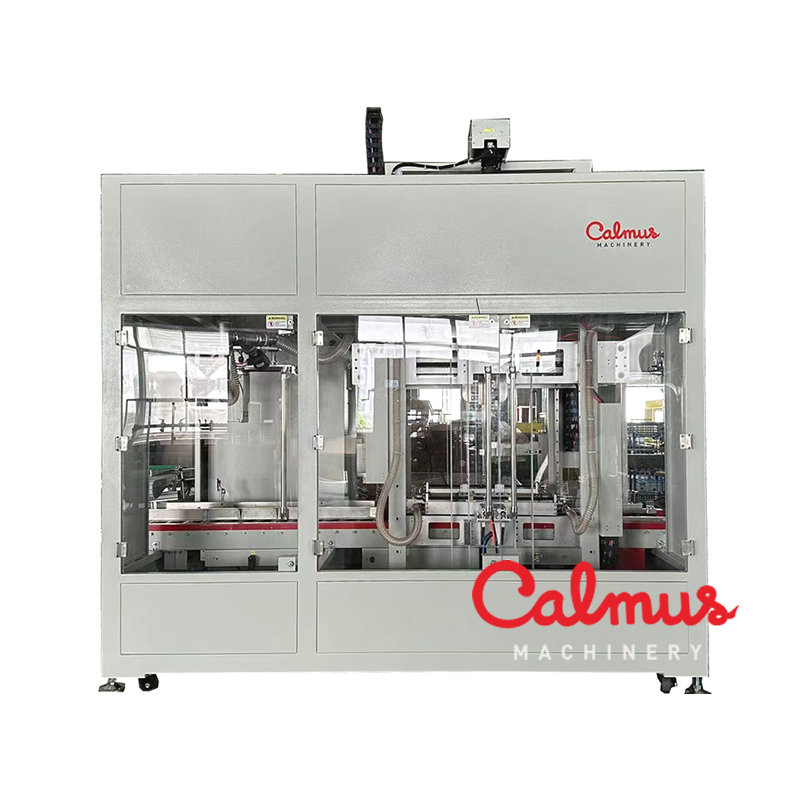

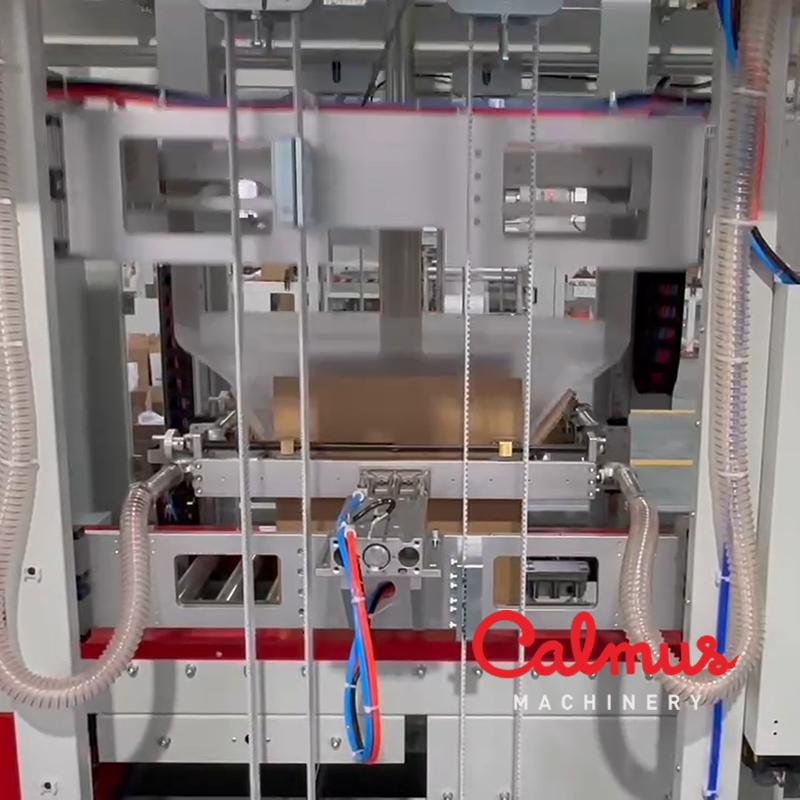

This automated poly bag uncuffer and top sealer is engineered to streamline the heat-sealing process for bag-in-box packaging applications. The system automatically uncuffs bags from carton flaps, stretches the top, applies a light vacuum to prevent ballooning, and seals the bag before flattening it within the carton. Designed to reduce labor and material costs, it offers a highly efficient, simple-to-operate solution for high-volume packaging lines.
Performance
Capacity
3 cartons/min
Min Capacity
5 cartons/min
Max Capacity
Technical Specifications
- Film Width
- 460 mm
- Max Film Width
- 840 mm
- Power Supply
- 3 phases, 7 kW
- Compressed Air Pressure
- 6 bar
- Air Consumption
- 100 NL/min
Compatibility
Applicable Carton Dimensions
| Dimension | Range (mm) |
|---|---|
| Length | 250-550 |
| Width | 200-400 |
| Height | 150-400 |
Machine Dimensions
- Overall Dimensions (L x W x H)
- 3322 x 2177 x 2350 mm
Features
- Core Functions
- UncuffingHeat-sealingVacuumizingCarton FlatteningAdjustable
