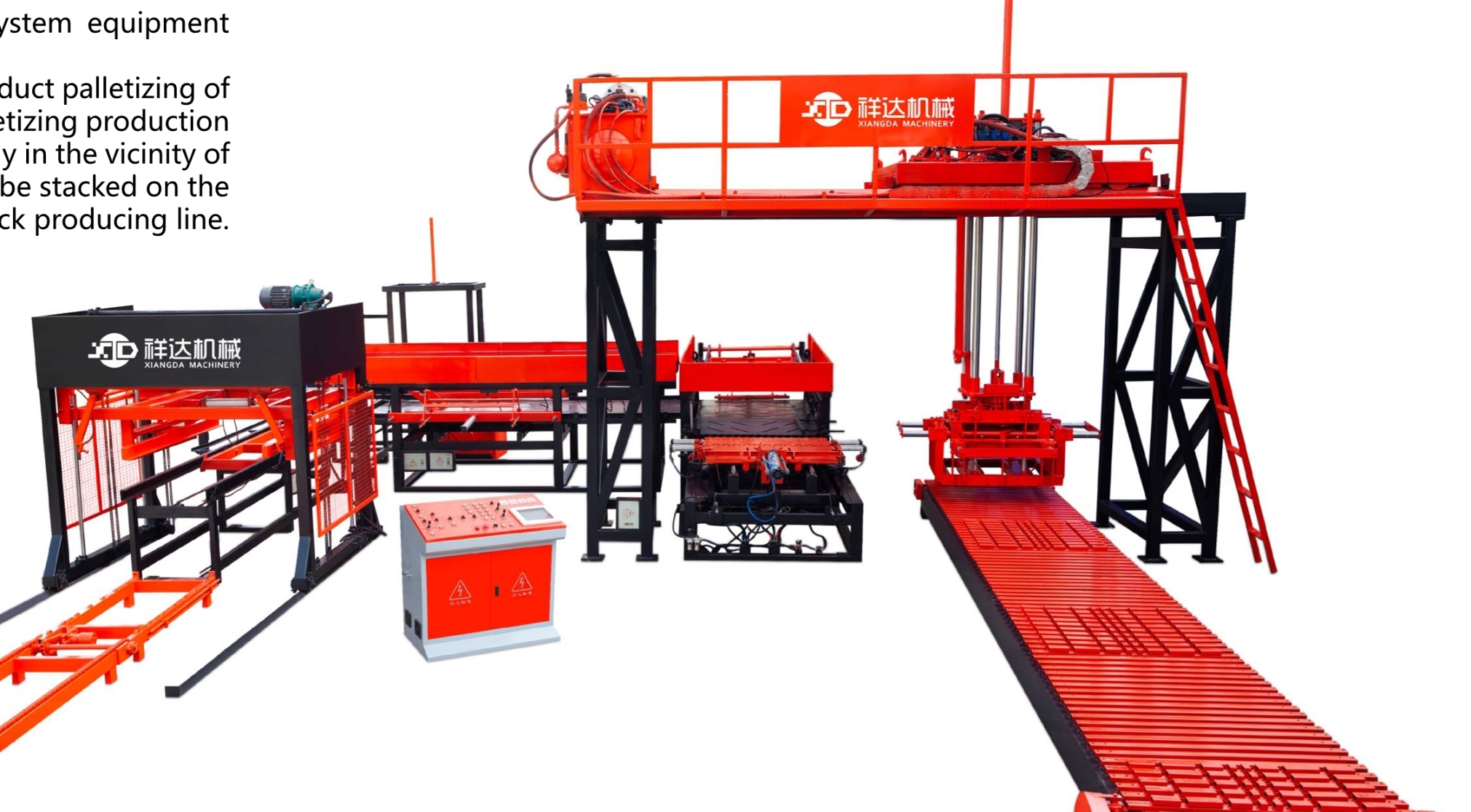

Automated Concrete Block Palletizing System
This automated system efficiently stacks concrete blocks onto pallets. It features a robust frame, advanced controls, and precision handling for reliable operation.
Technical Specifications
System Overview
Automated Concrete Block Palletizing
The XD-1200B is a high-efficiency automated palletizing system designed to streamline the handling of concrete blocks in production environments. It features intelligent sensor technology and PLC-based control to deliver precise, unmanned stacking up to 1400mm in height. By automating the cross-stacking process, the system significantly improves productivity and reduces reliance on manual labor, while its remote monitoring capabilities ensure maintenance and operational support are always accessible.
Daily Throughput
15,000 pieces
Daily Capacity
16 s
Cycle Time
Technical Specifications
- Power Consumption
- 45.65 kW
- Max Stacking Height
- 1400 mm
- Standard Capacity
- 936 pieces per stack (48 pieces per layer)
Components List
Primary Modules
| Component | Quantity |
|---|---|
| Products Feeder | 1 |
| Elevator | 1 |
| Pushing Pallet Device | 1 |
| Pushing Block Device | 2 |
| Gantry Stacker Clamps | 1 |
| Chain Conveyor | 1 |
| Pallet Turning Device | 1 |
| Lowerator | 1 |
| Hydraulic System | 2 |
| Central Control System | 2 |
Features
- System Capabilities
- PLC ControlLaser SensorsCloud Data IntegrationUnmanned OperationRemote Control SystemCross-stacking Capable
