Automated Concrete Block and Paver Production Line
This automated line efficiently produces concrete blocks and pavers. The system is designed for high-volume output, ensuring consistent quality and minimal labor.
Technical Specifications
Product Overview
Automated Concrete Production Line
The QFT3-20 is a high-performance, automated production line engineered for the efficient manufacturing of diverse concrete products, including bricks, pavers, hollow blocks, and cellular blocks. Featuring advanced hydraulic pressing and vibration technology, it ensures uniform density and consistent dimensional accuracy across all outputs. Designed for high-volume operations, this robust system integrates material feeding, precision molding, and reliable mechanical control to maximize daily production efficiency.
Technical Specifications
- Outside Dimensions
- 4500 x 1500 x 2800 mm
- Total Weight
- 5600 KG
- Rated Pressure
- 21 MP
- Vibration Frequency
- 50Hz; 3000-4000r/min
- Power Consumption
- 30 kW
Production Capacity
Daily Production Output (8 Hours)
| Product Type | Pieces/Mould | Output (8 hrs) |
|---|---|---|
| Standard Brick | 20 | 28,000 |

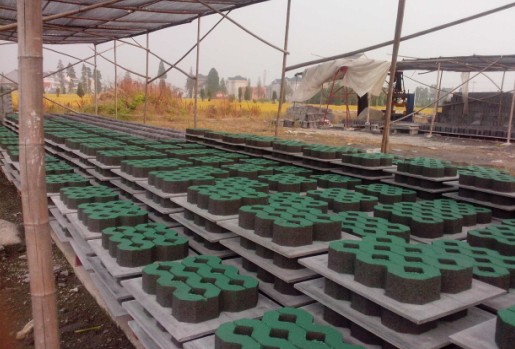

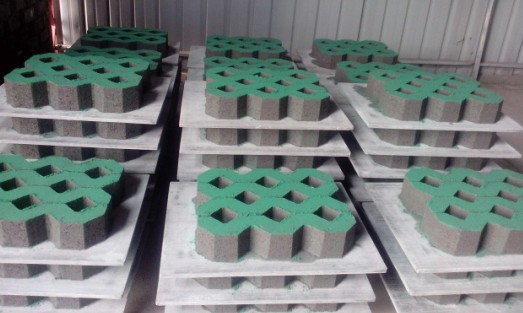

| Paver | 12 | 17,280 |
| Hollow Brick | 4 | 5,760 |

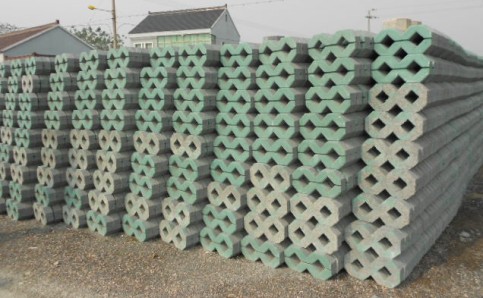

| Cellular Block | 3 | 4,320 |
