Automated Block Curing and Stacking System
This automated system efficiently cures and stacks concrete blocks. Using RGV technology, it minimizes manual handling and maximizes production throughput.
Technical Specifications
System Overview
Automated Block Curing and Stacking System

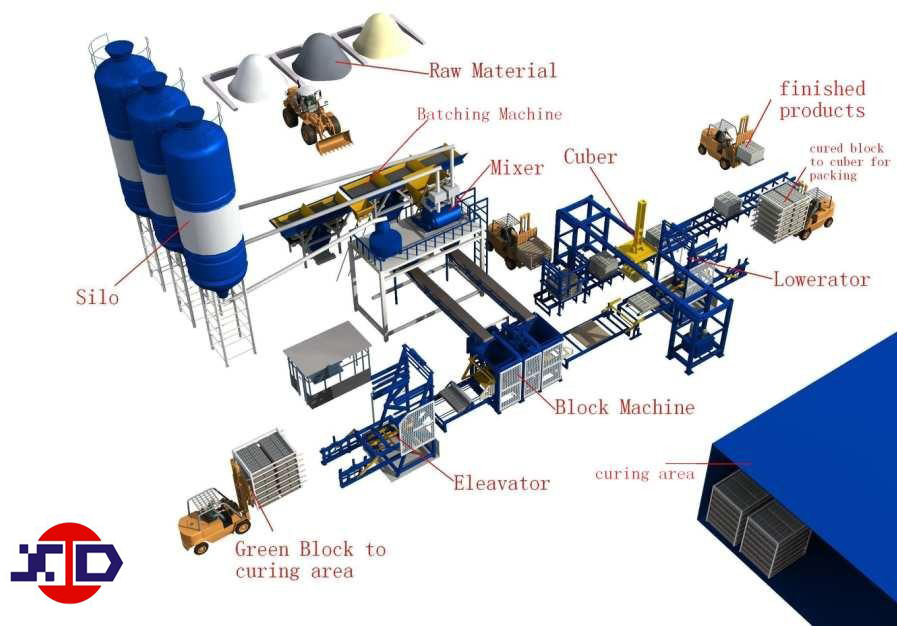

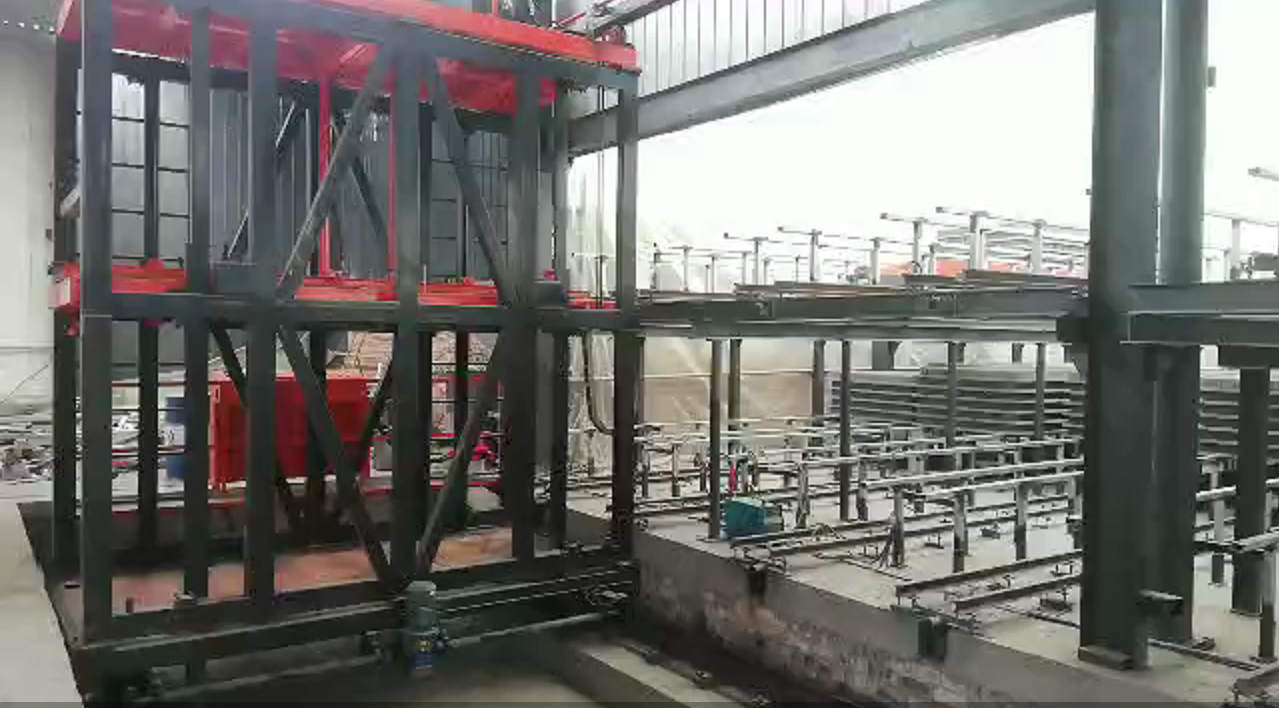

This high-efficiency production line features an automated RGV (Rail Guided Vehicle) curing and stacking system designed to streamline concrete block manufacturing. By integrating key processes such as feeding, elevating, pushing, and dividing, the system significantly reduces manual labor and improves overall production throughput. The robust design ensures precise, consistent handling of materials, making it an ideal solution for high-volume industrial block production environments.
- Key Features
- Automated RGV SystemHigh-Level PalletizingCustomizable ChucksPLC ControlVariable Frequency Drives
System Components
Included Equipment
- Products Feeder
- Elevator
- Pushing Pallet Device
- Pushing Block Device
- Divide Brick Device
- Retain Hole Platform
Technical Specifications
Equipment Power Ratings
| Equipment Name | Model | Power (KW) |
|---|---|---|
| Elevator | XD-1200-B | 5.5 |
| Pushing Block Device | XD-1200-B | 6.2 |
Standard Brick Conveyor Length
8 m
Conveyor Length
- Customization
- Chuck specifications are custom-manufactured according to the size of the customer's pallet.
