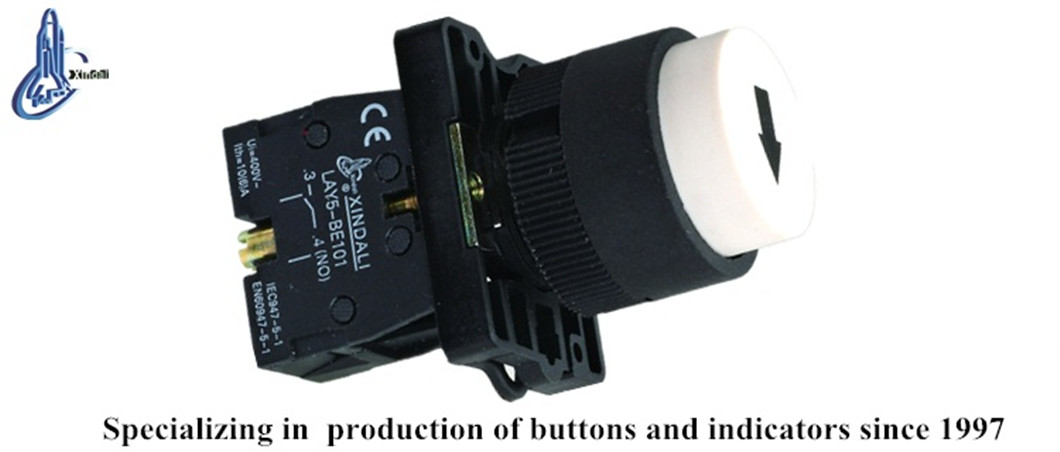

Arrow Marked Convex Push Button
This arrow marked convex push button is designed with a spring return mechanism. It is ideal for use in control panels, machinery, and other equipment requiring a momentary switch function.
Technical Specifications
Overview
Industrial Control Push Button
The arrow-marked convex push button is a robust industrial control component designed for reliable signal and interlocking operations. Constructed from zinc alloy and high-grade anti-flame plastic, it offers durability in demanding environments such as distribution cabinets and control panels. This spring-return mechanism ensures consistent performance with a long mechanical and electrical lifespan, complying with international safety standards including CE, RoHS, and IEC specifications.
Technical Specifications
- Rated Insulation Voltage
- AC 600V (50Hz/60Hz)
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Withstand Voltage
- AC 2.5KV/min
Performance Metrics
Mechanical Life
1,000,000 ops
Pushbutton Cycles
Electrical Life
500,000 ops
Pushbutton Cycles
Physical Characteristics

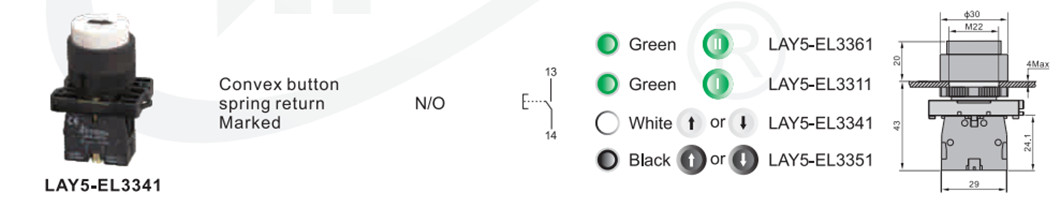

Physical Dimensions
| Dimension | Value |
|---|---|
| Button Diameter | φ30mm |
| Mounting Hole | M22 |
| Overall Height | 43mm |
| Base Width | 29mm |
| Panel Thickness | Max 4mm |
Compliance & Standards
- Certifications
- CEISO 9001RoHSULIEC 60947-5-1
