Technical Specifications
Product Overview
High-Performance Multi-Channel Transducer

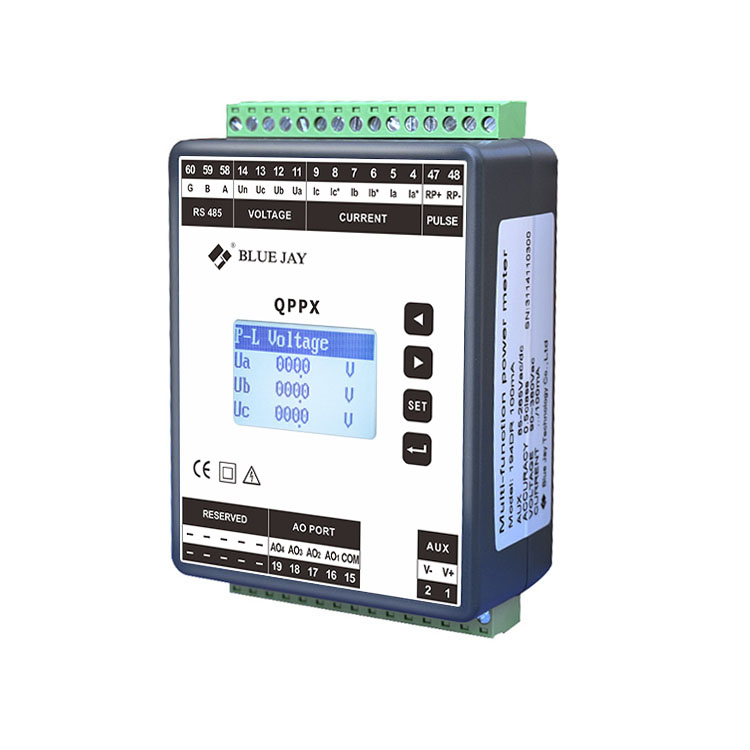

The QPPX is a versatile AC power transducer designed for precise measurement of electrical parameters in industrial control and instrumentation systems. Featuring a four-channel output and advanced RS485-Modbus communication, it allows for seamless integration into SCADA systems and electrical distribution networks. With a rapid 500ms response time and intuitive front-panel programming, it provides an efficient, user-friendly solution for complex power monitoring requirements.
Technical Specifications
Accuracy Class
0.5 Class
- Response Time
- 500 ms
- Auxiliary Voltage Range
- 85-265V AC/DC
- Input Voltage Range
- 90-380V AC
Key Features
Configuration Options
- Front panel 4-key keypad
- PC-based SCADA software
- Communication
- RS485ModbusDigital Inputs
Mechanical & Installation
- Mounting
- 35mm DIN Rail
Applications
- Suitable Applications
- Instrumentation PanelsControl SystemsElectrical DistributionTransmission SystemsGenerator MonitoringSCADA Systems
