Technical Specifications
Overview
Professional Electrical Disconnection

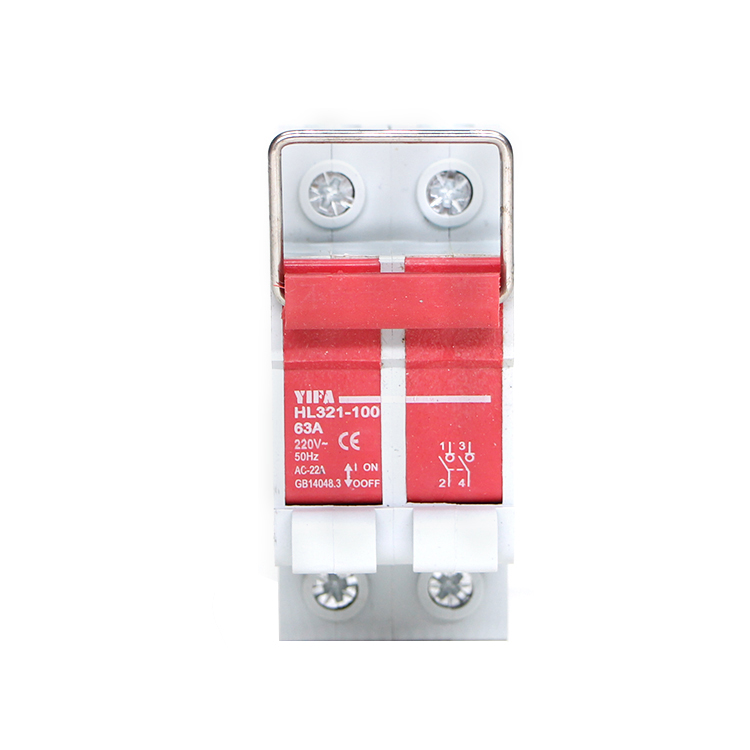

This disconnector circuit breaker is engineered for secure electrical circuit isolation, specifically designed for 230V AC 50/60Hz systems. It excels in load-free switching applications, effectively isolating power supplies during maintenance to ensure maximum operator safety. Compliant with international standards, it provides a reliable and robust solution for professional power distribution environments.
Electrical Specifications
Rated Current
- 32
- 63
- Rated Operating Voltage
- 230 V
- Rated Impulse Withstand Voltage
- 4 kV
Standards & Certification
- Industry Compliance
- GB14048.3IEC60947-3CE
Performance Metrics
Mechanical Life
10,000 cycles
Operations
Technical Details
Operating Characteristics
| Parameter | Value |
|---|---|
| Short-time withstand current (Icw) | 12Ie (1s) |
| Short-circuit making capacity (Icm) | 20Ie (1s) |
