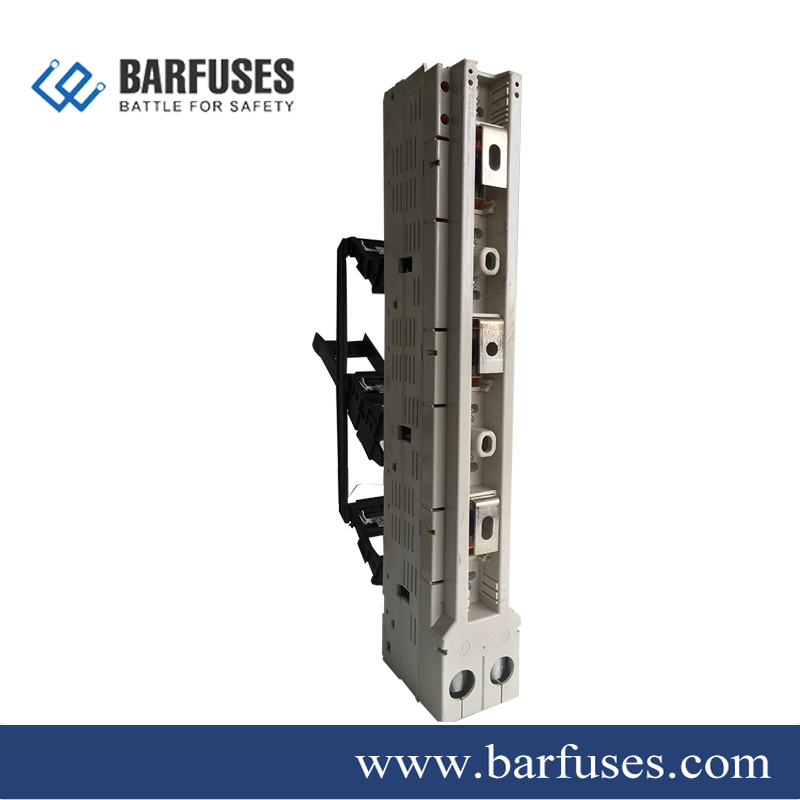

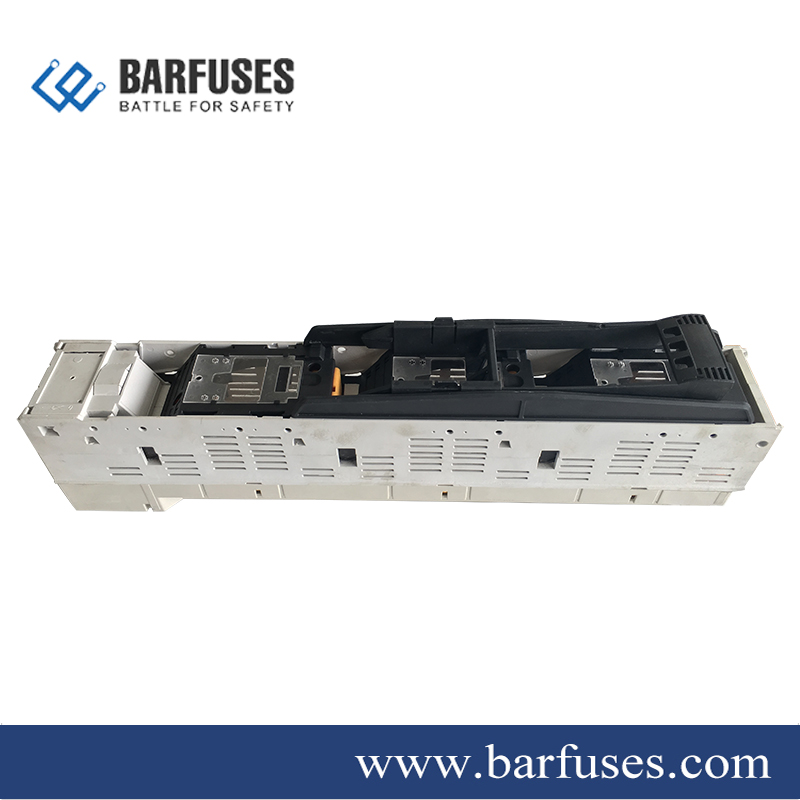

NH Vertical Fuse Switch Disconnector
This vertical fuse switch disconnector features a base composed of SMC/DMC, copper, and nylon plastic. It is designed for convenient assembly on a 185mm busbar system, allowing for simultaneous 3P operation and easy disassembly and cabinet installation.
Technical Specifications
Product Overview
High-Performance Vertical Fuse Switch Disconnector
This NH vertical fuse switch disconnector is engineered for reliable circuit protection and efficient power distribution in industrial and commercial electrical systems. Featuring a compact vertical design, it optimizes panel space while ensuring safe operation and easy maintenance. Built with high-quality materials including SMC/DMC base and PA66 plastic, this unit is designed for durability and rigorous safety standards.
Technical Specifications
Material Composition
- SMC/DMC base
- Copper components
- PA66 plastic housing
Copper Plating Options
Silver PlatedTin Plated
- Mounting System
- 185mm busbar system
- Operation Mode
- 3P simultaneous operation
- Connection Types
- ScrewsV Terminals
Compliance & Safety
Certification
VDE Certified
- Safety Standards
- 960°C Glow Wire Test Passed
Key Metrics
Busbar Spacing
185 mm
Busbar Width
