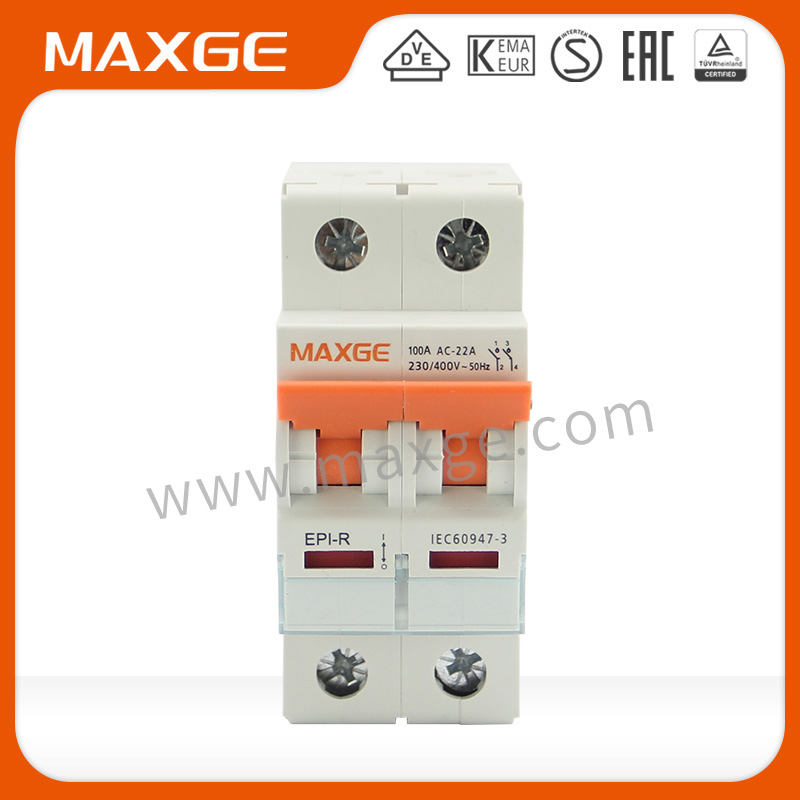

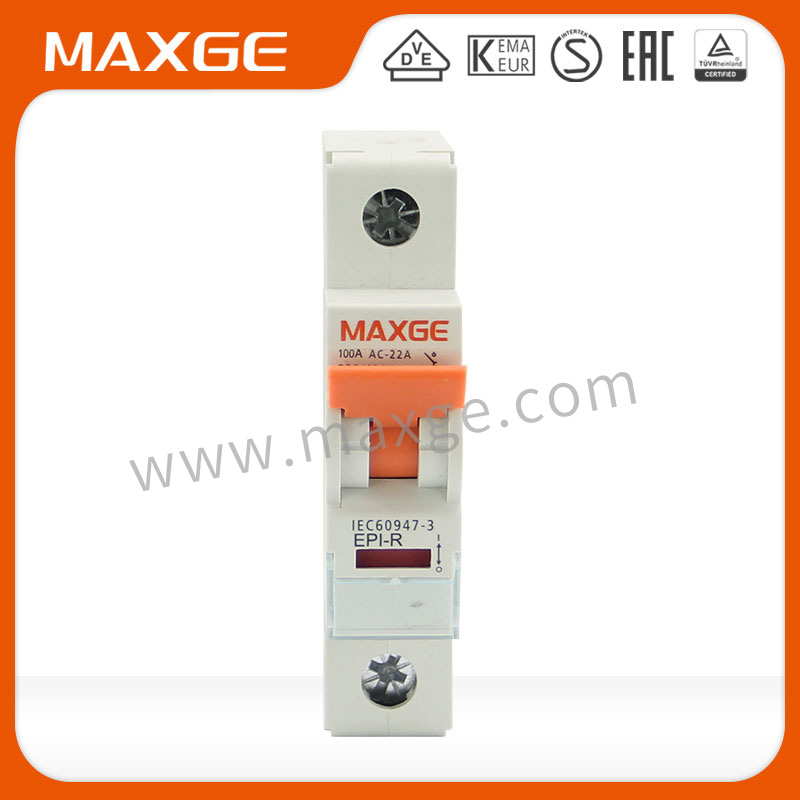

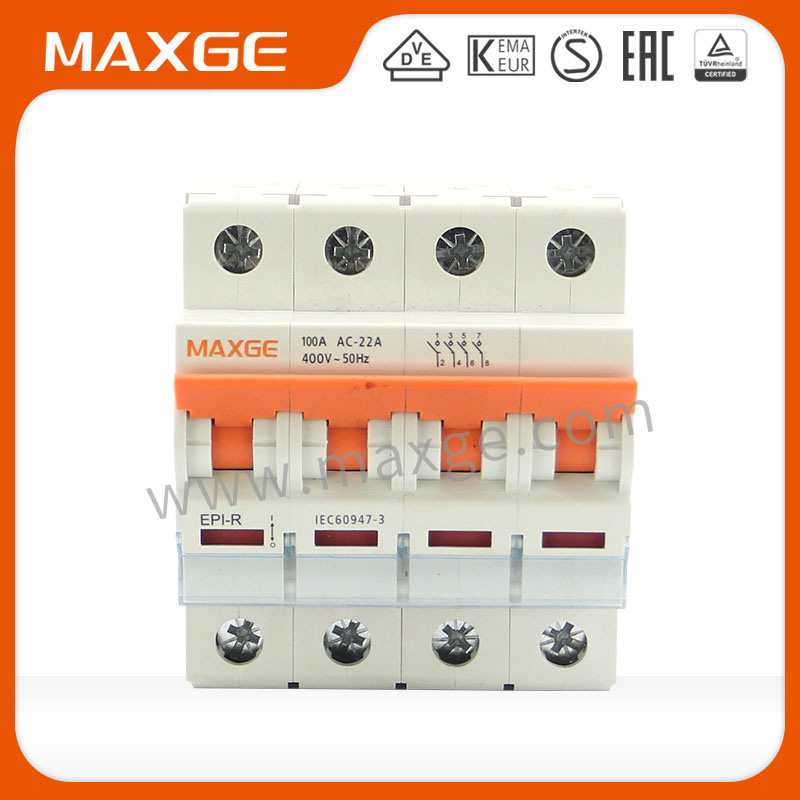

100A Electrical Isolating Switch
This isolating switch is suitable for AC 50Hz or 60Hz power distribution with a rated current of 100A and working voltage of 230V to 400V. It is mainly used as the main switch for terminal electrical appliances, controlling electric motors, small power appliances, and lighting.
Technical Specifications
Overview
Professional Electrical Isolation
This high-performance isolating switch is engineered for reliable power distribution in AC 50Hz or 60Hz electrical systems. Designed for safety and durability, it serves as an essential main switch for terminal electrical appliances, control circuits, and lighting installations. With robust construction, it ensures long-term operational integrity for demanding industrial and commercial environments.
Electrical Ratings
Utilization Category
AC-22A
- Rated Current
- 100 A
- Rated Voltage
- 230V / 400V
- Rated Insulation Voltage (Ui)
- 690 V
- Rated Impulse Withstand (Uimp)
- 6000 V
Performance & Durability
Short Circuit Metrics
12 Ie
Icw (t=0.1s)
20 Ie
Icn (t=0.1s)
- Mechanical Endurance
- 10000 cycles
- Electrical Endurance
- 1500 cycles
Installation & Compatibility

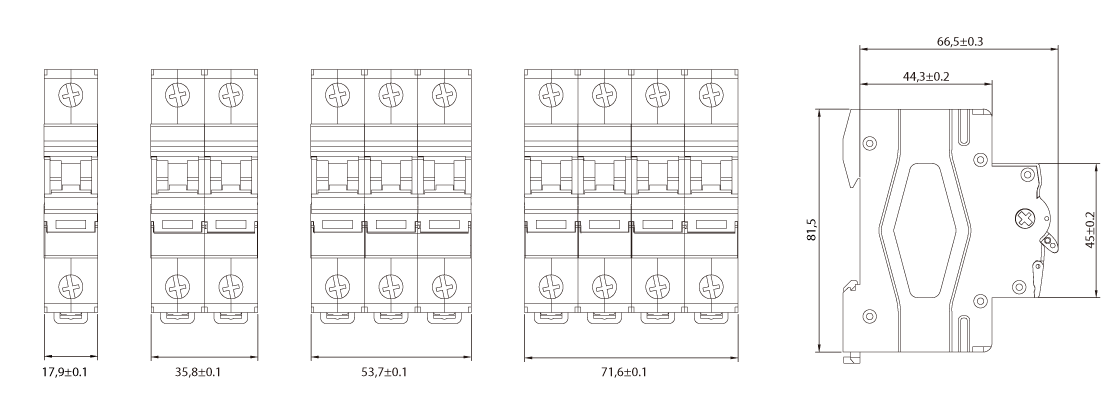

- Available Configurations
- 1P2P3P4P
- Max Terminal Capacity
- 50 mm²
- Mounting
- 35mm DIN rail
- Protection Degree
- IP20
Environmental Specs
- Operating Temperature
- -5°C to +35°C
- Storage Temperature
- -40°C to +75°C
- Max Altitude
- 2000 m
Standards & Compliance
Compliance Standards
- EN/IEC 60947-3
