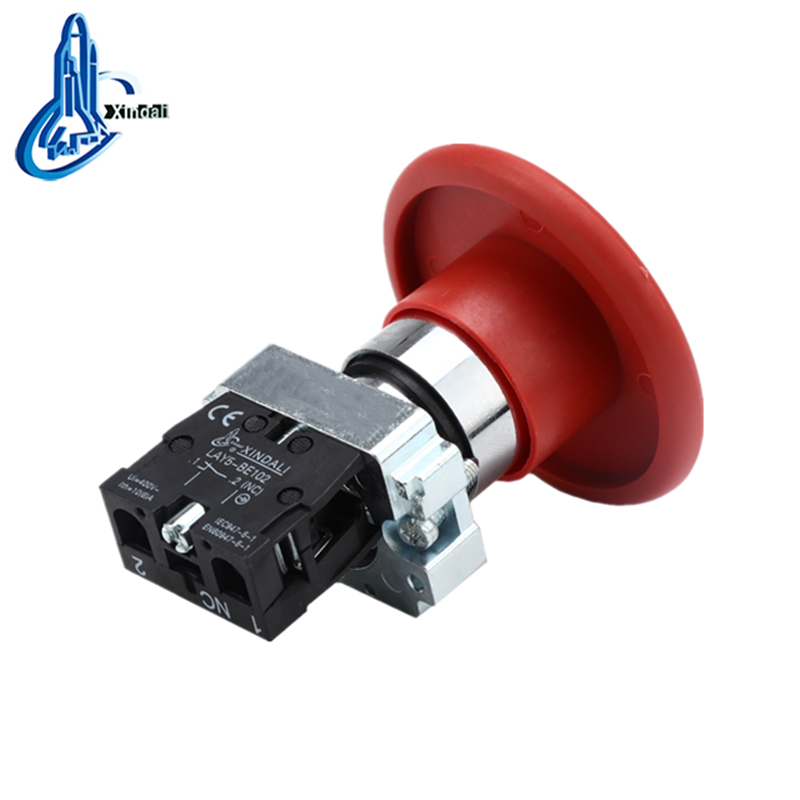

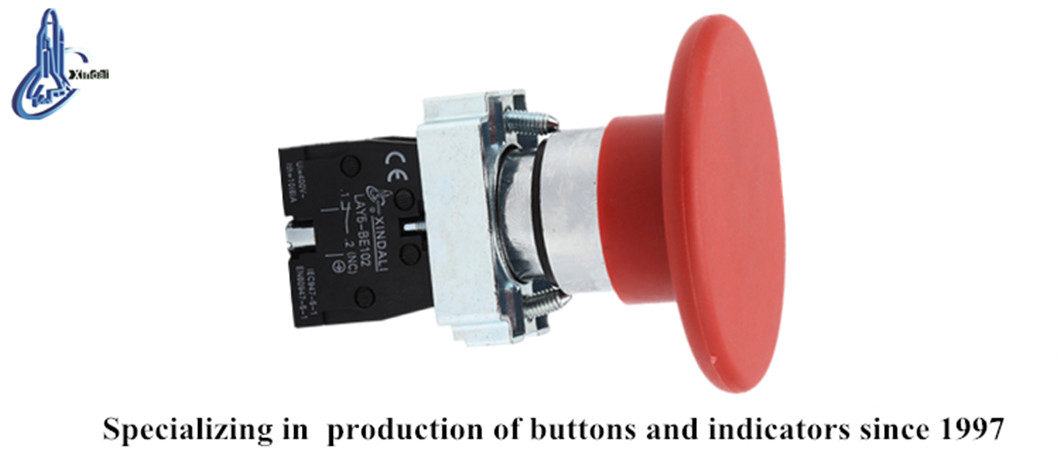

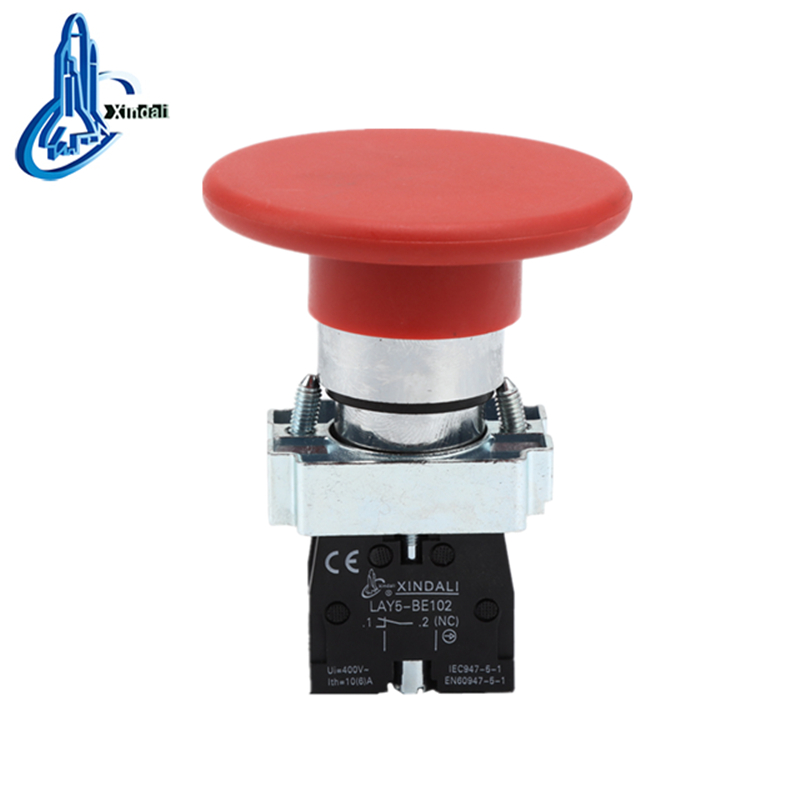

60mm Mushroom Head Spring Return Push Button Switch
This 60mm mushroom head push button switch is designed with a spring return mechanism. The metal construction ensures durability and reliability in industrial environments.
Technical Specifications
Product Overview
Industrial Mushroom Head Push Button
The 60mm mushroom head spring return push button switch is engineered for demanding industrial control applications. Constructed with a durable zinc alloy body and high-grade anti-flam plastic, this switch is designed to withstand mechanical wear and harsh environmental conditions. It features a large, highly visible actuator for reliable operation in emergency stop or control circuit configurations, ensuring safety and responsiveness in machinery and control panels.
Technical Specifications
Performance Metrics
600 V
Rated Insulation Voltage
10 A
Heating Current

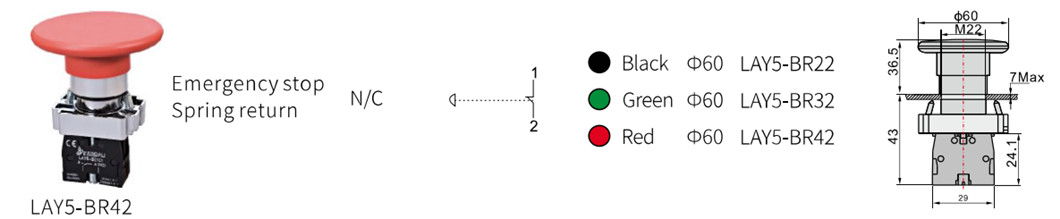

22 mm
Mounting Hole Diameter
Electrical Properties
| Parameter | Value |
|---|---|
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Dielectric Strength | AC 2.5KV/min |
| Voltage Wave Tolerance | ±20% |
Operational Life
- Mechanical Life: 1,000,000 operations
- Electrical Life: 5,000,000 operations
- Continuous Working Life: 100,000 hours
Design & Construction
Physical Characteristics
- Head Diameter: 60mm
- Action Type: Spring Return (Momentary)
- Main Material: Zinc Alloy & Anti-flam Plastic
- Contact Configuration: 1NC (Normally Closed)
Compliance & Standards
- Certifications
- CEISO 9001RoHSULIEC 60947-5-1
