60-Ton Hydraulic Truck Crane
This 60-ton hydraulic truck crane is widely used for lifting in construction, transportation, and other engineering projects. It is designed for diverse working conditions, including ports, oilfields, and mines.
Technical Specifications
Overview
Professional 60-Ton Hydraulic Truck Crane

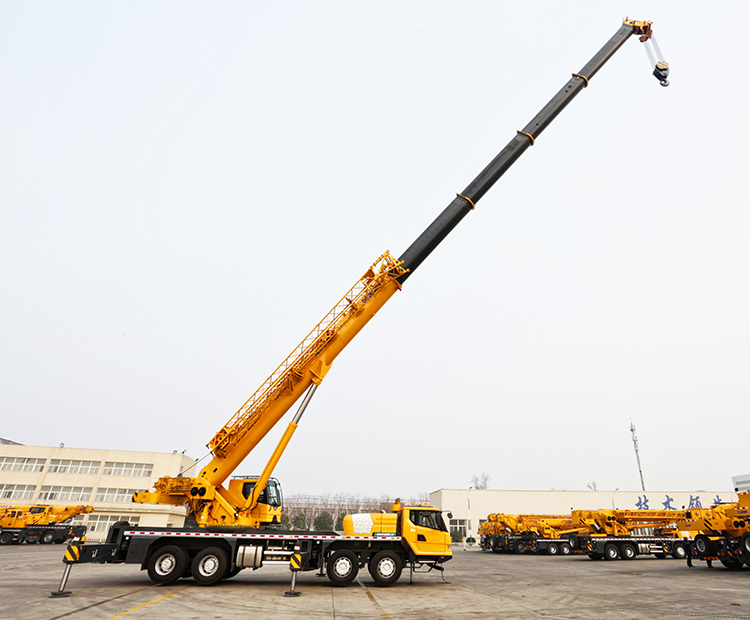

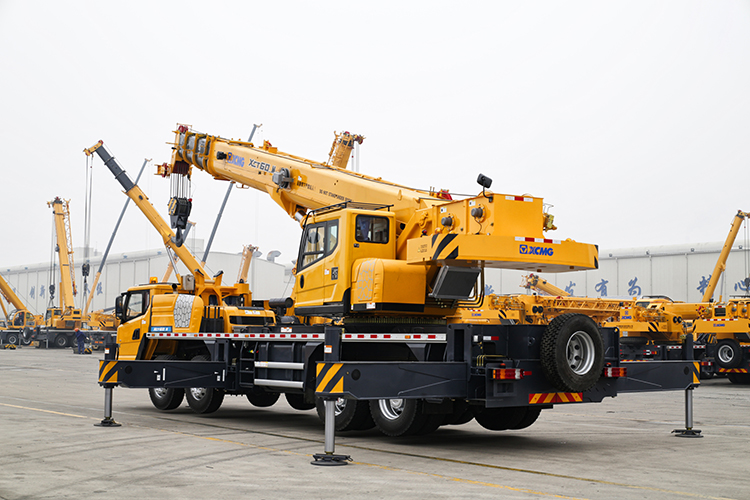

This high-performance 60-ton hydraulic truck crane is engineered for versatility in demanding environments, including construction, urban renewal, and large-scale industrial projects like oilfields and mining. It features a 5-section telescopic boom reaching up to 59.8 meters and is designed for high-temperature resistance, allowing for continuous operation in environments up to 60°C. With its advanced hydraulic control and robust mobility, it provides a reliable solution for heavy-duty lifting requirements.
Performance
Key Performance Metrics
60 t
Max Lifting Capacity
59.8 m
Max Lifting Height
44 m
Boom Length
- Environmental Capabilities
- High Temperature ResistanceContinuous 60°C OperationMulti-Environment Application
Technical Specifications
Physical Dimensions and Weight
| Parameter | Value |
|---|---|
| Travel Dimensions (L x W x H) | 14090x2790x3630 mm |
| Total Vehicle Mass | 42200 kg |
| Min. Ground Clearance | 250 mm |
| Min. Turning Diameter | 24 m |
Engine and Mobility
- Engine Rated Power: 247 kW at 2200 rpm
- Max. Output Torque: 1350 N.m at 1100-1600 rpm
- Max. Travel Speed: 90 km/h
Axle Load Distribution
- 1st and 2nd Axle: 16200 kg
- 3rd and 4th Axle: 26000 kg
