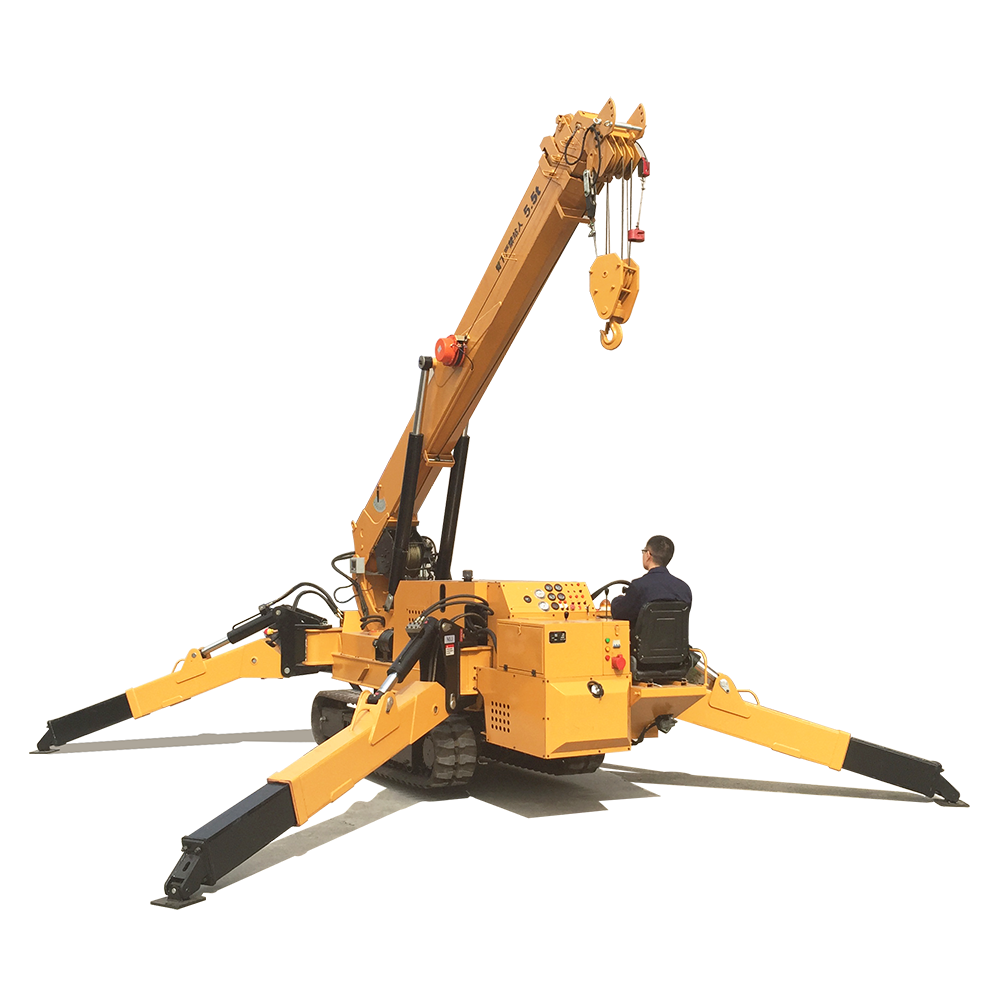

5.5 Ton Foldable Mini Crawler Crane
The 5.5 ton mini foldable crawler crane is designed for use in narrow working spaces. It features hydraulic winching, stretching, and slewing systems.
Technical Specifications
Overview
Compact Power for Narrow Spaces
The 5.5 Ton Mini Crawler Crane is a versatile lifting solution engineered specifically for operation in confined working environments where traditional heavy-duty cranes cannot access. Utilizing advanced design methodologies like 3D solid modeling and finite element analysis, this unit offers superior flexibility, stable performance, and reliable operation. Its hydraulic crawler system ensures maneuverability across challenging terrains, making it an essential tool for construction, maintenance, and industrial projects requiring precision.
General Information
- Model
- HXB 5.5
Performance & Lifting
Crane Capacity
5.5 t
Max Capacity
1.8 m
At Radius
- Max Operating Radius
- 16 m
- Max Lifting Height
- 16.9 m
Winch System
- Hook Up Speed
- 10m/min (4 falls)
- Wire Rope Specifications
- Ø10mm x 80m
Boom System
- Boom Form
- 5 section with fly jib
