3-Ton Mini Crawler Crane for Construction

This mini crawler crane is designed for construction and earth moving applications. Its compact design allows for maneuverability in confined spaces.

Request a Quote Download PDFPDF

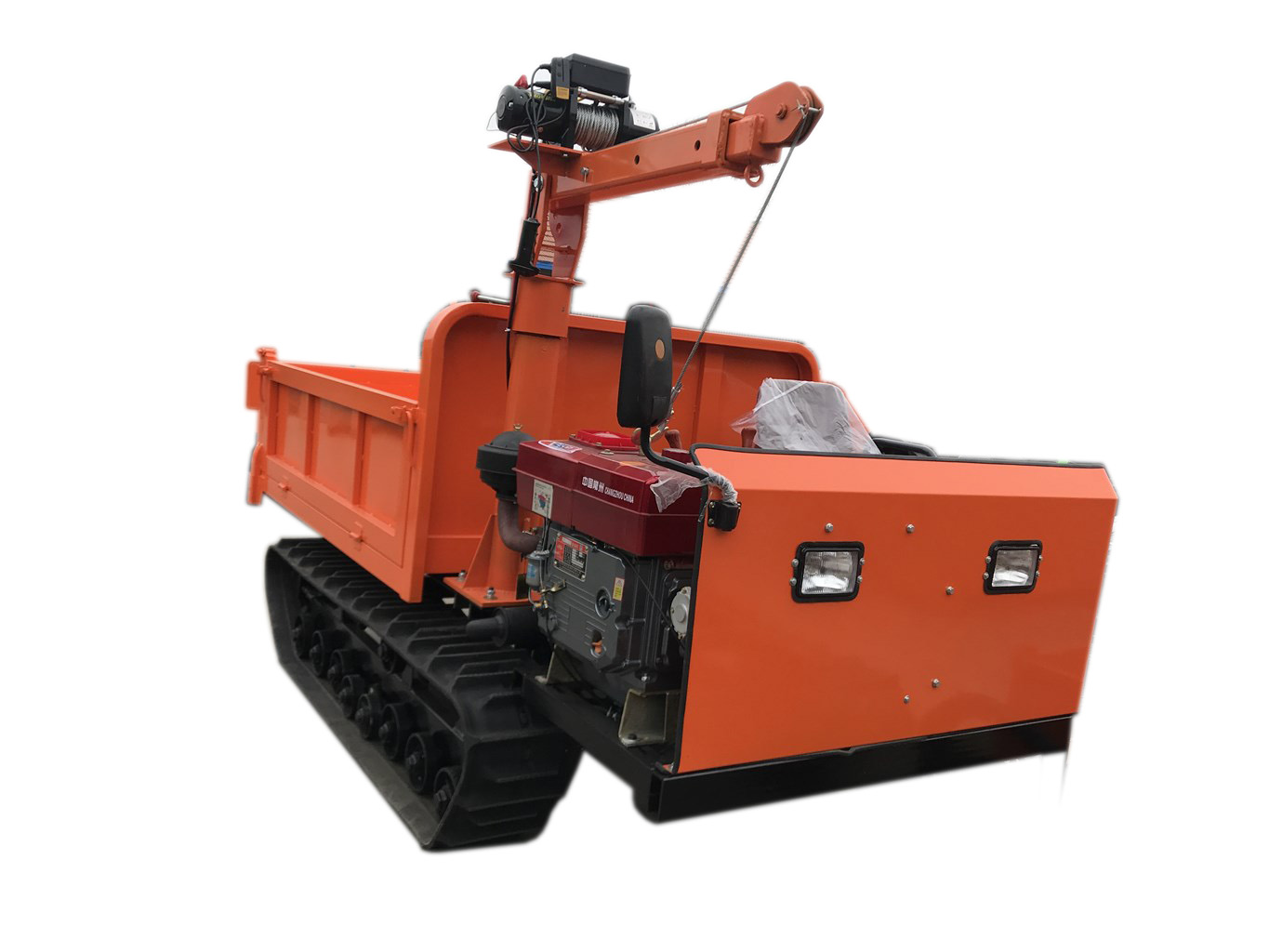

Mini hydraulic crane factory construction 3ton crawler crane with low price - Image 1

Technical Specifications

Overview

Compact Power for Construction

This 3-ton mini crawler crane is engineered for efficiency in confined spaces, making it an ideal choice for factory construction, earth moving, and material handling. Its compact design ensures easy transportation and installation, while the robust crawler track system provides superior stability and traction across uneven terrain. Powered by a reliable diesel engine, this machine offers a cost-effective solution for professional lifting tasks.

Technical Specifications

Engine Power

11 HP

Engine Rating

8 kW

Power Output

Lifting Capacity: 3 ton
Total Machine Weight: 380 kg
Walking Speed: 5-12 km/h
Drive System: Mechanical transmission
Gear Configuration: Top three forward, one reverse

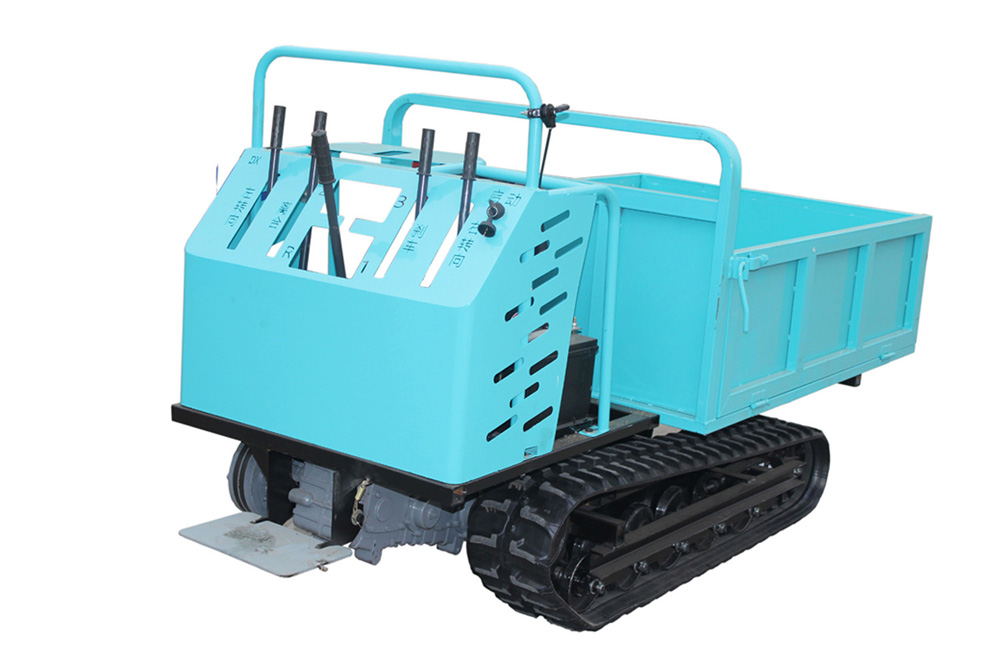

Close up of the operator control levers and gear shift interface for the mini crawler crane. — Intuitive control interface featuring gear selection and operation levers for precise handling.

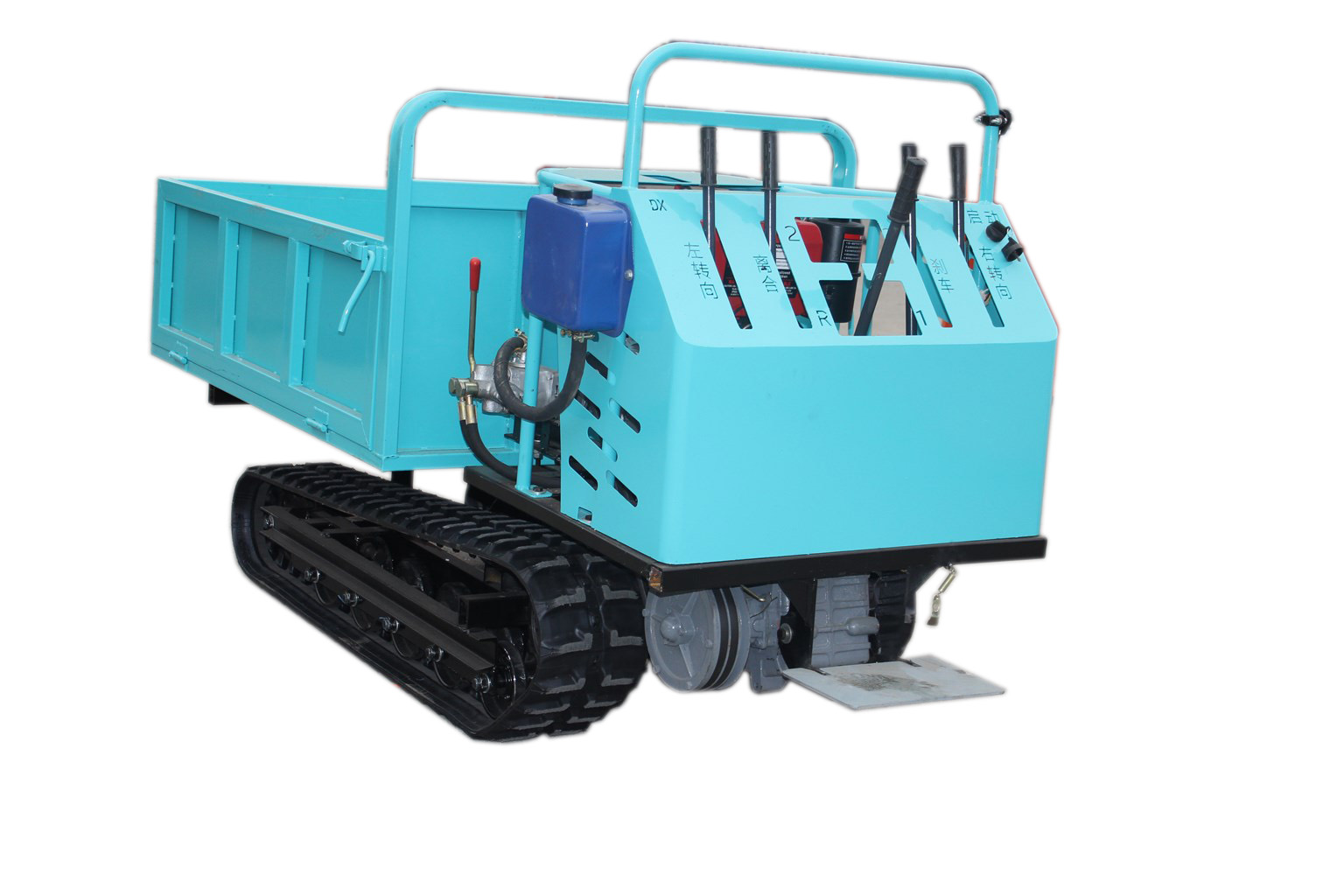

Detailed view of the crane controls including steering and gear shifting labels. — Ergonomic control layout designed for ease of use and operator safety.

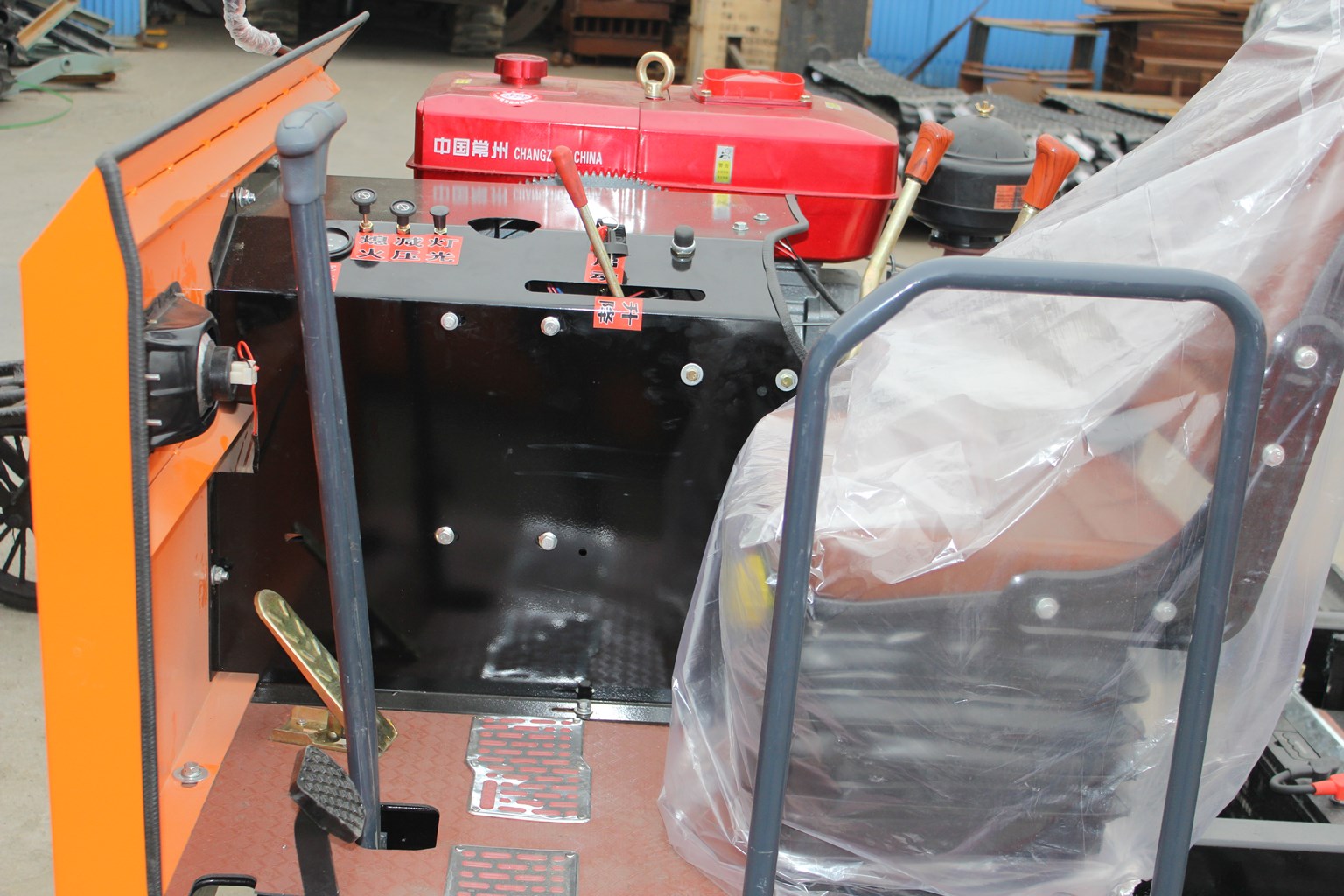

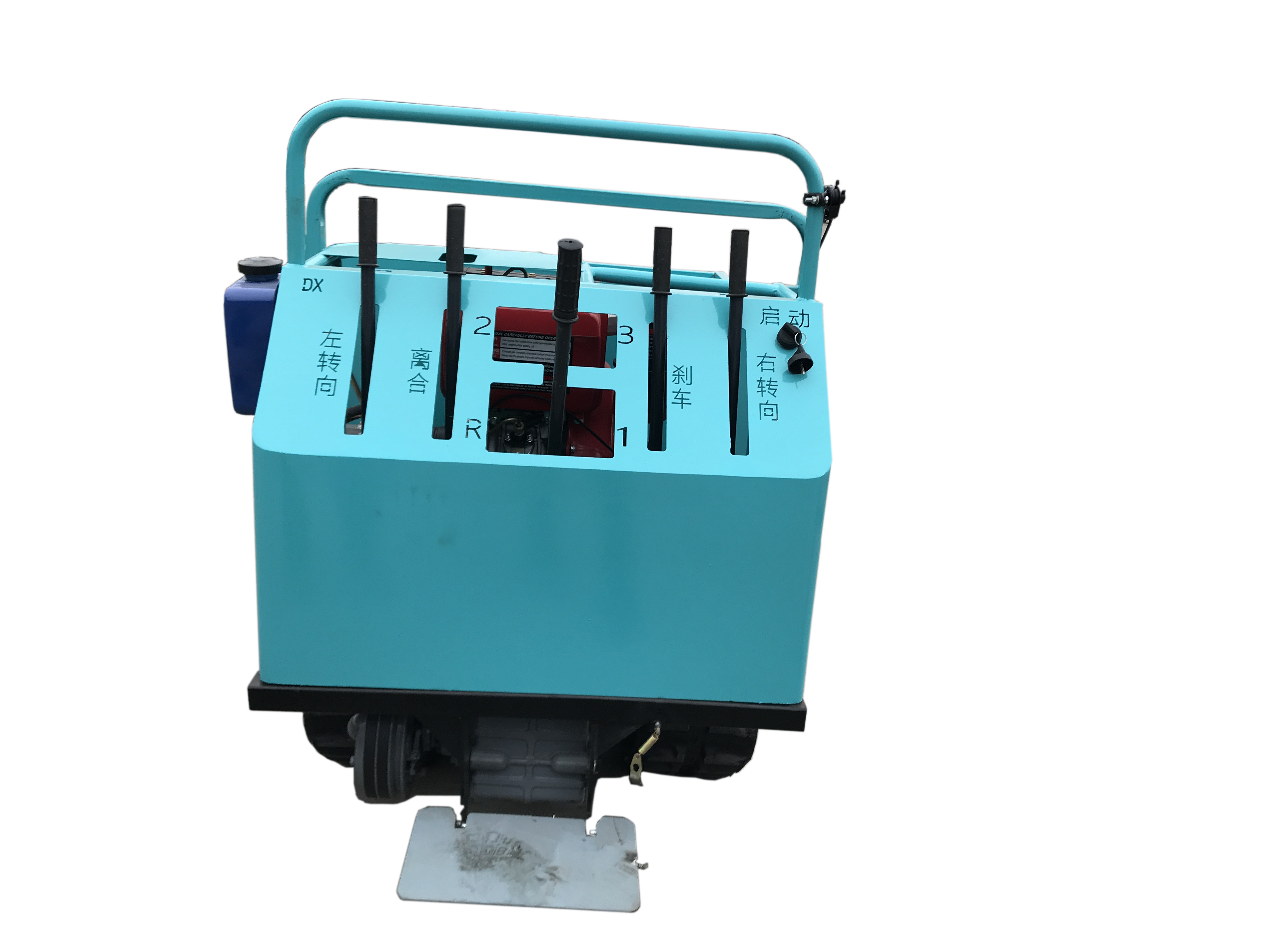

Operator station and controls of the mini crawler crane. — The control station provides clear visibility and access to all essential operational functions.

Dimensions

Machine Size (L×W×H): 1900 × 750 × 1200 mm
Trunk Size (L×W×H): 1250 × 750 × 430 mm
Ground Contact Length: 1200 mm

Construction & Materials

Track Material: Engineering rubber track
Key Features: Compact DesignHydraulic SystemCrawler TractionDiesel Powered
