Technical Specifications
Overview
Professional 500L Craft Brewing Solution

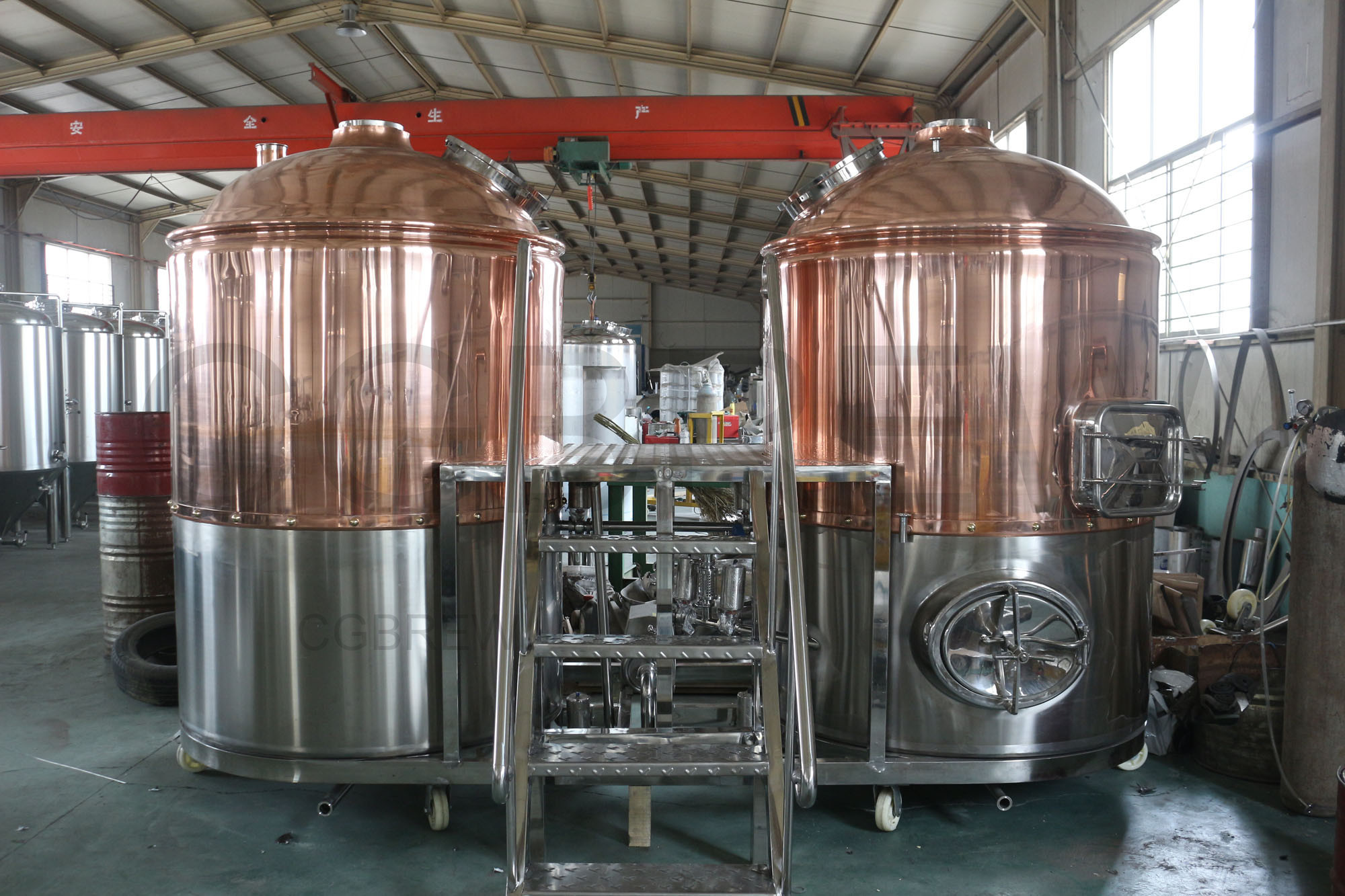

This 500L craft beer brewing system is a versatile solution designed for microbreweries, brewpubs, and laboratories. Constructed from food-grade SUS304 stainless steel or red copper, it supports the production of a wide variety of beers including Lagers, Ales, Stouts, and specialty fruit beers. The system is engineered for durability and precision, offering both semi-automatic and full PLC control options to suit different operational needs.
Key Metrics
Performance Metrics
500 L
Standard Batch Capacity
20 Years
Manufacturing Experience
3 Years
Main Machine Warranty
System Components
System Specifications
| System Type | Capacity / Configuration |
|---|---|
| Brewhouse System | 100L to 5000L per batch |
| Fermentation System | 200L to 5000L tank volume |
| Chilling System | 1 to 2 refrigeration machines |
| Cleaning System | Stainless steel trolley (1-2 tanks) |
| Control System | Digital meters or PLC full-automatic |
Technical Features
Vessel Design Features
- Insulated walls for temperature maintenance
- Mash/lauter tun with false bottom for grain separation
- Brew kettle with tangential inlet for whirlpooling
- Conical bottom fermentation tanks for yeast settling
- Integrated platform with safety ladder
- Mobile mounting on wheels for maneuverability
- Materials
- SUS304 Stainless SteelRed CopperFood Grade
Applications
Target Applications
BrewpubMicrobreweryRestaurantHotelLaboratoryTeaching & Research
Brewing Capabilities
Supported Beer Styles
- Lager
- Ale
- Stout
- Bock
- Porter
- Fruit/Juice Beer
- Wheat/Yellow Beer
Service & Support
Support Services
- Free drawing design service
- On-site installation guidance
- Staff brewing training
- Lifetime technical support
- Raw material supply chain assistance
Logistics
- Production Time
- 40 Days
