200L Craft Beer Brewing System
This 200L craft beer brewing system is constructed with SUS304 stainless steel. It is designed for use in restaurants, brewpubs and microbreweries.
Technical Specifications
Overview
Professional 200L Craft Brewing Solution
This 200L craft beer brewing system is a complete, professional-grade solution designed for brewpubs, restaurants, and microbreweries. Constructed from high-quality SUS304 stainless steel, the system ensures durability and hygiene while offering precise temperature control for consistent beer quality. Its compact, integrated design maximizes space utilization, making it an ideal choice for small-scale commercial brewing operations and laboratory research.
Core Specifications
Nominal Capacity
200 L
Standard Batch Size
Standard Ingredients
- Malt
- Yeast
- Hops
- Water
- Primary Materials
- SUS304 Stainless SteelFood GradeRed Copper (Optional)

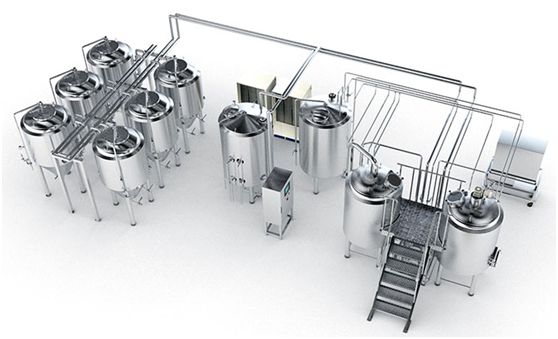

System Components

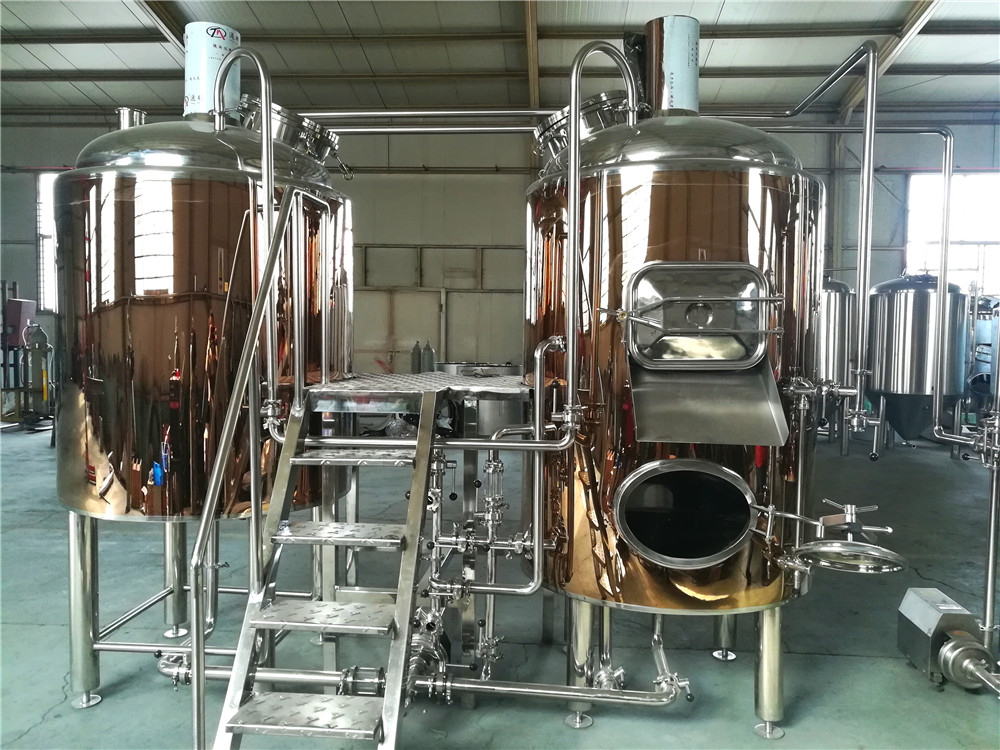

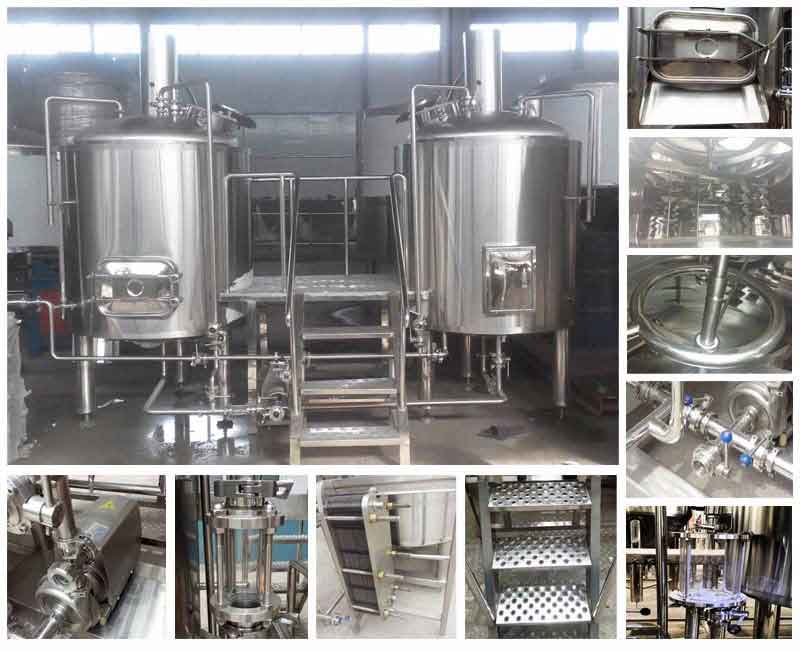

Brewhouse Configuration
- Mash/Kettle Tun
- Lauter/Whirlpool Tun
- Malt Mill Machine
- Wort Pump
- Plate-type Heat Exchanger
Control System Type
- Semi-automatic with digital meters
- Full-automatic with PLC control
Support Systems
| System Name | Specification/Components |
|---|---|
| Chilling System | 2 pieces of refrigeration machine |
| Cleaning System | Stainless steel trolley with 1-2 tanks |
| Heating | Steam generator integration |

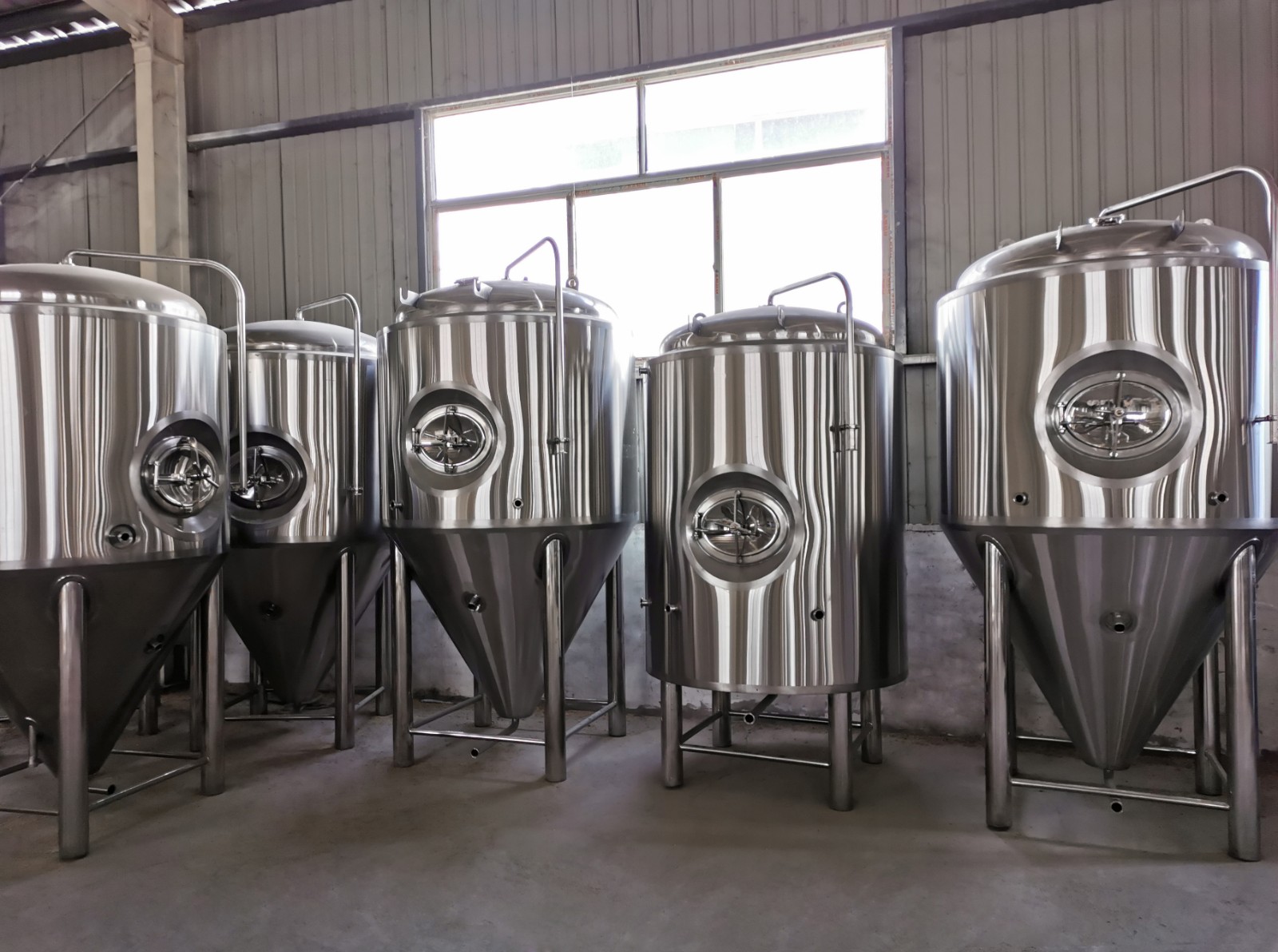

- Fermentation Details
- 6-12 fermenters (standard) or customized quantity
Applications

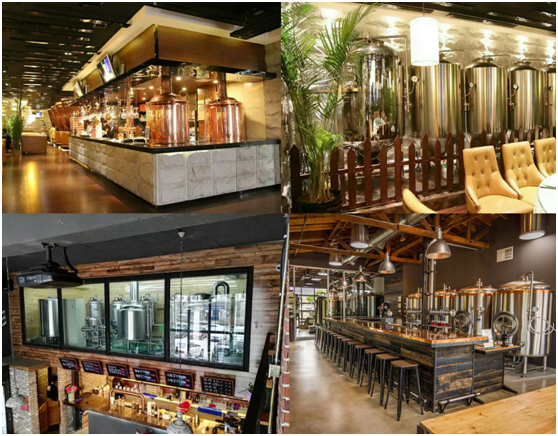

Target Applications
BrewpubRestaurantHotelMicrobreweryLaboratoryTeachingScientific Research
- Supported Beer Styles
- LagerAleStoutBockPorterFruit BeerWheat Beer
Technical Features

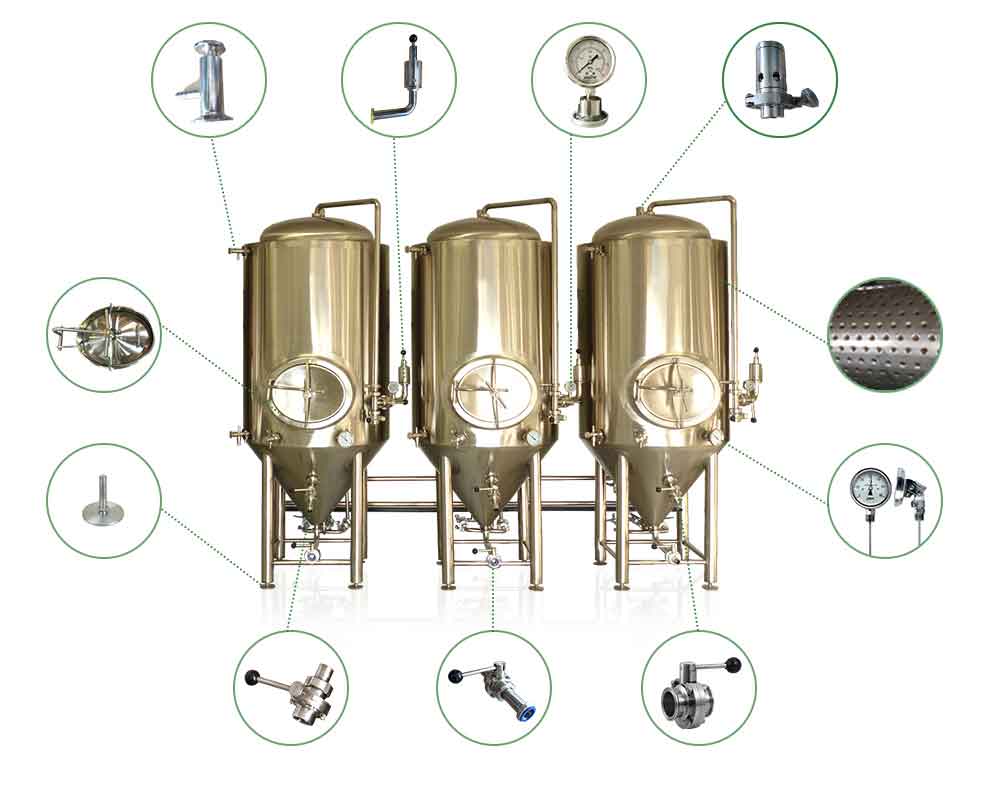

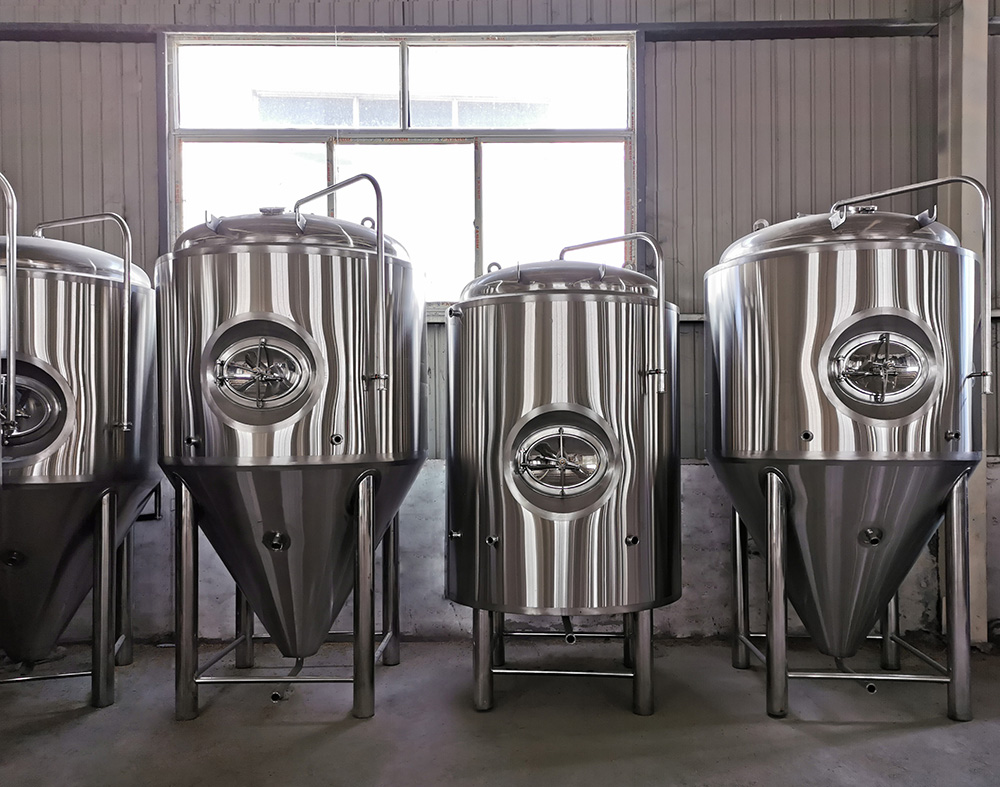

Tank Design Features
- Conical bottom for yeast harvesting
- Side manway for easy cleaning
- Temperature control jackets
- Sight glasses and sample ports
- CIP (Clean-in-Place) system compatibility
