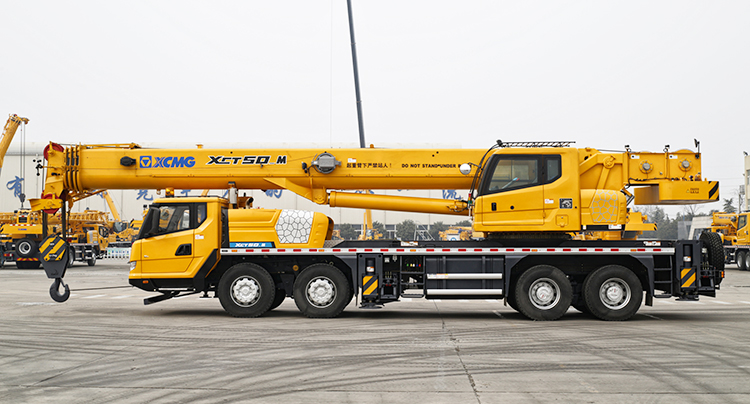

50-Ton Hydraulic Mobile Jib Truck Crane
This 50-ton hydraulic mobile jib truck crane is used for lifting operations on construction sites and in complex working environments. It features high-temperature resistance and can continuously operate in ambient temperatures of 60℃.
Technical Specifications
Overview
High-Performance Hydraulic Truck Crane
The 50-Ton Hydraulic Mobile Jib Truck Crane is engineered for heavy-duty lifting in complex environments, including construction sites, ports, and industrial projects. Featuring a 5-section boom with U-type profile, it provides superior reach and lifting efficiency. The unit is designed for durability in extreme temperatures and incorporates energy-saving hydraulic systems for precise, safe operations.
Key Features
- Technological Advantages
- 360° Continuous SlewingRandom Telescoping ModeHigh Temperature ResistanceEnergy-Saving HydraulicsLow-Speed High-Torque Drive
Performance Metrics
Lifting Performance
50 t
Max Lifting Capacity
43.5 m
Boom Length
0.1 °/s
Min Slewing Speed
Technical Specifications
Dimensions and Mass
| Metric | Value |
|---|---|
| Dimensions (L x W x H) | 14040 x 2790 x 3630 mm |
| Total Vehicle Mass | 40330 kg |
| Axle Load (1st & 2nd) | 16530 kg |
| Axle Load (3rd & 4th) | 23800 kg |
Powertrain
Engine Performance
- Model: W0615.334
- Rated Power: 247 kW @ 2200 rpm
- Max Output Torque: 1350 N.m @ 1100-1600 rpm
