3-Position Push Button Light Switch with Position Indicator

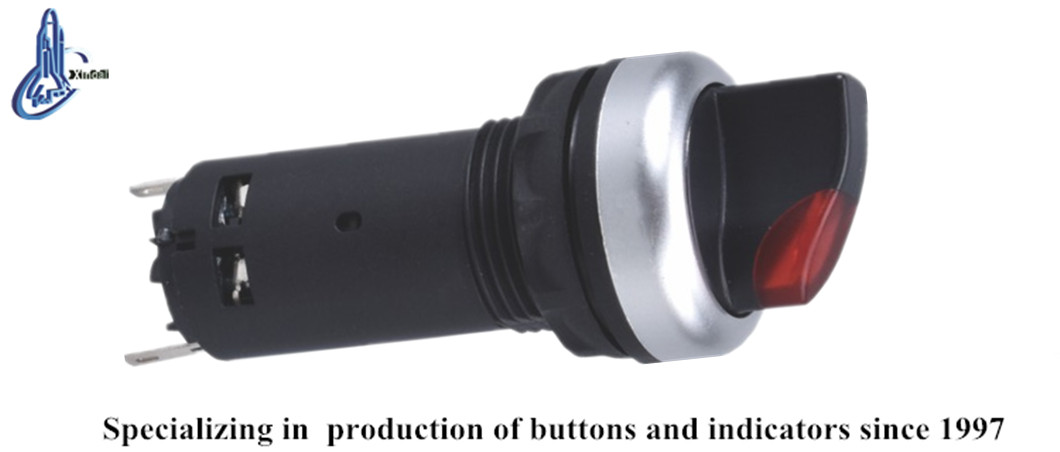

This plastic position indicator features a 3-position push button light switch. It is designed for controlling circuits in AC voltage applications up to 660V.
Technical Specifications
Product Overview
Professional 3-Position Illuminated Switch
The XDL27-CK2465 series 3-position push button light switch is engineered for high-performance control and signal indication in demanding electrical environments. Featuring a robust plastic construction with high-grade anti-flam materials, it ensures durability and safety for various circuit control applications. Its specialized silver alloy contacts provide superior anti-electrical erosion resistance, making it an ideal solution for industrial control panels and distribution systems.
Technical Specifications
Mechanical Life
- Pushbutton: 1,000,000 operations
- Selector switch: 500,000 operations
Electrical Life
- Pushbutton: 5,000,000 operations
- Selector switch: 250,000 operations
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ

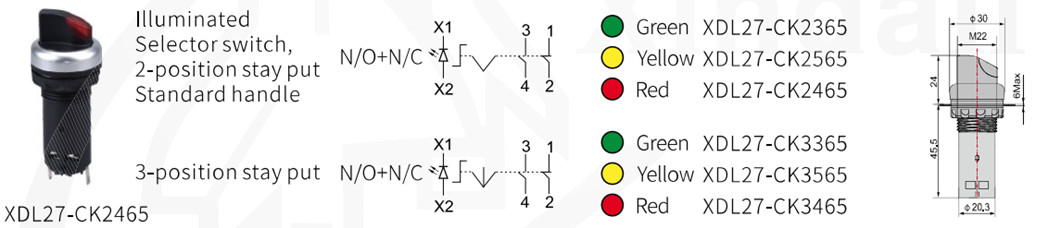

Dimensions and Mounting
Mounting Dimensions
| Attribute | Value |
|---|---|
| Panel Cutout | Ø30 mm |
| Thread Size | M22 |
| Max Panel Thickness | 6 mm |
| Base Diameter | Ø20.3 mm |
| Unit Height | 45.5 mm |
Certifications
- Compliance and Standards
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
