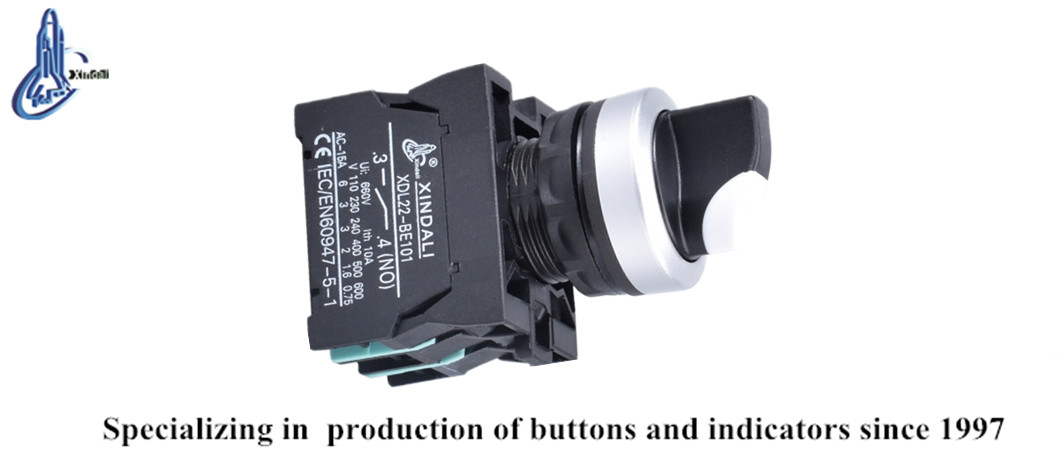

3-Position IP65 Waterproof Push Button Switch
This push button switch is designed for controlling circuits with AC voltage up to 660V. It features a 3-position selector and IP65 waterproof rating for protection against dust and water.
Technical Specifications
Overview
Industrial Control Solution

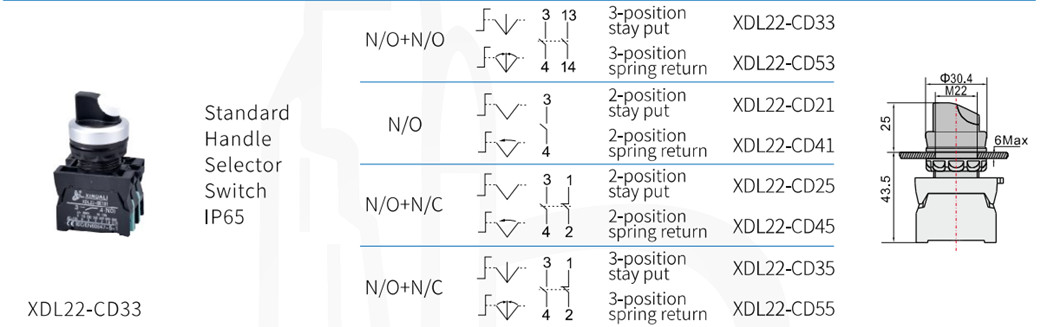

This 3-position selector switch is engineered for demanding industrial environments, featuring a robust construction with high-grade anti-flam plastic and zinc alloy. Designed for versatility, it supports AC circuits up to 660V and DC circuits below 400V, making it ideal for signal control and interlocking applications. Its IP65 rating provides reliable protection against dust and water ingress, while specialized silver alloy contacts ensure high resistance to electrical erosion for long-term operational durability.
Technical Specifications
Mechanical Life
- Pushbutton: 3,000,000 cycles
- Emergency button: 300,000 cycles
- AC Voltage Rating
- Up to 660V (50/60Hz)
- DC Voltage Rating
- Below 400V
- Fastening Torque
- 0.8 Nm
- Pollution Grade
- 3
Environmental Conditions
- Operating Temperature
- -5°C to +55°C
- Storage Temperature
- -25°C to +70°C
- Relative Humidity
- 35% - 85% RH
Compliance & Protection
- Protection Grade
- IP65IP66IP67IP68
- Certifications
- CEISO 9001RoHSULIEC 60947-5-1GB/T 14048.1
Installation Data
Mounting Dimensions
| Parameter | Value |
|---|---|
| Mounting Hole Diameter | 30.4mm |
| Thread Type | M22 |
| Max Panel Thickness | 6mm |
