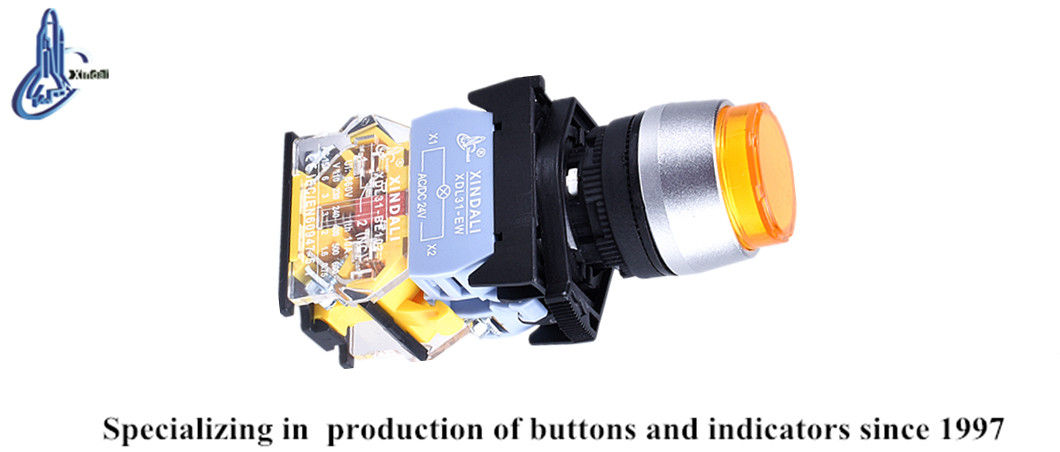

22mm Yellow Convex Head LED Indicator Push Button Switch
This 22mm yellow convex head LED indicator push button switch is used to control circuits. It is ideal for use as an indicating signal, warning signal, and emergency signal.
Technical Specifications
Overview
Industrial Signaling and Control
This 22mm yellow convex head LED indicator push button switch provides a versatile solution for industrial control circuits. Engineered with a durable zinc alloy and anti-flame plastic body, it is designed for demanding environments requiring both reliable switching and high-visibility status indication. The unit adheres to international standards including IEC60947-5-1, ensuring performance consistency in professional applications.
Technical Specifications
- Mounting Diameter
- 22 mm
- Rated Insulation Voltage (Ui)
- 600 V
- Mechanical Life
- 3,000,000 operations
- Protection Grade
- IP40IP54IP65IP66IP67IP68
- Fastening Torque
- 0.8 Nm
Environmental Conditions
- Operating Temperature
- -5°C to +55°C
- Storage Temperature
- -25°C to +70°C
- Air Relative Humidity
- 35-85% RH

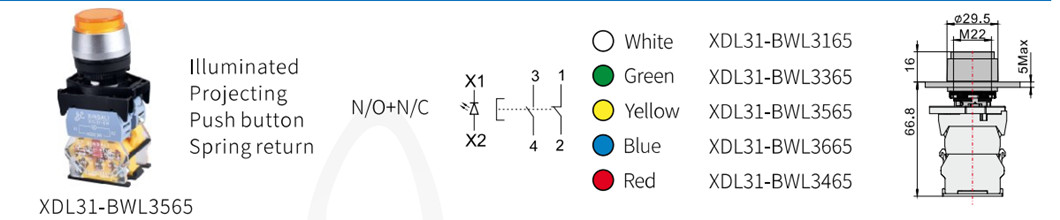

Dimensions
Physical Dimensions
| Feature | Dimension |
|---|---|
| Diameter | 29.5 mm |
| Total Height | 66.8 mm |
| Bezel Height | 16 mm |
| Max Projection | 5 mm |
