Technical Specifications
Overview
Industrial Grade Control

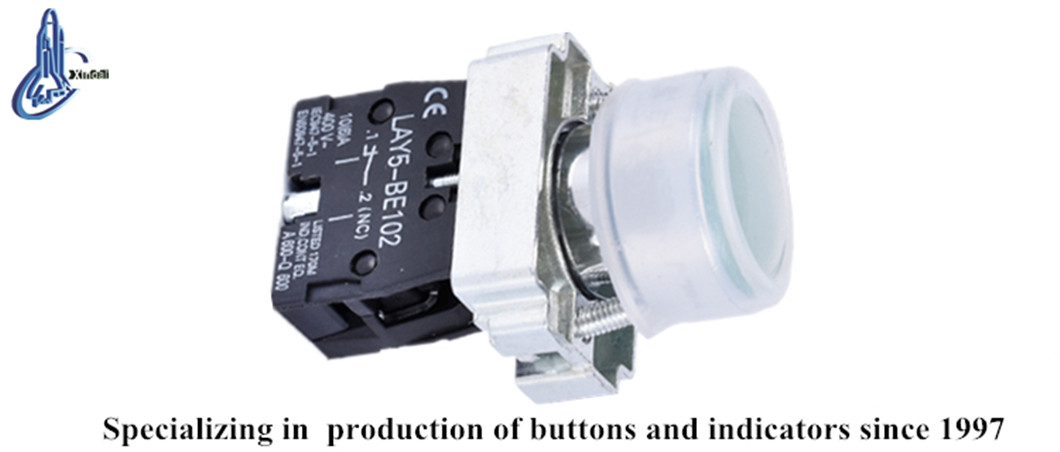

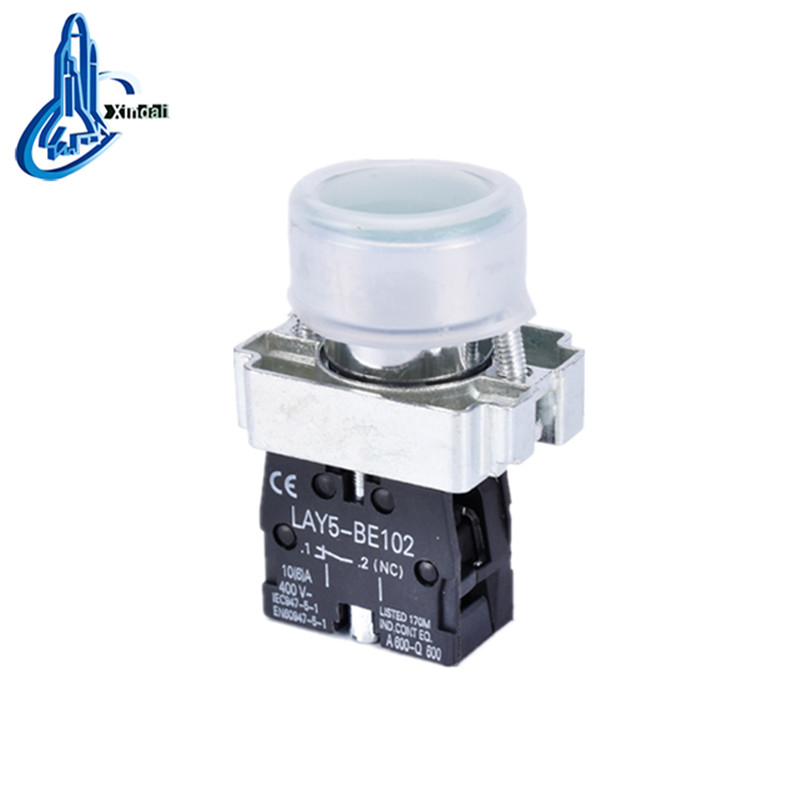

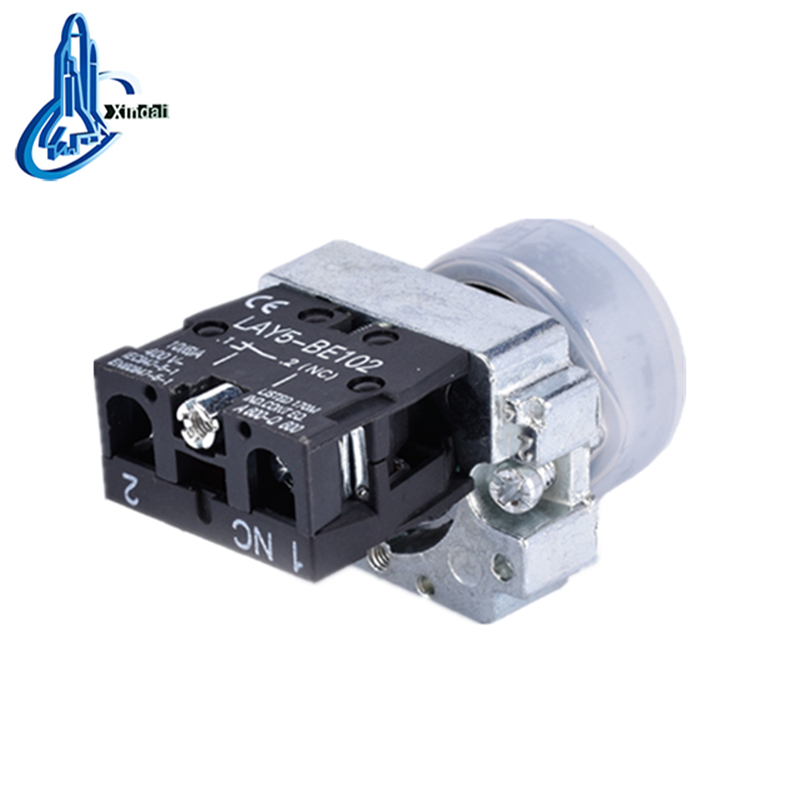

The 22mm waterproof metal push button switch is engineered for demanding industrial environments, featuring a robust zinc alloy and anti-flam plastic construction. Designed for control circuits up to 660V AC or 400V DC, it offers exceptional durability with high-grade silver alloy contacts for superior electrical erosion resistance. The inclusion of a protective cap ensures reliable performance in harsh conditions, making it an ideal choice for elevator control systems and heavy-duty machinery.
- Certifications
- CEISO 9001RoHSUL
Electrical Specifications
Electrical Performance
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Heating Current
- Insulation Resistance
- 50 MΩ
- Contact Resistance
- ≤25mΩ
Mechanical Specifications
Mechanical Life
| Component Type | Cycles |
|---|---|
| Pushbutton | 1,000,000 |
| Selector Switch | 500,000 |

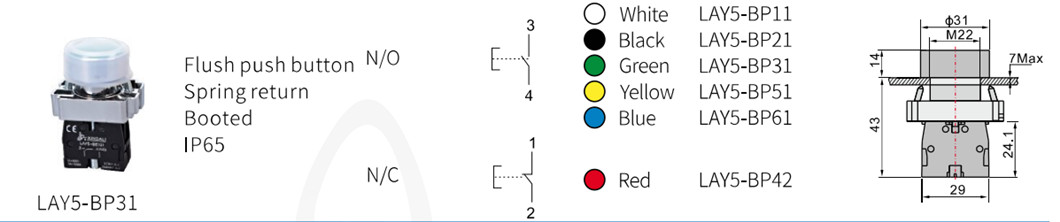

Mounting Dimensions
- Mounting Hole Diameter: 22mm
- Button Diameter: 31mm
- Max Panel Thickness: 7mm
- Overall Height: 43mm
Indicator Lamp Specs
Lamp Performance
- Brightness: 60cd/m2
- Voltage Wave Tolerance: ±20%
- Continuous Working Life: 100,000 hours
- Withstand Voltage: AC 2.5KV/min
Design & Compatibility
Available Colors
WhiteBlackGreenYellowBlueRed
