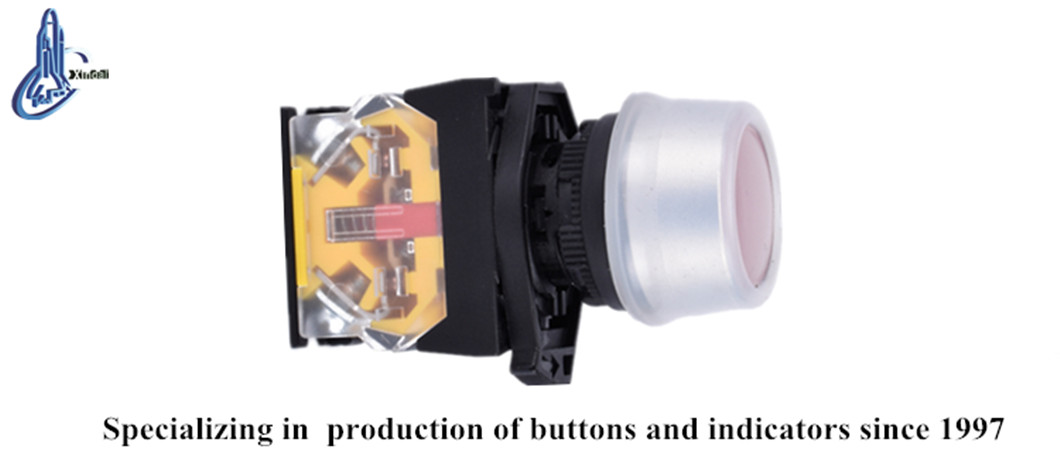

22mm Red Push Button Switch with Spring Return and Rubber Cap
This 22mm push button switch is equipped with a red spring return mechanism and a rubber cap. It is designed for controlling circuits in various applications.
Technical Specifications
Product Overview
High-Performance Industrial Push Button
This 22mm red push button switch is engineered for demanding industrial control environments, featuring a robust spring-return mechanism and a protective rubber cap. Built with high-grade zinc alloy and anti-flame plastics, it ensures reliable electrical contact via specialized silver alloy materials. It is designed for seamless integration into control panels, supporting AC circuits up to 660V and providing long-term operational durability.
Technical Specifications
Fastening Torque
0.8 Nm
Nominal
1.2 Nm
Maximum

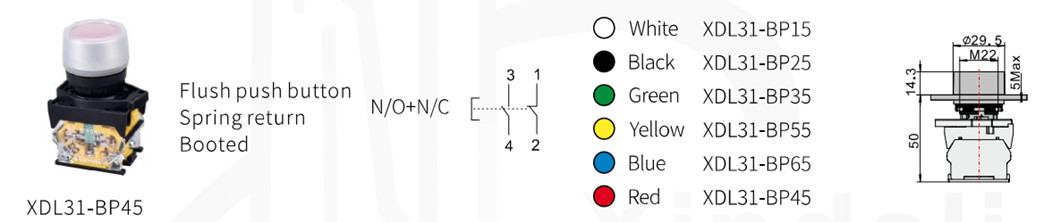

- Mounting Diameter
- 22 mm
- Rated Insulation Voltage (Ui)
- 600 V
- Rated Withstanding Impulse Voltage (Uimp)
- 6 kV
- Pollution Grade
- 3
Environmental Ratings
Protection Grade
IP65IP66IP67IP68
- Operating Temperature
- -5°C to +55°C
- Relative Humidity
- 35% - 85% RH
Durability
Mechanical Life
| Type | Cycles |
|---|---|
| Standard Button | 3,000,000 |
| Emergency Button | 300,000 |
Certifications
- Standards
- IEC60947-5-1GB/T14048.1GB14048.5CEISO9001ROHSUL
