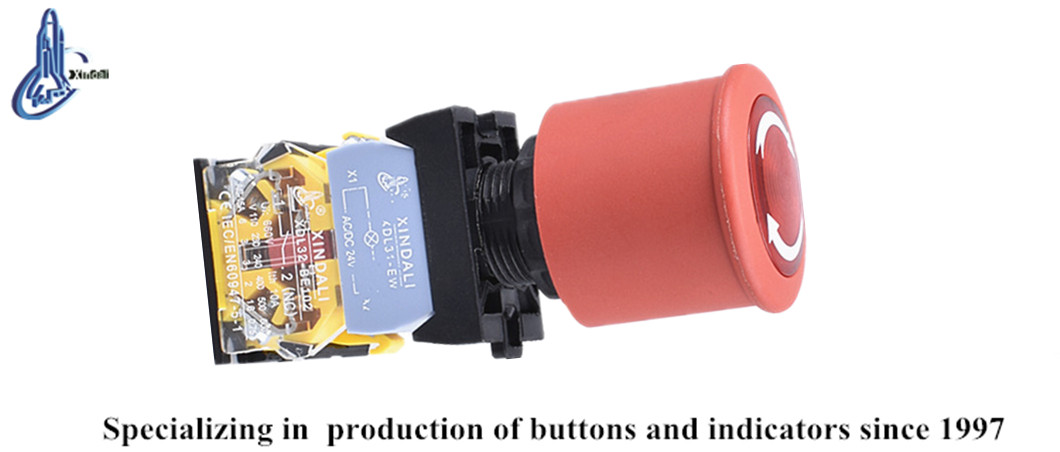

22mm Mushroom Head Emergency Stop Button with LED
This 22mm mushroom head emergency stop button is designed with an LED indicator. It features a twist-to-release mechanism for quick and safe operation in emergency situations.
Technical Specifications
Product Overview
Industrial Emergency Stop Solution
This 22mm mushroom head emergency stop button is designed for critical safety applications in industrial control circuits. It features a reliable LED indicator for status visibility and a twist-to-release mechanism for immediate emergency intervention. Engineered with high-grade zinc alloy and anti-flammable materials, this switch ensures durability and consistent performance in demanding electrical environments.

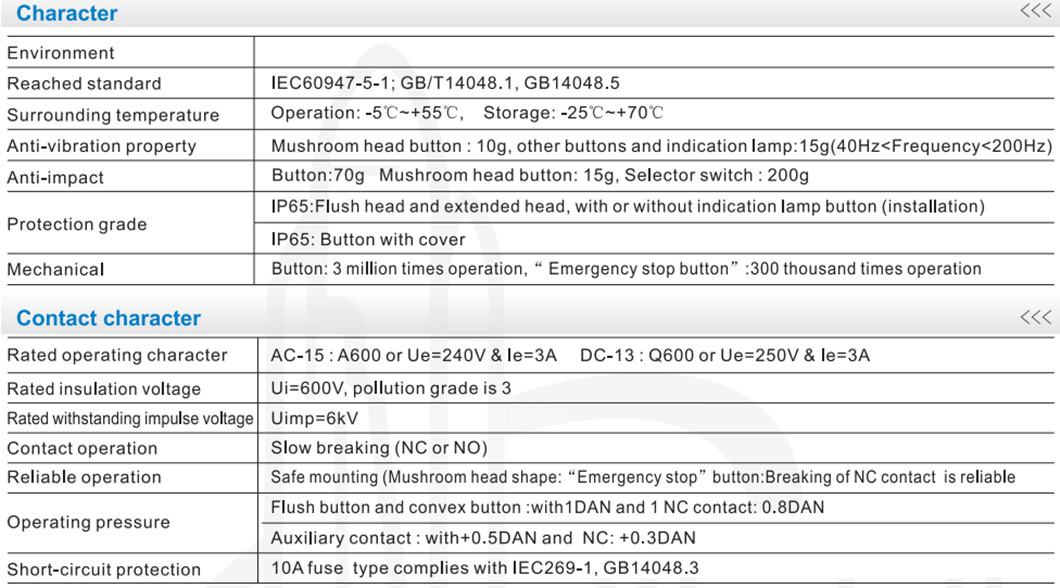

Technical Specifications
Electrical Performance
660 V
Max AC Voltage
400 V
Max DC Voltage
6 kV
Impulse Voltage
Operating Environment
| Parameter | Value |
|---|---|
| Operating Temp | -5°C to +55°C |
| Storage Temp | -25°C to +70°C |
| Humidity | 35-85% RH |
| Pollution Grade | 3 |

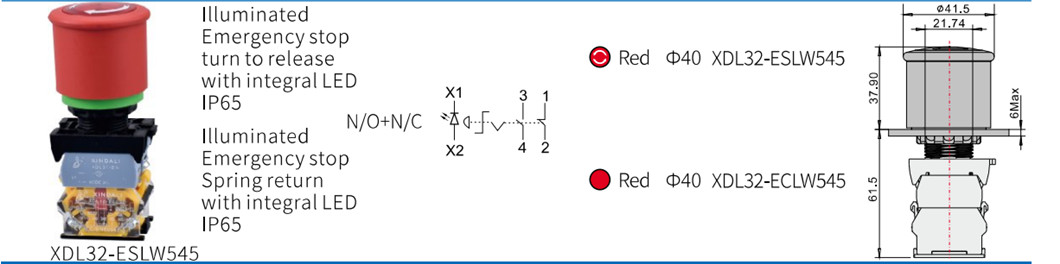

Installation Parameters
- Standard hole diameter: 22mm
- Fastening torque: 0.8Nm (Max 1.2Nm)
- Contact type: Slow-breaking (NC or NO)
- Short-circuit protection: 10A fuse
Durability and Standards
Ingress Protection
IP40IP54IP65IP66IP67IP68
- Mechanical Lifespan
- 300000 operations
- Certifications
- CEISO 9001RoHSUL
