Technical Specifications
Overview

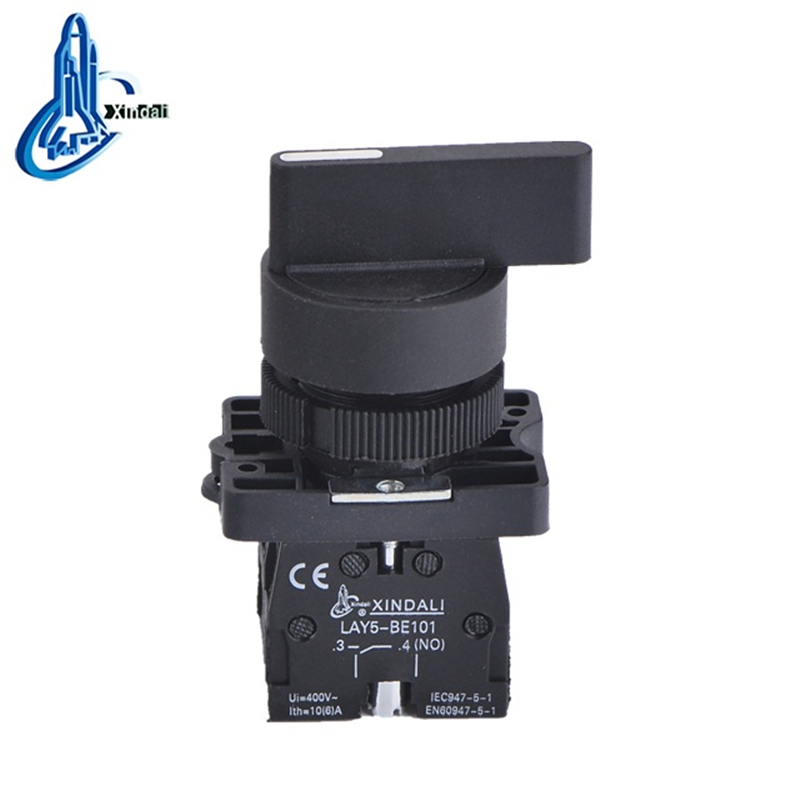

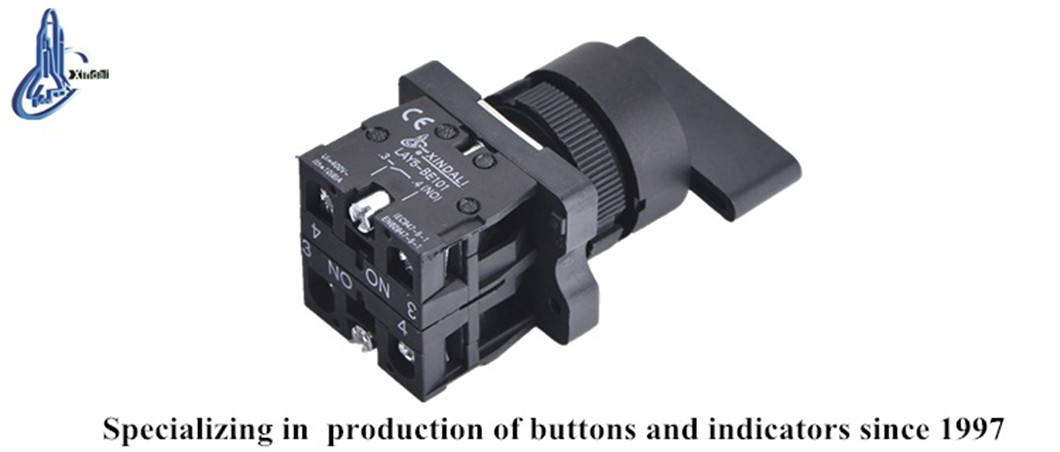

Industrial Control Switch
This 22mm long handle switch is designed for reliable operation in industrial control circuits, including distribution boxes and control cabinets. Constructed with high-grade anti-flam plastic and zinc alloy, it offers durability and efficient performance for manual control, signal indication, and interlocking applications. The unit is engineered to meet rigorous international standards, ensuring safety and compatibility in demanding electrical environments.
- Certifications
- CEISO 9001RoHSULIEC 60947-5-1
Technical Specifications
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ

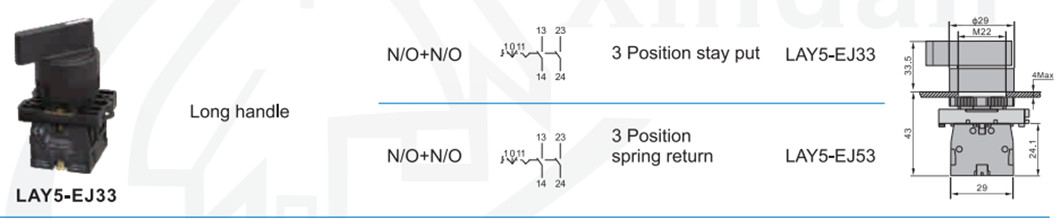

Dimensions & Mounting
Mounting Specifications
| Feature | Value |
|---|---|
| Mounting Hole Diameter | 22mm |
| Handle Height | 33.5mm |
| Body Height | 43mm |
| Base Width | 29mm |
