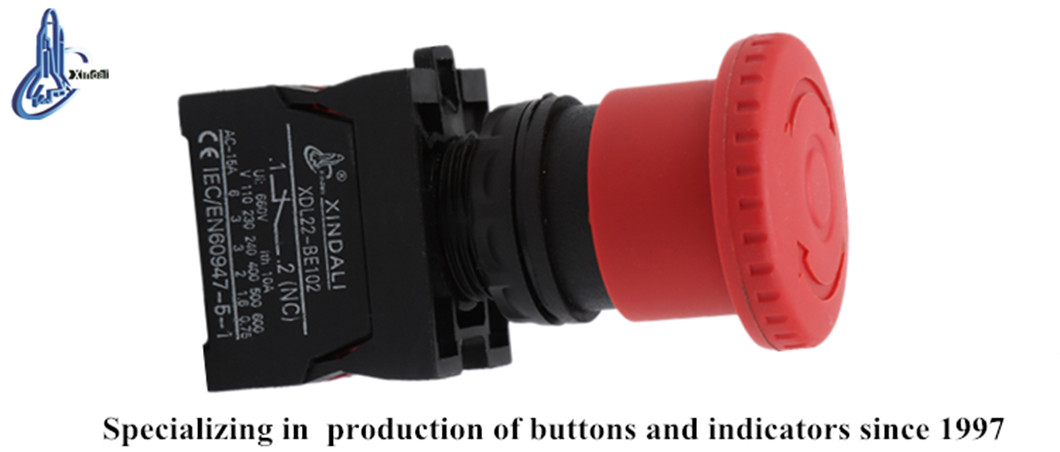

22mm IP67 Waterproof Emergency Stop Push Button Switch
This 22mm emergency stop push button switch is designed with a waterproof IP67 rating. It is suitable for use in controlling circuits with AC voltage up to 660V/AC50Hz or 60Hz and DC voltage below 400V.
Technical Specifications
Product Overview
Industrial Emergency Stop Solution
This 22mm emergency stop push button switch is engineered for robust industrial control, featuring an IP67 waterproof rating for reliable performance in demanding environments. Designed for AC circuits up to 660V and DC circuits below 400V, it incorporates high-grade zinc alloy and flame-resistant plastic for maximum durability. The switch utilizes specialized silver alloy contacts to minimize electrical erosion, ensuring a long mechanical lifespan and consistent safety operation.
Technical Specifications
Electrical Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Thermal Current
Ingress Protection Rating
IP40IP54IP65IP66IP67IP68
Ambient Conditions
- Operating Temperature: -5°C to +55°C
- Storage Temperature: -25°C to +70°C
- Humidity Range: 35-85% RH
- Pollution Grade: 3

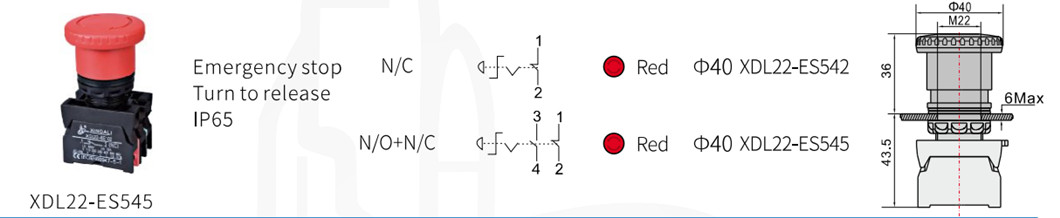

Mechanical Specs
| Metric | Value |
|---|---|
| Mounting Diameter | 22mm |
| Fastening Torque | 0.8Nm (Max 1.2Nm) |
| Installation Class | Class III |
Compliance & Standards
International Standards
- IEC60947-5-1
- GB/T14048.1
- GB14048.5
- IEC 68-2-6 (Vibration)
- IEC 68-2-27 (Impact)
- Certifications
- CEISO9001RoHSUL
