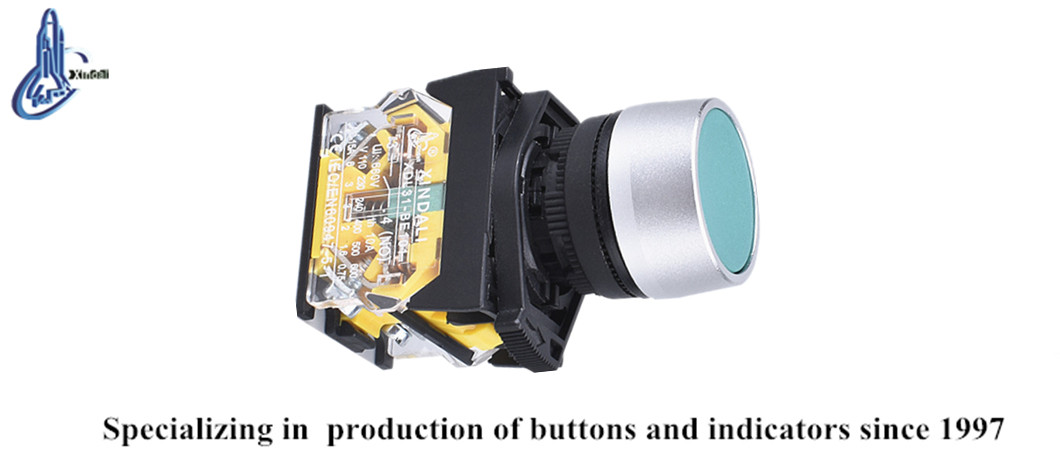

22mm Green Metal Push Button Switch with Spring Return
This 22mm green metal switch features a spring return push button. It is designed for controlling circuits with AC voltage up to 660V and DC voltage below 400V.
Technical Specifications
Overview
Professional Grade Push Button Switch
This 22mm green metal push button switch is engineered for high-performance industrial control circuits. Featuring a durable zinc alloy and high-grade anti-flam plastic construction, it offers excellent longevity and electrical erosion resistance. The spring-return mechanism provides reliable operation, making it an ideal choice for signal and interlocking applications in demanding electrical environments.
Technical Specifications
Electrical Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Rated Insulation

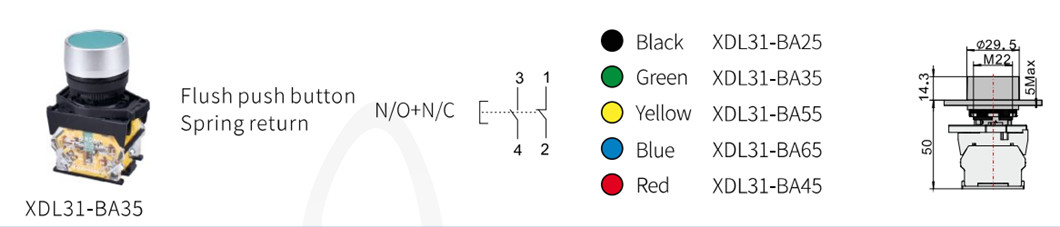

Mounting Dimensions
| Feature | Value |
|---|---|
| Mounting Thread | M22 |
| Button Diameter | 29.5mm |
| Panel Thickness | 5mm Max |
| Total Height | 50mm |
- Mechanical Life
- 3000000 cycles
Environmental Ratings
- Protection Rating
- IP65IP66IP67IP68
- Temperature Range
- -5°C to +55°C (Operating)
Compliance
- Certification & Standards
- IEC60947-5-1GB/T14048.1CEULROHSISO9001
