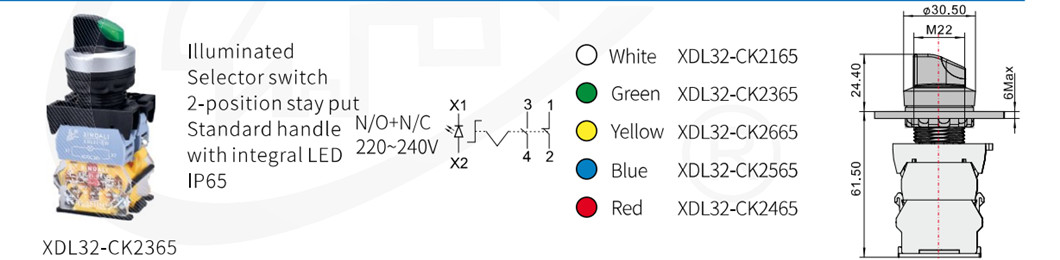

22mm Green LED Push Button Selector Switch
This 22mm push button selector switch is equipped with a green LED position lamp. It is designed for controlling signal and interlocking purposes in electrical applications.
Technical Specifications
Overview
Industrial Push Button Selector Switch
The 22mm green LED selector switch is a robust control component designed for demanding industrial environments. Featuring high-grade anti-flam plastic and zinc alloy construction, it provides reliable operation for electrical circuits up to 660V. With integrated LED signaling and IP65 protection, it ensures clear visual status and durability for signal, control, and warning applications in automation systems.

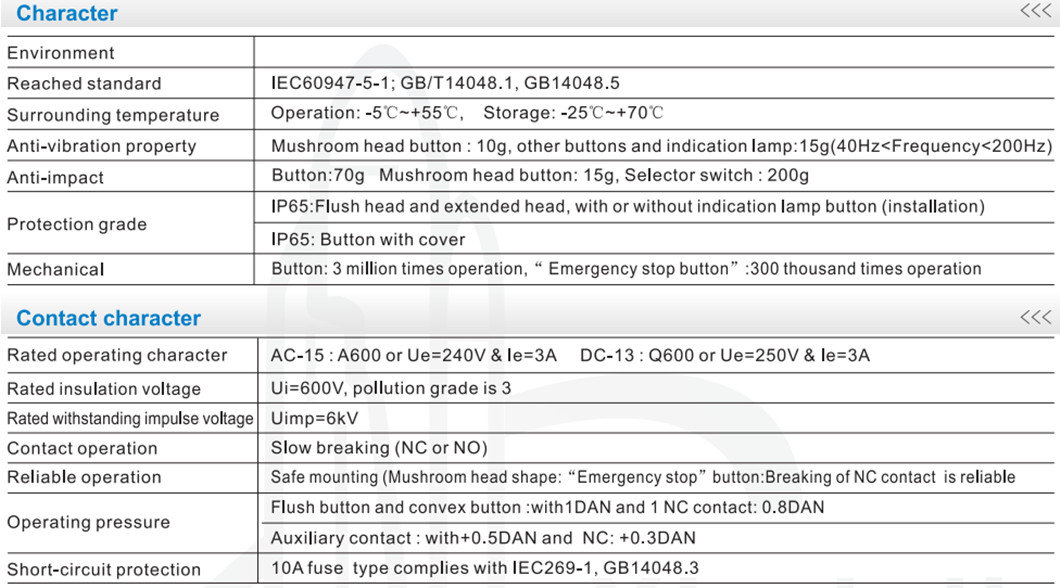

Technical Specifications
- Rated Insulation Voltage
- 600 V
- Rated Withstanding Impulse Voltage
- 6 kV
- Short-Circuit Protection
- 10A fuse (IEC269-1, GB14048.3)
- Contact Operation
- Slow breaking (NC or NO)
Environmental Performance
- Operating Temperature
- -5°C to +55°C
- Relative Humidity
- 35-85% RH
- Pollution Grade
- 3
Certifications & Compliance
- Industry Standards
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
Mechanical Data
Protection Rating
IP65IP66IP67IP68
Mechanical Life
3,000,000 ops
Standard Button
300,000 ops
Emergency Button
- Max Fastening Torque
- 1.2 Nm
