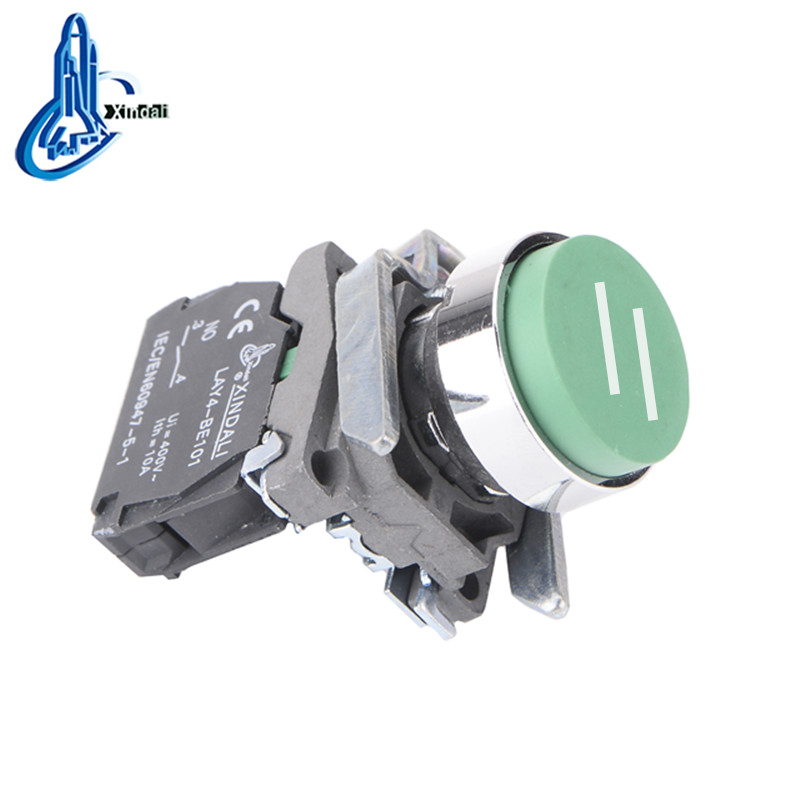

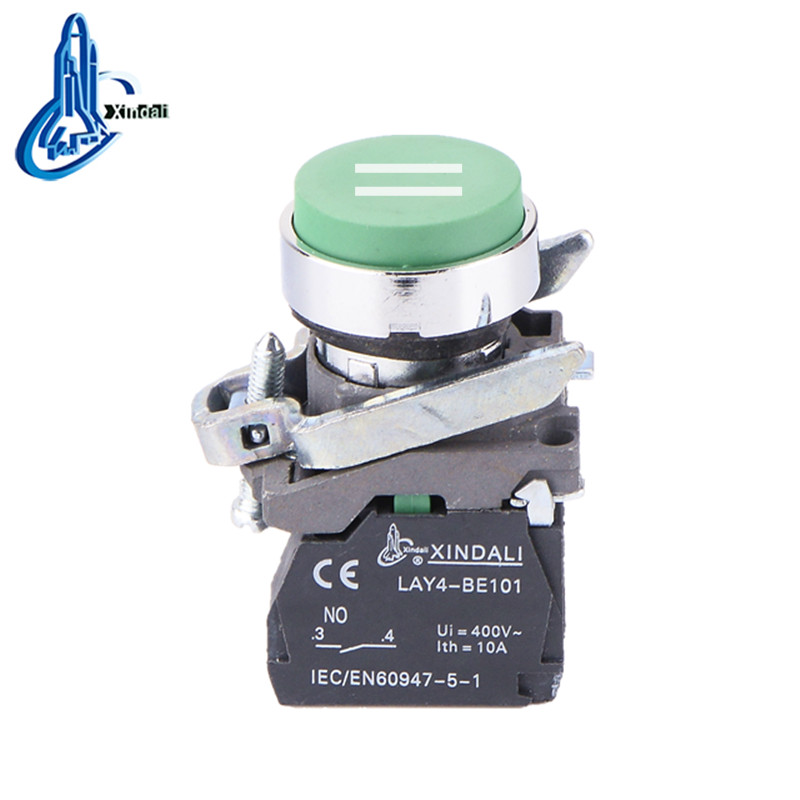

22mm Green Convex Push Button Switch
This 22mm convex push button switch features a green button. It is designed for controlling circuits in industrial applications.
Technical Specifications
Overview
Industrial Convex Push Button Switch
This 22mm convex push button switch is engineered for robust performance in industrial control circuits. Featuring a high-grade zinc alloy and anti-flammable plastic construction, it ensures durability and safety in demanding environments. The switch is designed for reliable operation in both AC and DC circuits, making it an ideal choice for control panels, signal indication, and interlocking applications.
Technical Specifications
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch

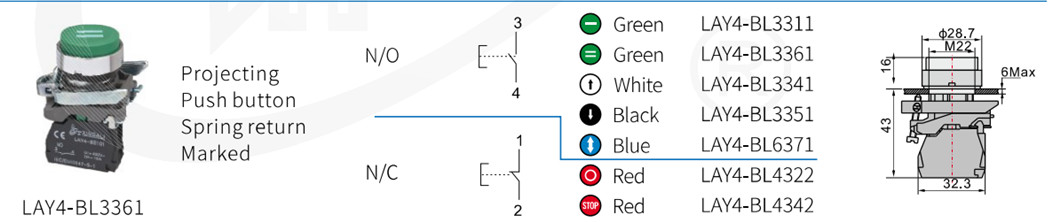

- Mounting Diameter
- 22 mm
- Rated Insulation Voltage (Ui)
- 400 V
- Conventional Heating Current (Ith)
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Compliance & Standards
Certifications
CEISO 9001RoHSUL
- International Standards
- GB/T14048.1IEC60947-5-1
Design & Materials
Construction Materials
- Zinc alloy main body
- High-grade anti-flammable plastic
- Special silver alloy contacts
- Button Color
- Green
- Button Style
- Convex
