22mm Double Head Push Button Switch - On/Off, PC Industrial
This 22mm double head push button switch is designed for on/off control in industrial applications. It features a robust PC construction suitable for various voltage levels.
Technical Specifications
Product Overview

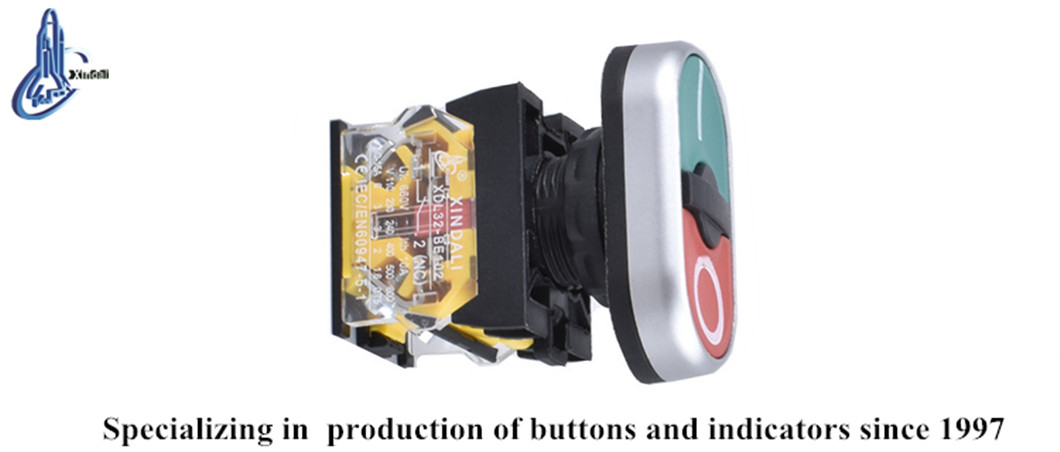

Industrial Double Head Push Button

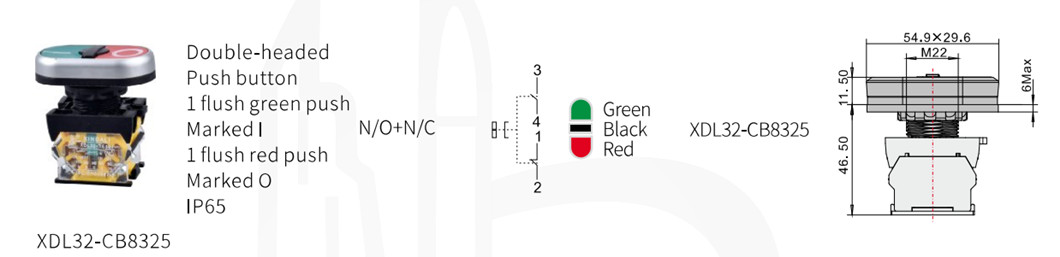

This 22mm double-head push button switch provides reliable circuit control for industrial machinery. Featuring a green 'I' button and a red 'O' button, it is designed for demanding environments with high impact and vibration resistance. The unit is constructed with high-grade materials to ensure long-term performance and includes both normally open (NO) and normally closed (NC) contacts.
Technical Specifications
Electrical Ratings
600 V
Rated Insulation Voltage
10 A
Rated Thermal Current
6 kV
Impulse Voltage
Environmental Conditions
| Condition | Range/Value |
|---|---|
| Operating Temp | -5°C to +55°C |
| Storage Temp | -25°C to +70°C |
| Humidity | 35-85% RH |
| Pollution Grade | 3 |
Mechanical Characteristics
IP Rating
IP65IP66IP67IP68
Mechanical Lifespan
- Standard Button: 3,000,000 operations
- Emergency Button: 300,000 operations
Compliance and Standards
- Certifications
- CEISO9001RoHSULIEC60947-5-1
