220V Waterproof LED Illuminated Mini Push Button Switch

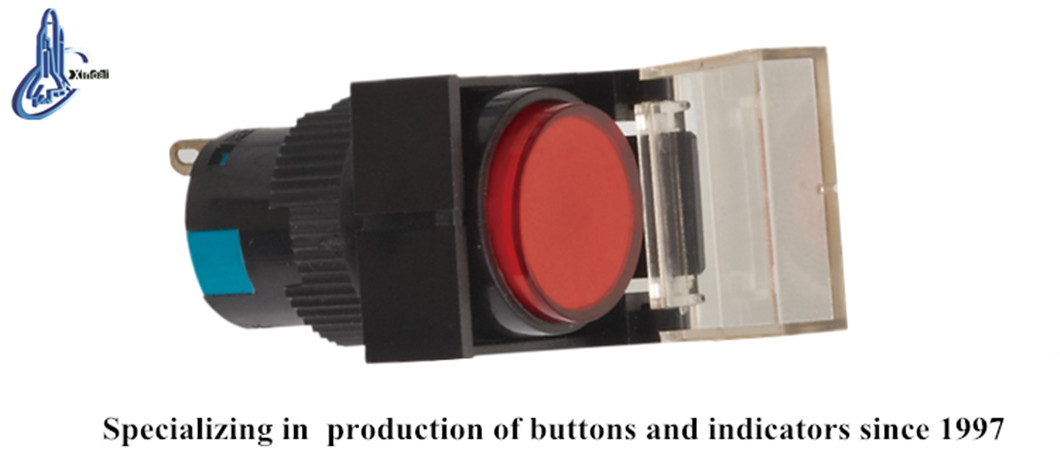

This 220V mini push button switch features integrated LED illumination and a waterproof design. It is suitable for use in control panels, machinery, and other electrical equipment.
Technical Specifications

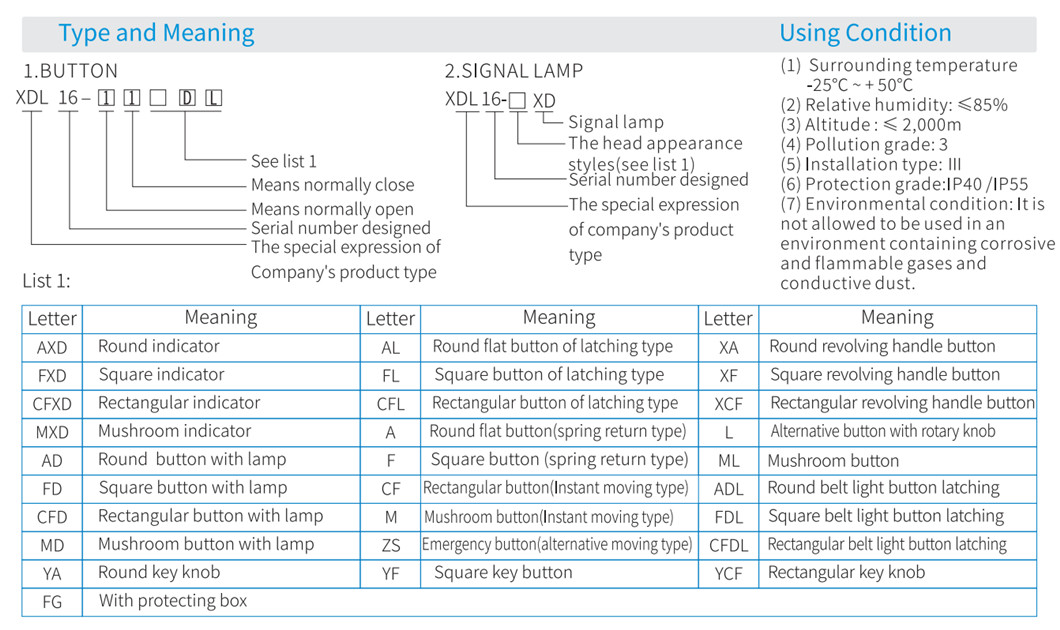

Overview
Industrial Push Button Series
The XDL16-11ADFG is a professional-grade mini push button switch designed for reliable control in demanding industrial environments. Featuring integrated LED illumination and a robust, waterproof design, it is ideal for control panels, machinery, and power distribution systems. Built with high-grade anti-flame plastics and silver alloy contacts, this switch ensures long-term performance and high electrical endurance.
Electrical Specifications
- Rated Voltage
- 220V AC
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Withstand Voltage
- AC 2.5KV/min
Performance Metrics
Operational Metrics
1,000,000 Cycles
Mechanical Life
5,000,000 Cycles
Electrical Life
60 cd/m2
LED Brightness
Operating Environment
Conditions
- Temperature range: -25°C to +50°C
- Relative humidity: <85%
- Altitude: <2,000m
- Pollution grade: 3
- Installation type: III
Standards and Certifications
- Compliances
- CEISO9001RoHSULIEC60947-5-1GB/T14048.1
Mechanical Details

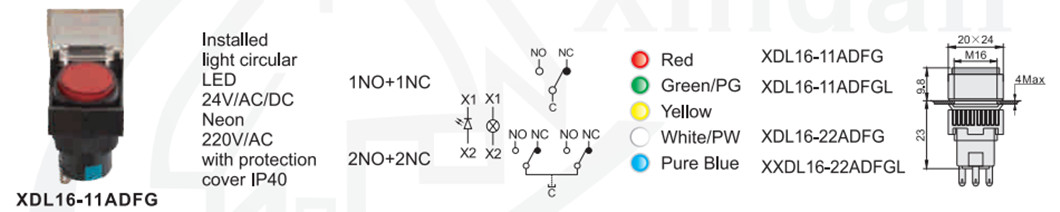

Dimensions
| Parameter | Value |
|---|---|
| Mounting Hole | M16 |
| Front Diameter | 20mm |
| Body Height | 23mm |
| Protection Grade | IP40/IP55 |
