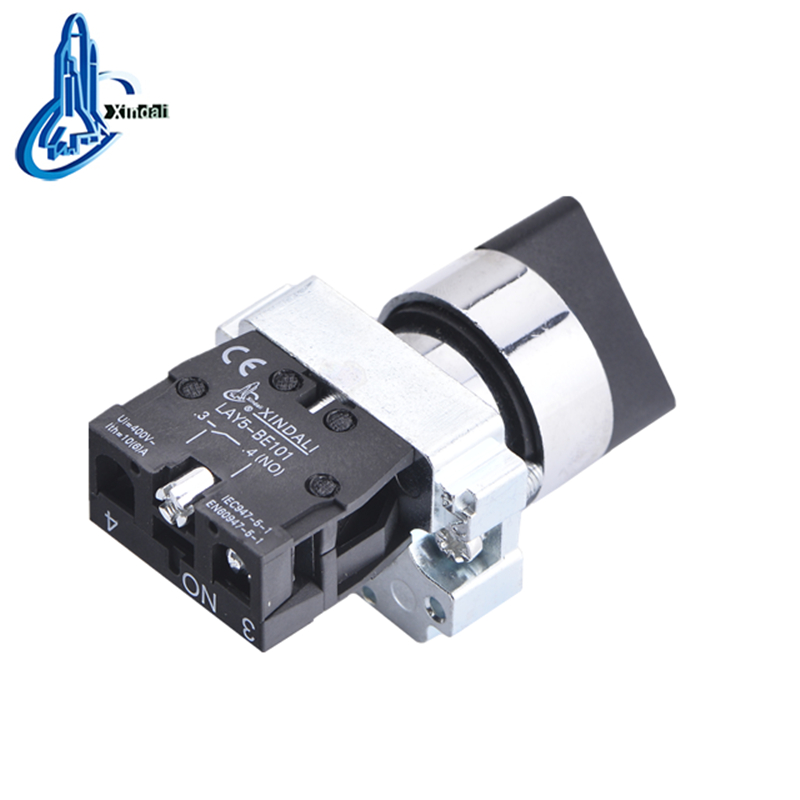

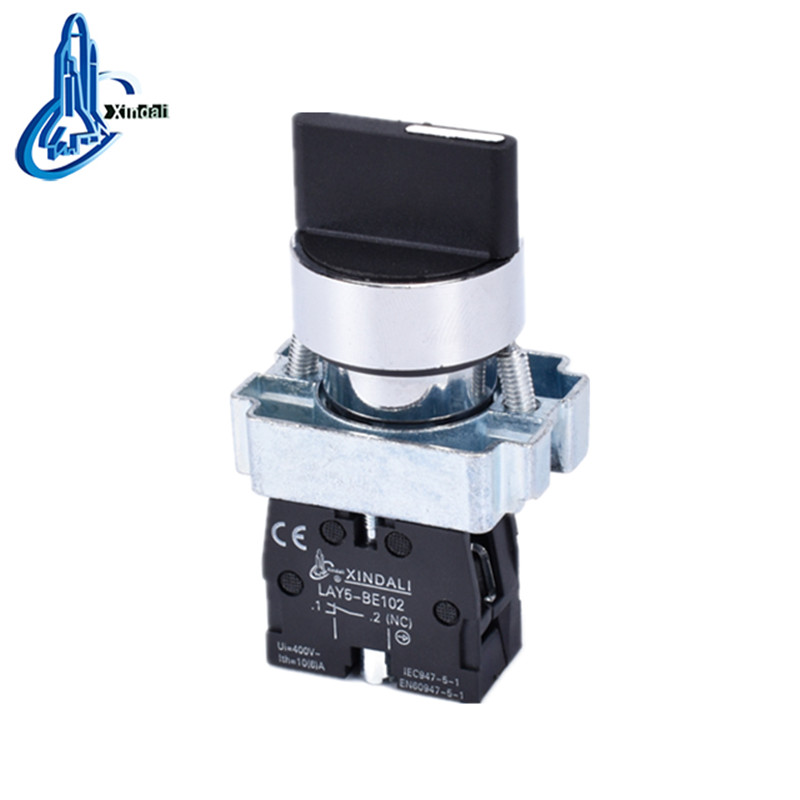

220V 3-Position Metal Push Button Selector Switch
This metal push button switch features a 3-position selector mechanism for versatile control. Rated for 220V operation, it ensures reliable performance in demanding environments.
Technical Specifications
Overview
Industrial Selector Switch
This 3-position metal selector switch is engineered for demanding industrial control circuits, supporting AC voltages up to 660V and DC voltages below 400V. Built with a durable zinc alloy body and high-grade anti-flame plastic, it features silver alloy contacts designed for high resistance to electrical erosion. Compliant with international safety standards including IEC60947-5-1, this switch is an ideal component for control panels, machinery, and electrical distribution systems requiring reliable signal and interlocking capabilities.
Technical Specifications
- Rated Insulation Voltage
- AC 600V (50Hz/60Hz)
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- PF Withstand Voltage
- AC 2.5KV/min
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Certifications & Standards
- Standards & Certifications
- CEISO 9001RoHSULIEC 60947-5-1GB/T 14048.1

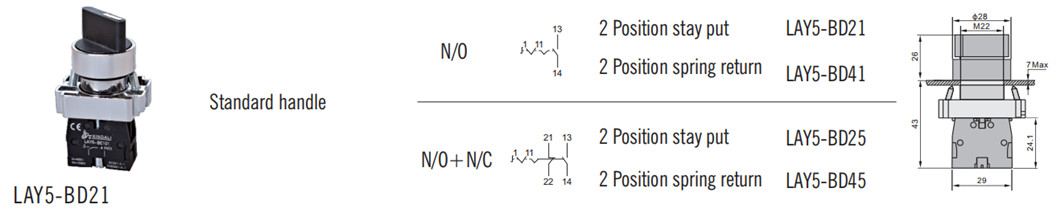

Dimensions & Mounting
Mounting Specifications
| Parameter | Value |
|---|---|
| Panel Cutout | φ28mm (M22 thread) |
| Height Above Panel | 26mm |
| Max Panel Thickness | 7mm |
| Total Height | 43mm |
| Base Width | 29mm |
