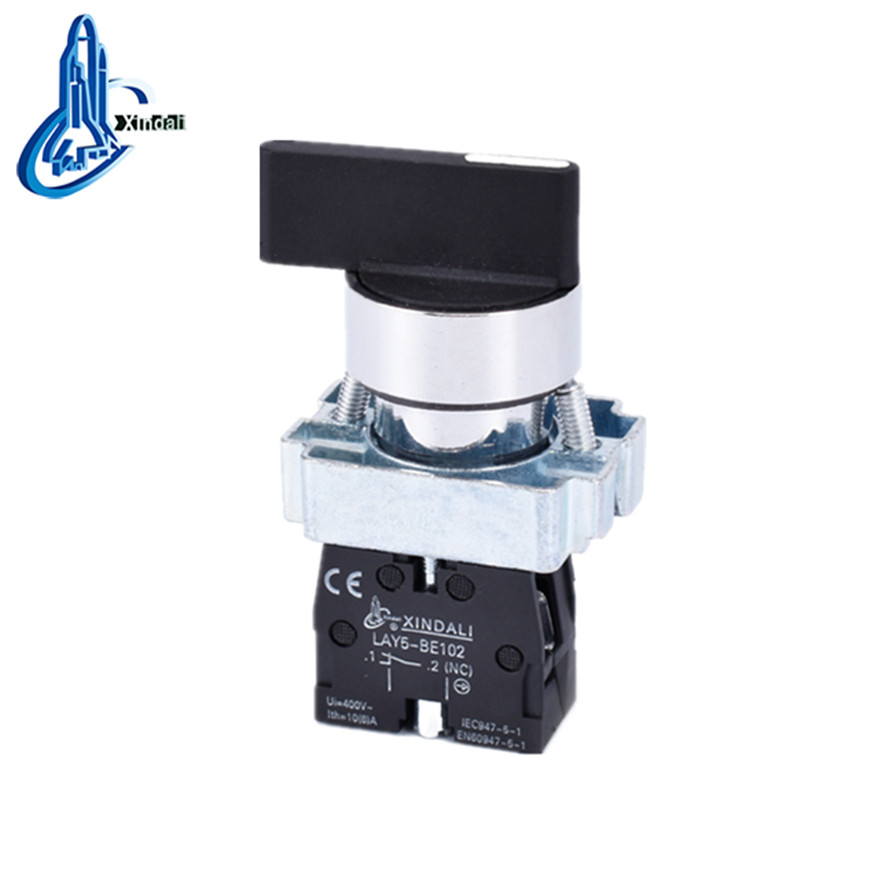

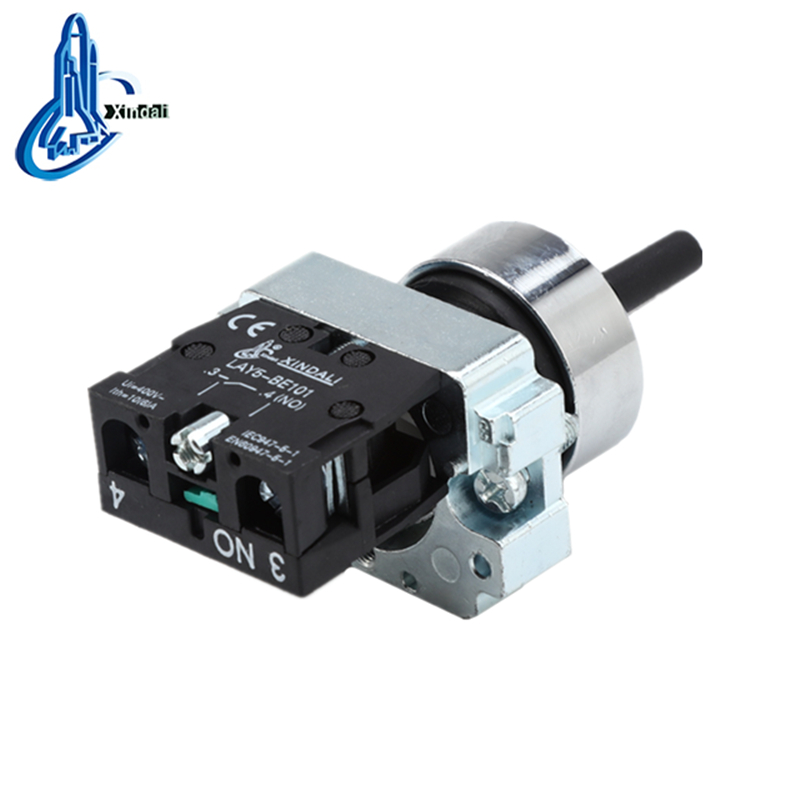

2-Position Push Button Switch with Handle Return Spring
This 2-position push button switch features a handle return spring mechanism. It is designed for electrical power applications, providing reliable control with a spring-return function after actuation.
Technical Specifications
Product Overview
Industrial Control Switch
This 2-position rotary selector switch features a robust handle return spring mechanism designed for reliable electrical circuit control. Built with high-grade anti-flame plastic and zinc alloy, it ensures durability in demanding industrial environments. The switch is engineered for versatility, supporting AC voltage up to 660V and DC voltage below 400V, making it ideal for controlling signals, interlocking, and various electrical appliance circuits.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch

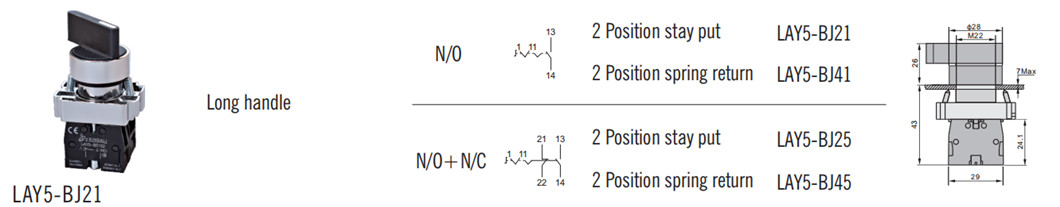

Dimensions & Mounting
Mounting Specifications
| Parameter | Value |
|---|---|
| Mounting Hole | M22 |
| Outer Diameter | 28mm |
| Max Panel Thickness | 7mm |
| Total Height | 43mm |
| Handle Height | 26mm |
Certifications
- Certifications & Standards
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
