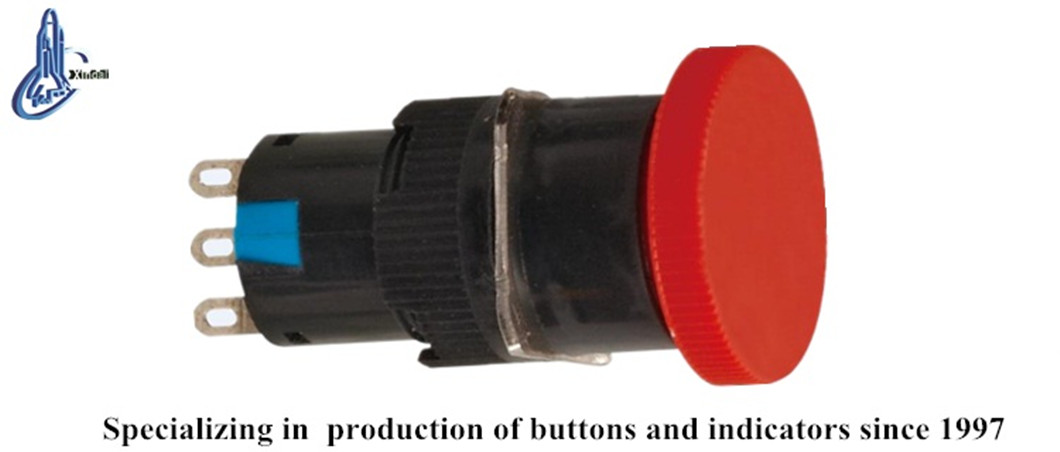

16mm Mushroom Reset Emergency Push Button Switch
This 16mm mushroom reset button is an emergency stop push button switch. It features a 16mm mounting diameter and is available in multiple colors.
Technical Specifications
Product Overview
Industrial Emergency Reset Button

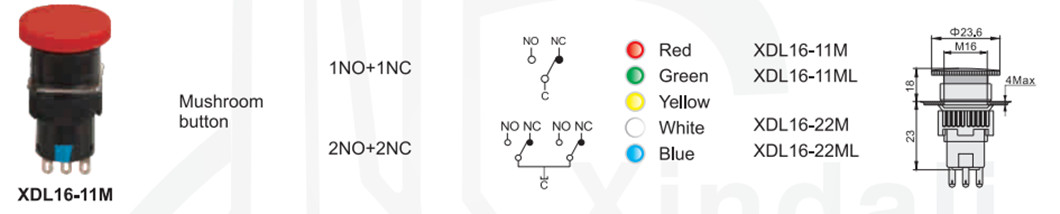

The XDL16-11M is a high-performance 16mm mushroom-head push button switch engineered for critical control circuits and emergency stop applications. Constructed with zinc alloy and high-grade anti-flam materials, it features silver alloy contacts to minimize electrical erosion and ensure long-term reliability. This versatile series is compliant with international standards, making it an ideal choice for distribution cabinets, machinery control panels, and communication networks.
Technical Specifications
Featured Metrics
660 V
Rated Insulation Voltage
10 A
Conventional Heating Current
2.5 kV
Withstand Voltage
60 cd/m2
Lamp Brightness
Environment
- Operating temperature: -25°C to +50°C
- Relative humidity: < 85%
- Altitude: < 2,000m
- Protection grade: IP40/IP55
- Pollution grade: 3
Performance Lifecycle
| Parameter | Pushbutton | Selector Switch |
|---|---|---|
| Mechanical Life | 1,000,000 cycles | 500,000 cycles |
| Electrical Life | 5,000,000 cycles | 250,000 cycles |
Certifications & Standards
- Certifications
- CEISO 9001ROHSULGB/T14048.1IEC60947-5-1
