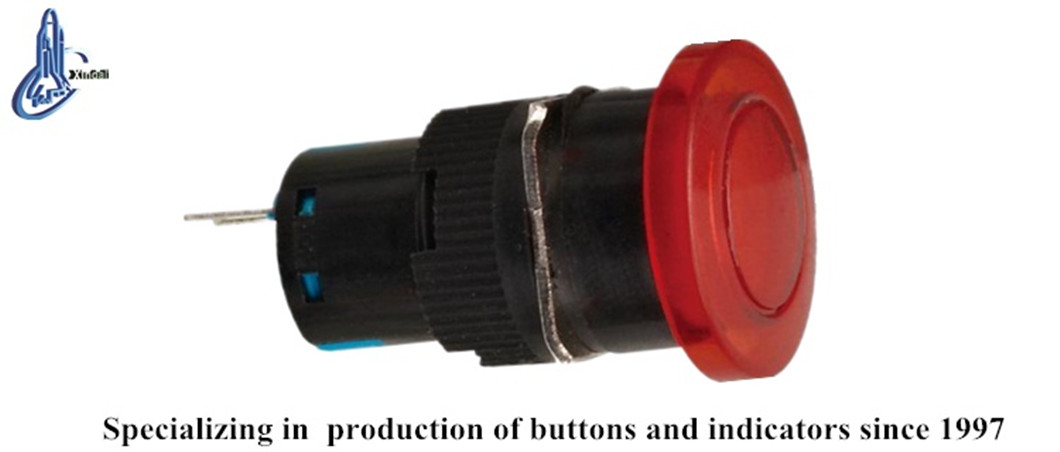

16mm Mushroom Head Emergency Reset Push Button Switch
This 16mm mushroom reset button is designed for emergency push-button applications. It features a red mushroom-shaped actuator for easy activation in emergency situations.
Technical Specifications
Product Overview
Industrial Emergency Control Solution
The XDL16-11MD is a reliable 16mm mushroom head push button switch engineered for emergency stop and reset operations in industrial control circuits. It features a robust zinc alloy and anti-flame plastic construction with high-grade silver alloy contacts for excellent electrical durability. Compliant with international IEC standards, this switch is suitable for a wide range of control, signaling, and interlocking applications.
Electrical Ratings
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Performance Metrics
- Mechanical Life (Pushbutton)
- 1000000
- Electrical Life (Pushbutton)
- 500000
- Insulation Resistance
- ≥50MΩ
Operating Environment
- Operating Temperature
- -25°C to +50°C
- Protection Grade
- IP40IP55
- Relative Humidity
- ≤85%

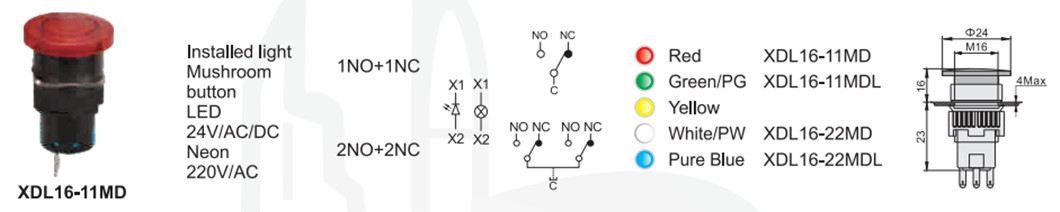

Physical Specifications
- Mounting Hole Diameter
- 16 mm
- Face Diameter
- 24 mm
Compliance
Certifications
CEISO9001RoHSUL
