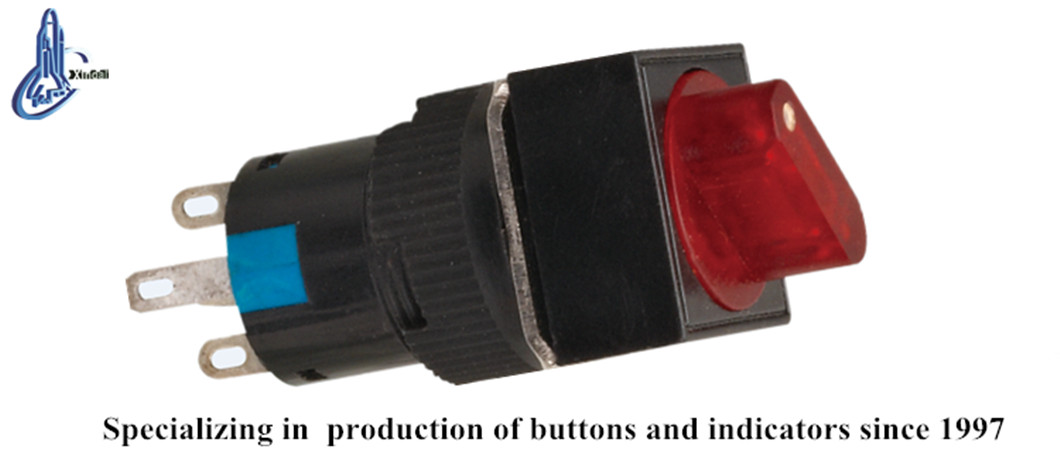

16mm Illuminated Plastic Push Button Switch
This 16mm illuminated push button switch is made of plastic. It is suitable for use in controlling circuits of AC voltage up to 660V and DC voltage below 400V.
Technical Specifications
Overview
Compact 16mm Illuminated Control Solution
This 16mm illuminated push button switch is designed for high-performance control and signal indication in diverse electrical environments. Built with high-grade anti-flame plastic and premium silver alloy contacts, it offers excellent resistance to electrical erosion and long-term operational reliability. It is perfectly suited for use in distribution cabinets, control panels, and communication networks where clear status visualization and robust switching are required.
Electrical Ratings
Rated Insulation Voltage
600 V
AC Voltage
- Conventional Heating Current
- 10 A
- Insulation Resistance
- >= 50 MΩ
Technical Specs
Mechanical Life
- 1,000,000 cycles (Pushbutton)

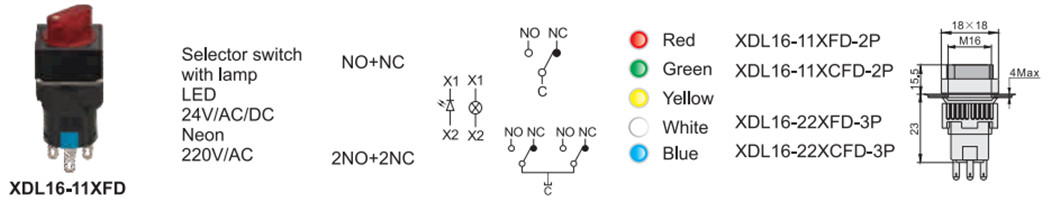

- 500,000 cycles (Selector Switch)
- Protection Ratings
- IP40IP55
Environmental Conditions
- Operating Temperature
- -25°C to +50°C
- Relative Humidity
- < 85%
Compliance
Certifications
CEISO 9001RoHSUL
- Compliance Standards
- GB/T 14048.1IEC 60947-5-1
