Technical Specifications
Product Overview
Industrial Push Button Series

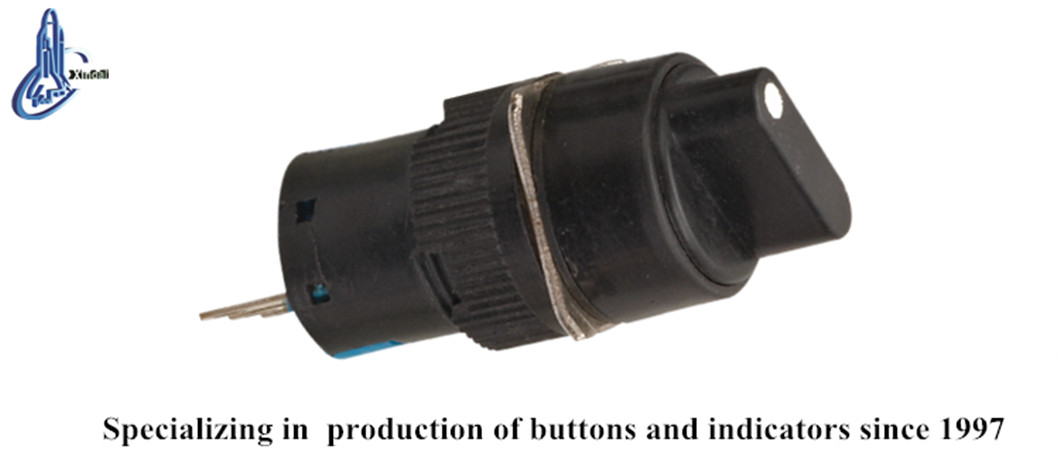

The XDL16-11XA push button series is engineered for high-performance control applications in electrical circuits up to 660V AC. Constructed with durable high-grade anti-flame plastic and professional-grade silver alloy contacts, it ensures long-term operational reliability and electrical erosion resistance. These switches are ideal for signal control, interlocking, and warning applications in diverse industrial environments like control cabinets and power stations.
Electrical Specifications
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Contact Resistance
- ≤25mΩ
- Insulation Resistance
- ≥50MΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Mechanical Performance
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch

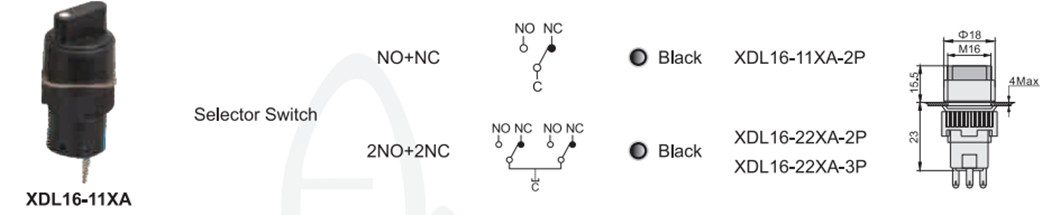

Installation Dimensions
- Mounting hole diameter: 16mm
- Overall diameter: 18mm
- Max thickness: 4mm
Environmental Conditions
Environmental Requirements
- Operating temperature: -25°C to +50°C
- Relative humidity: <85%
- Altitude: <2,000m
- Pollution grade: 3
- Protection grade: IP40/IP55
- Compliance & Certifications
- CEISO9001RoHSULIEC60947-5-1GB/T14048.1
