Technical Specifications
Overview

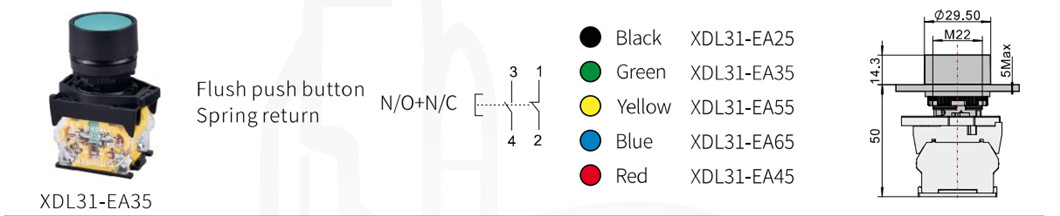

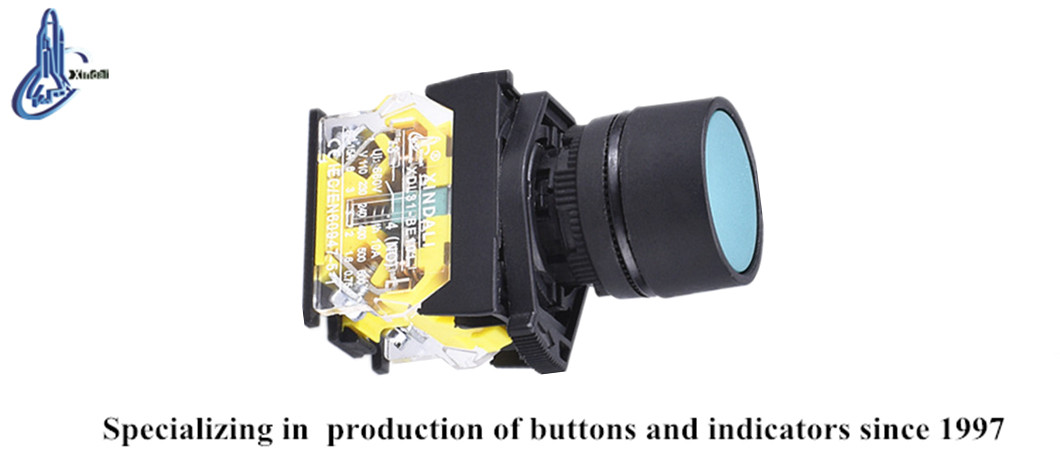

Industrial Push Button Switch
This high-performance push button switch is designed for reliable control in industrial and commercial electrical circuits. Featuring a durable construction with zinc alloy and anti-flame plastics, it provides excellent resistance to electrical erosion and physical impacts. Compliant with international standards including IEC60947-5-1, this versatile switch is suitable for signaling, interlocking, and emergency stop applications.
Technical Specifications
- Rated Insulation Voltage
- 600 V
- Rated Thermal Current
- 10 A
- Pollution Grade
- 3
- Rated Withstanding Impulse Voltage
- 6 kV
Environmental Conditions
- Operating Temperature Range
- -5°C to +55°C
- Storage Temperature Range
- -25°C to +70°C
- Relative Humidity
- 35-85% RH
Mechanical Characteristics
Mechanical Life Cycles
| Type | Operations |
|---|---|
| Standard Pushbutton | 3,000,000 |
| Emergency Button | 300,000 |
Fastening Torque
0.8 Nm
Nominal
1.2 Nm
Maximum
- Protection Grade
- IP40IP54IP65IP66IP67IP68
