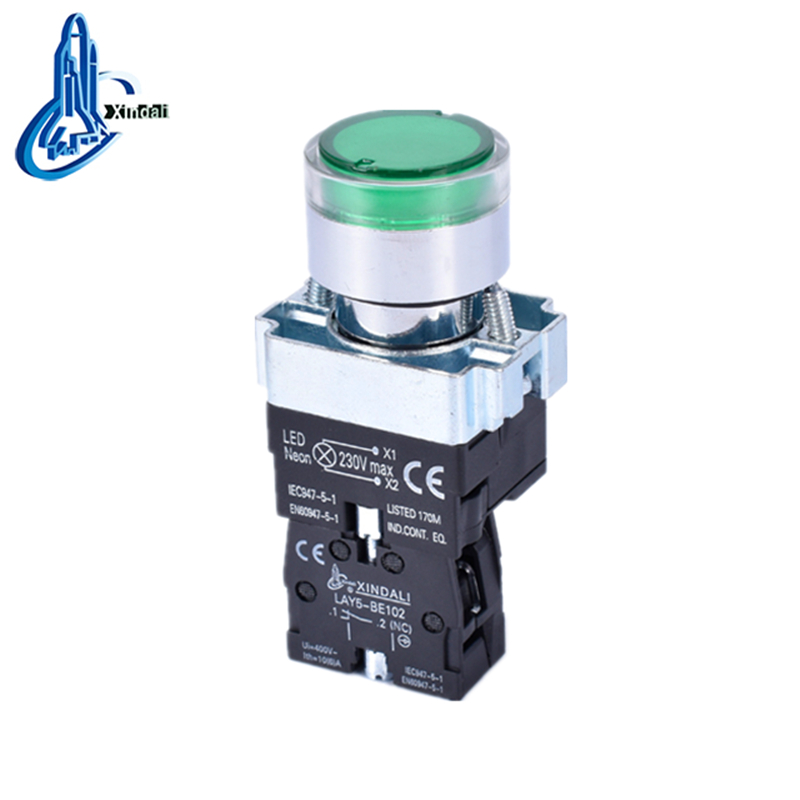

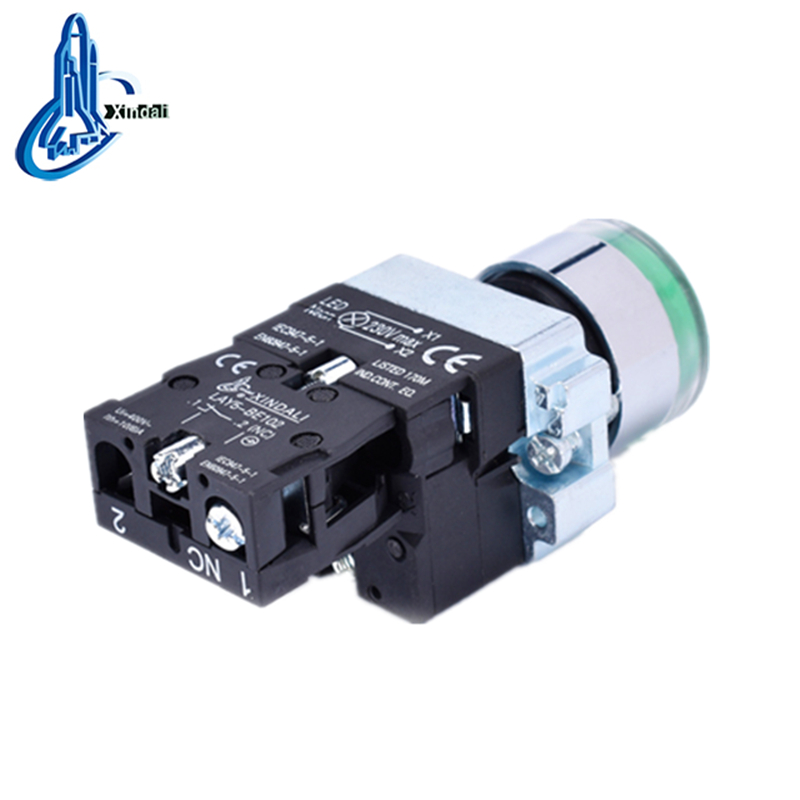

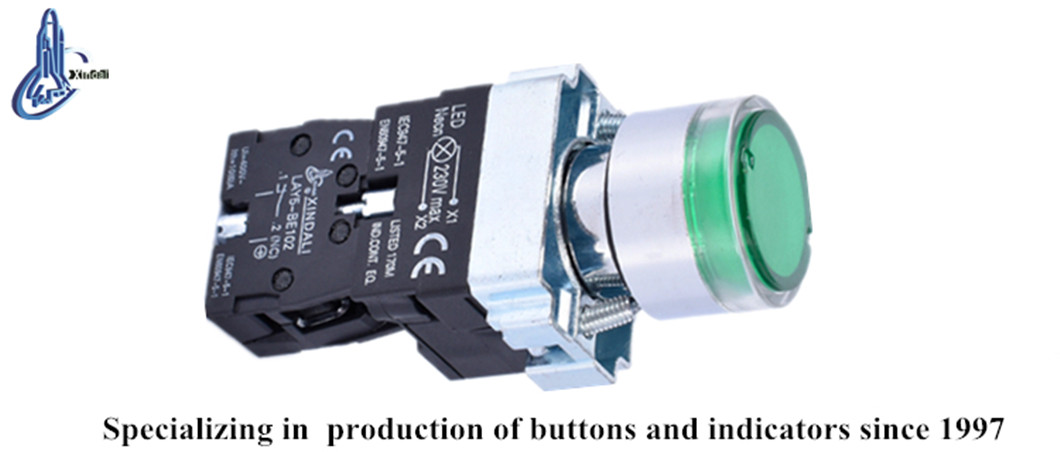

12V LED Indicator Push Button Switch
This electric switch features an integrated LED button light and operates on a 12V power supply. It is designed for applications requiring reliable electrical control and clear visual indication.
Technical Specifications
Product Overview
Industrial Control Solution
The 12V LED Indicator Push Button Switch is designed for reliable control in industrial environments, suitable for distribution boxes, control cabinets, and power stations. It features a robust construction with zinc alloy and high-grade anti-flam plastic, ensuring durability and safety. With silver alloy contacts for high anti-electrical erosion and compliance with international standards, this switch provides a dependable solution for signal and interlocking purposes.
Technical Specifications
- Rated Insulation Voltage
- AC 600V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
- LED Brightness
- 60 cd/m2
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
500,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Compliance & Standards
Compliance Standards
- GB/T14048.1
- IEC60947-5-1
- Certifications
- CEISO9001RoHSUL

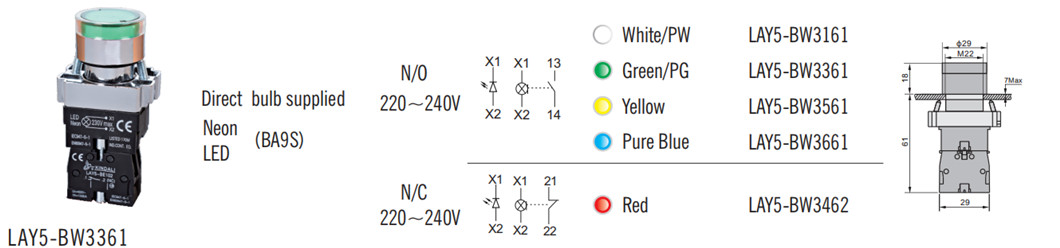

Dimensions & Mounting
- Mounting Hole Diameter
- 22 mm
- Maximum Panel Thickness
- 7 mm
- Top Diameter
- 29 mm
