Z Purlin Forming Machine
The Z purlin forming machine is engineered for the efficient production of Z-shaped purlins. It utilizes multiple forming stations and an automatic cutting system to ensure precise dimensions.
Technical Specifications
Overview
High-Efficiency Z Purlin Production

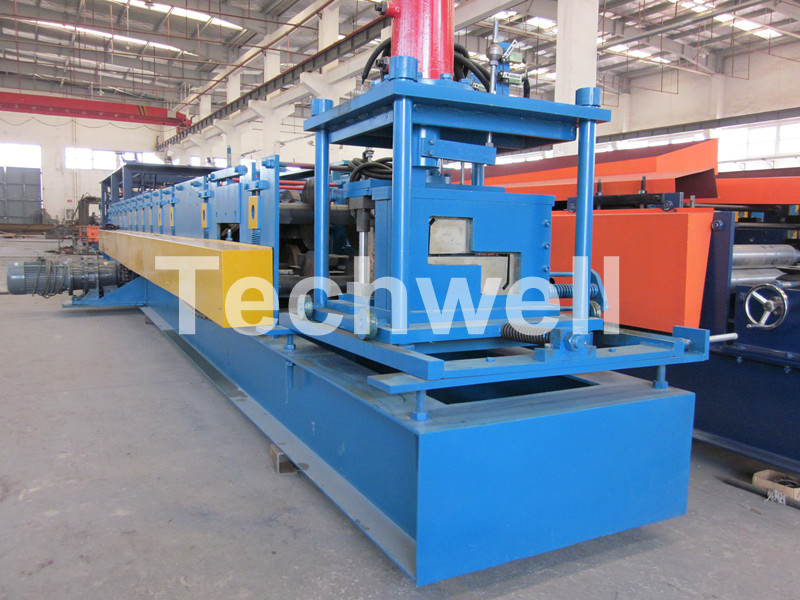

The TW-8004-A Z Purlin Roll Forming Machine is engineered for the precise and efficient manufacture of Z-shaped structural profiles. Utilizing a robust construction with 25 forming stations, it offers consistent dimensional accuracy for high-quality building components. This system integrates advanced PLC control with a hydraulic cutting mechanism to deliver reliable performance for industrial construction applications.
Technical Specifications
Machine Power
18.5 kW
Main Motor
5.5 kW
Hydraulic Motor
Performance Parameters
| Parameter | Value |
|---|---|
| Working Speed | 12-15 m/min |
| Purlin Width | 100-300 mm |
| Thickness Range | 1.5-3.0 mm |
| Roll Stations | 25 |
Mechanical Specifications
- Weight: 10000 KG
- Dimensions: 14000x1400x1000 mm
- Hydraulic Pressure: 20 Mpa
- Cutting Material: Cr12Mov Steel
- Roll Material: 45# Steel (HRC58-62 chrome coated)
Control and Standards
Electrical Requirements
380V50HZ3 Phase
- Automation
- PLC ControlOMRONPanasonicAutomatic Cutting
