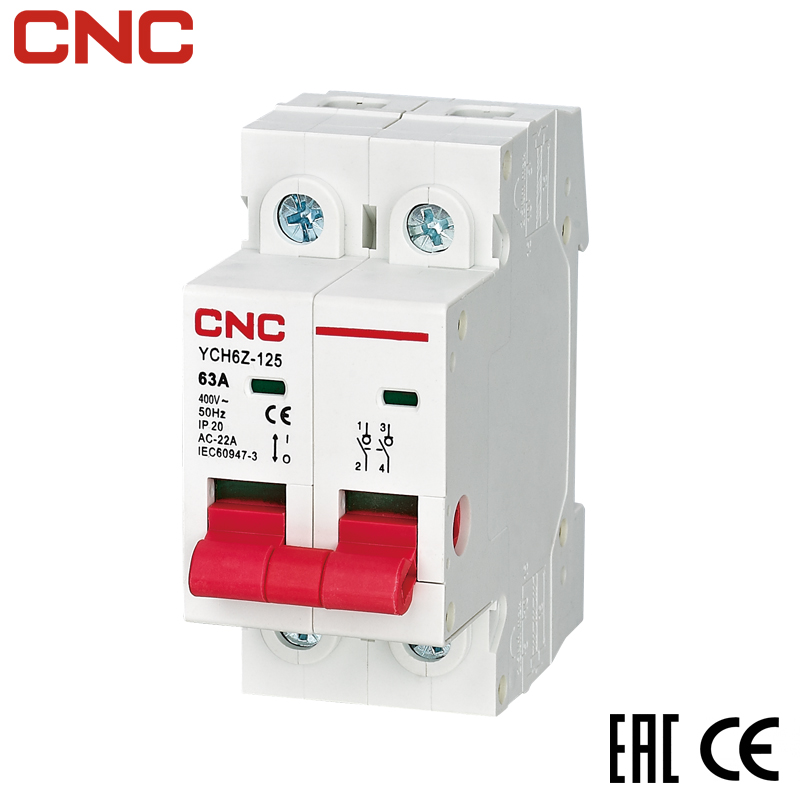

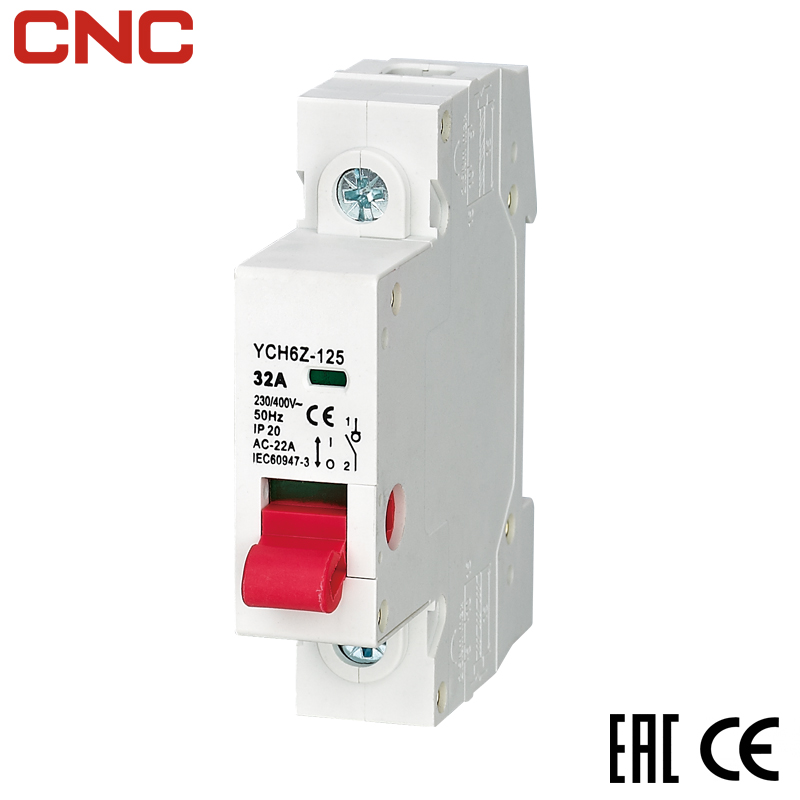

YCH6Z-125 Isolating Switch
The YCH6Z-125 isolating switch is designed for 230/400V and 400V-50Hz electrical systems. It provides reliable circuit isolation and features an IP20 protection rating.
Technical Specifications
Product Overview
Industrial Isolating Switch
The YCH6Z-125 series is an advanced isolating switch designed for safe and reliable power circuit management. It is primarily used to turn circuits on or off under non-loaded conditions, providing a critical isolation point during maintenance to prevent accidental activation. Compliant with international IEC60947-3 standards, this device ensures safe operations in both commercial and industrial electrical systems.
Technical Specifications
Rated Current Capacity
- 32
- 63
- 125
- Rated Voltage
- 400 V
- Operating Frequency
- 50 Hz
- Utilization Category
- AC-22A
- Protection Rating
- IP20
Compliance and Standards
- Global Certifications
- CEEAC
- Product Standards
- IEC60947-3
Performance Metrics
Key Operational Ratings
125 A
Maximum Current
400 V
Max Voltage
