Technical Specifications
Product Overview
Smart Environmental Monitoring

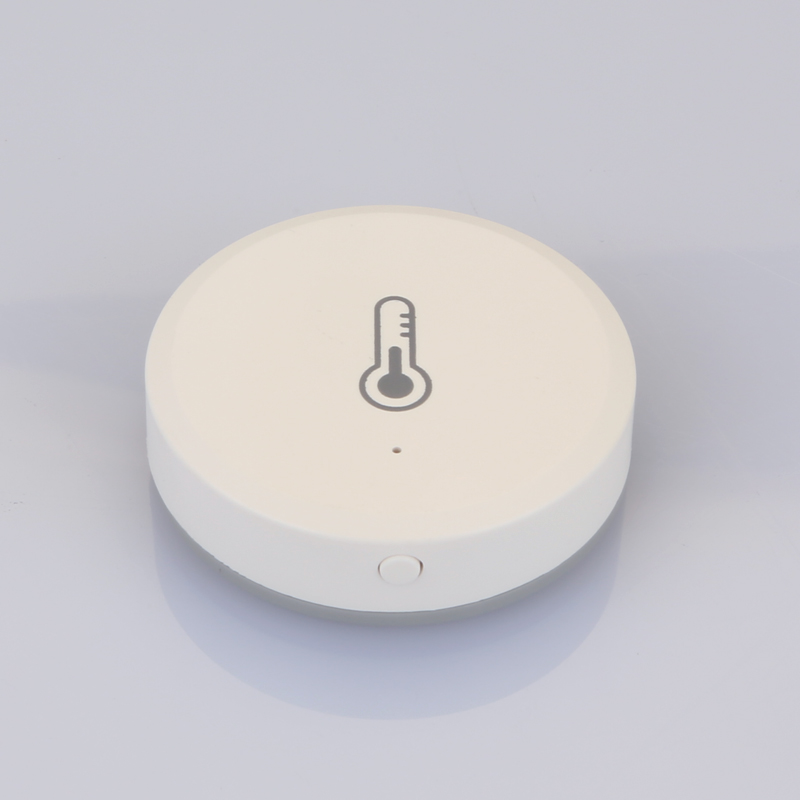

The GL-THS01 is a compact, low-power wireless sensor designed for precise temperature and humidity tracking in indoor environments. Leveraging the efficient Zigbee protocol, it provides seamless integration with smart platforms for real-time data monitoring and remote alerts. Its discreet design and versatile installation options make it an ideal solution for climate control, data logging, and building management applications.
Technical Specifications
- Operating Voltage
- 3.3 V
- Average Operating Current
- 5 mA
- Standby Current
- < 3uA
- Communication Protocol
- Zigbee2.4GHz
Physical Attributes
- Dimensions
- 37mm x 37mm x 12mm
- Installation Method
- Adhesive surface mount
Operational Range
Key Performance Metrics
30 m
Indoor Range
50 m
Outdoor Range
60 ℃
Max Operating Temp
- Temperature Operational Range
- -20 to 60 ℃
