Wireless Temperature Sensor with Isolated Probe
This wireless sensor transmits temperature data at 470MHz across distances up to 100 meters. Its isolated probe and rapid 15s sampling frequency enable precise temperature measurements within a range of 0℃ to 125℃.
Technical Specifications
Overview
Wireless Temperature Monitoring Solution

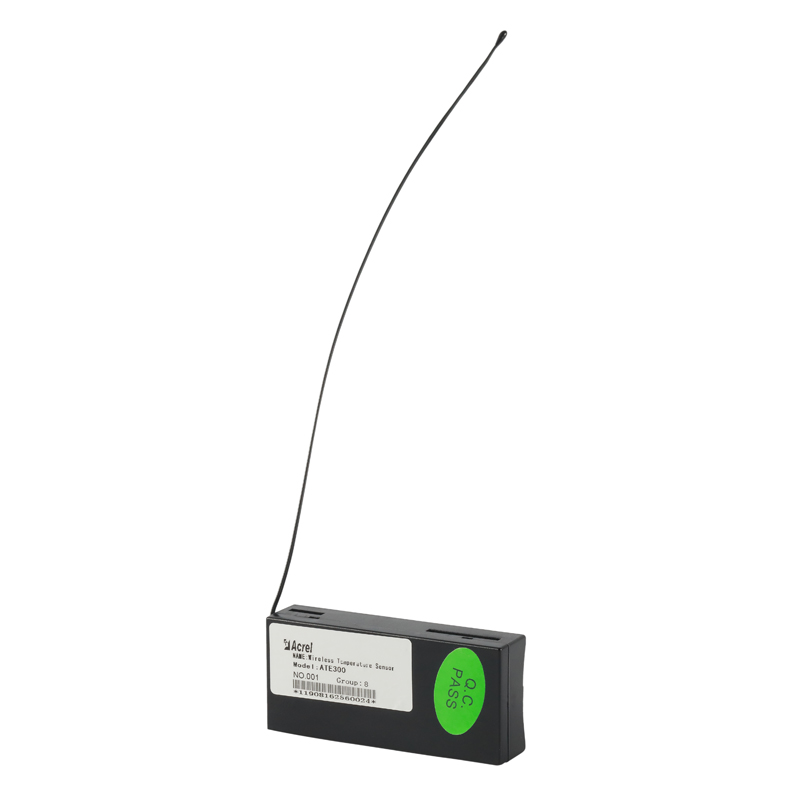

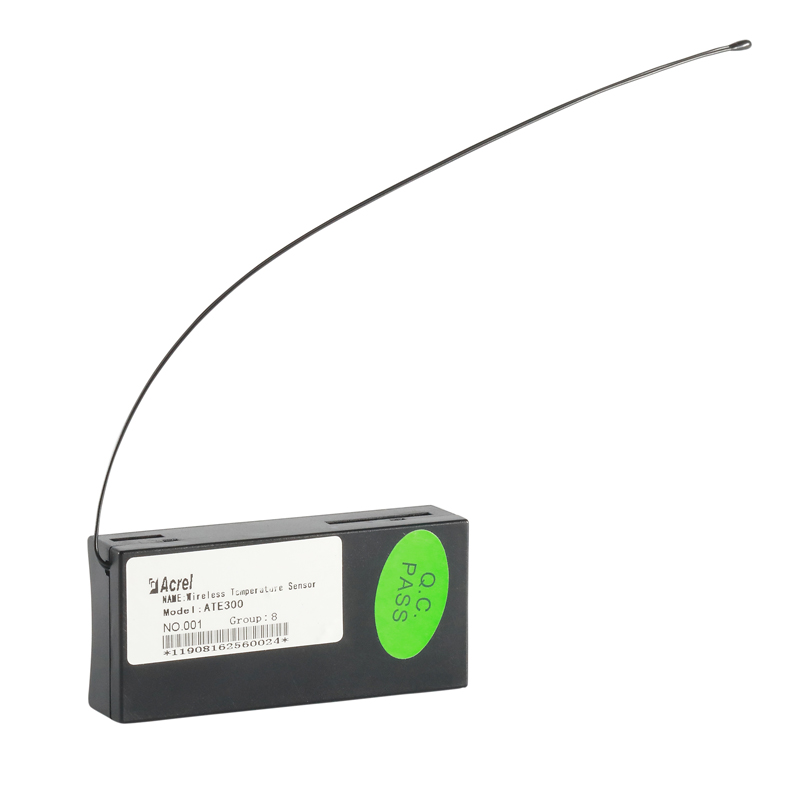

The ATE300 is a specialized wireless temperature sensor engineered for high-reliability monitoring in electrical switchgear environments. It utilizes a 470MHz wireless transmission frequency to deliver data over distances up to 100 meters, ensuring effective remote monitoring. Designed for both medium-voltage (3-35kV) and low-voltage (0.4kV) applications, this sensor features an isolated probe and efficient CT-powered operation for long-term deployment.
Technical Specifications
- Temperature Measuring Range
- 125 °C
- Sampling Frequency
- 15 s
- Wireless Transmission Distance
- 100 m
- Wireless Frequency
- 470MHz
- Powering Method
- CT-powered (requires >5A starting current)
Compatibility
Supported Switchgear Types
- 3-35kV Indoor Switchgears
- Built-in Switchgears
- Handcart Switchgears
- Fixed Switchgears
- Loop-net Switchgears
- 0.4kV Low-voltage Switchgears
- Drawer Switchgears
Compliance
- Compliance Standards
- NB/T 42086-2016
Features
Key Features
Isolated ProbeWireless TransmissionCT-PoweredWide Temperature Range
