Welding Electrode Rod
Welding electrode rods provide excellent arc stability and are suitable for all-position welding. The slag is fluid and easy to remove, resulting in smooth welds.

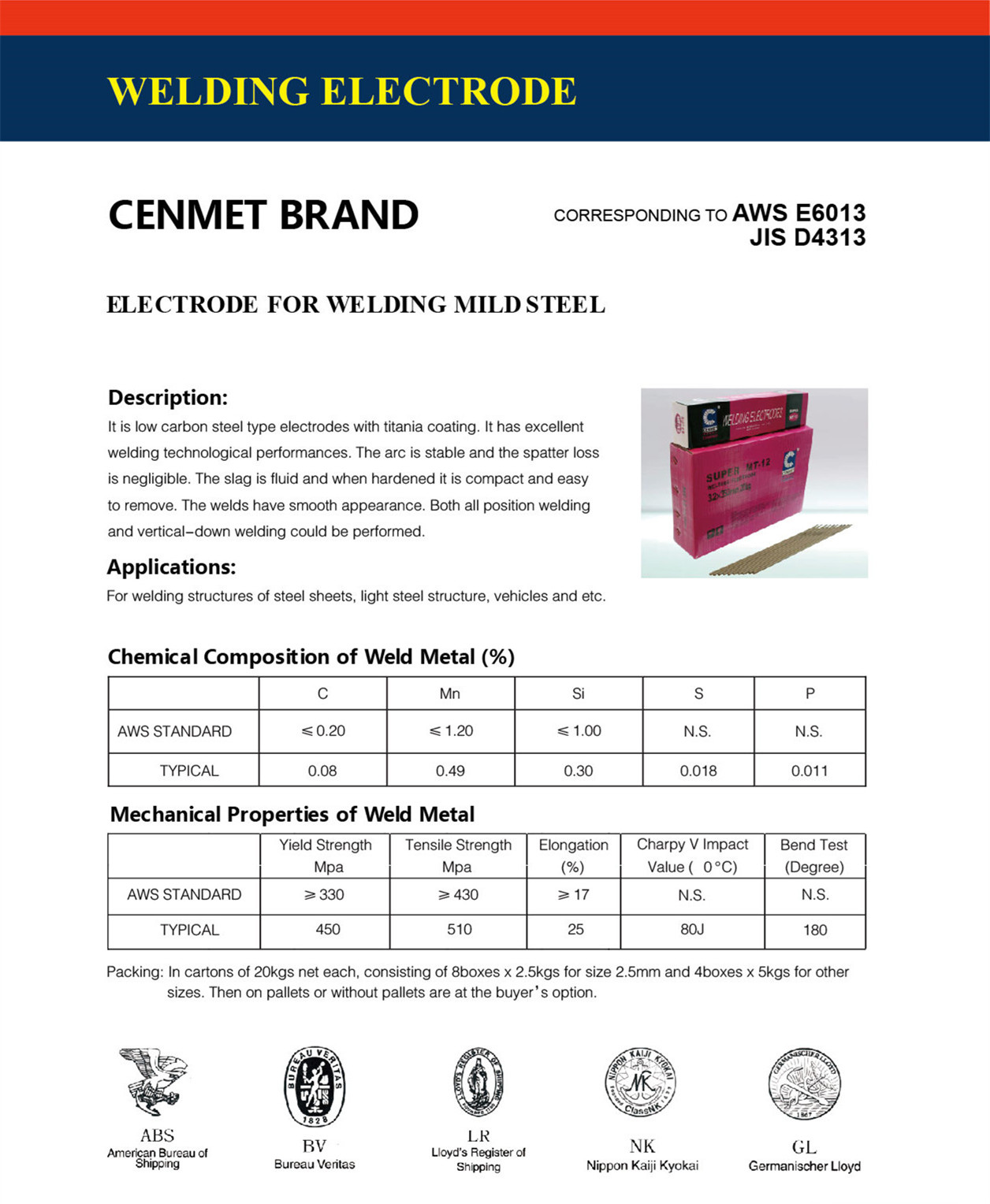

Technical Specifications
Overview

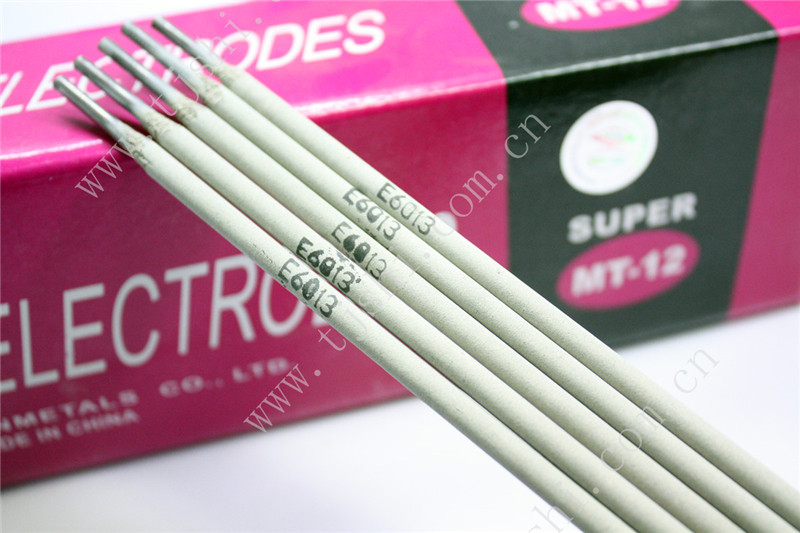

High-Performance Mild Steel Welding Electrodes
These low carbon steel electrodes feature a specialized titania coating designed for superior welding performance. They provide a stable arc with negligible spatter loss and produce a fluid slag that is easy to remove once hardened. Engineered for versatility, they support all-position and vertical-down welding, making them ideal for steel sheets, light structures, and vehicle fabrication.
Technical Standards
Classifications & Approvals
- International Standards
- AWS E6013JIS D4313
Mechanical Properties
Typical Mechanical Performance
Chemical Composition
Weld Metal Chemical Analysis
| Element | AWS Standard (%) | Typical Value (%) |
|---|---|---|
| Carbon (C) | ≤ 0.20 | 0.08 |
| Manganese (Mn) | < 1.20 | 0.49 |
| Silicon (Si) | < 1.00 | 0.30 |
| Sulphur (S) | N.S. | 0.018 |
| Phosphorus (P) | N.S. | 0.011 |
Physical Characteristics
Available Sizes
- 2.5mm x 300mm
- 3.2mm x 350mm
Applications
Recommended Use Cases
- Steel sheet structures
- Light steel structures
- Vehicle manufacturing
- All-position welding
- Vertical-down welding
Logistics & Packaging
Weight and Container Specs
Electrodes are packed in 20kg net cartons. For 2.5mm size, cartons consist of 8 boxes of 2.5kg each. For other sizes, cartons consist of 4 boxes of 5kg each. Palletized or non-palletized shipping is available based on buyer requirements.
- Net Weight per Carton
- 20 kg
