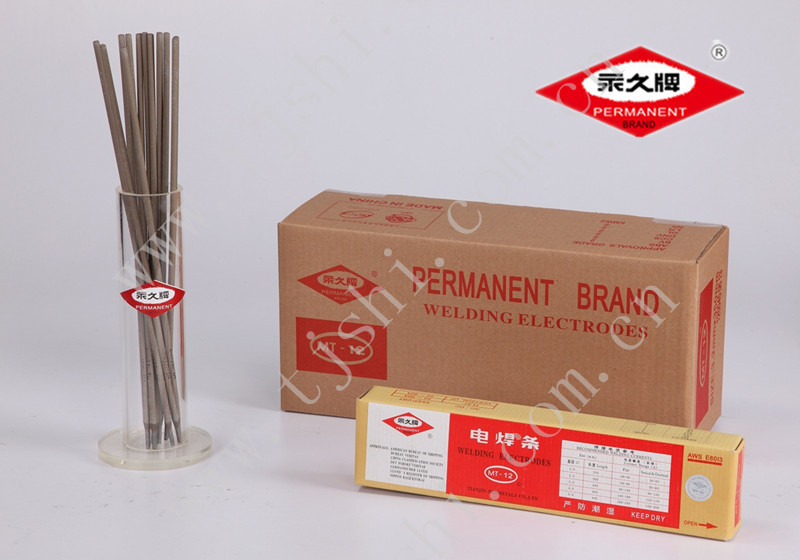

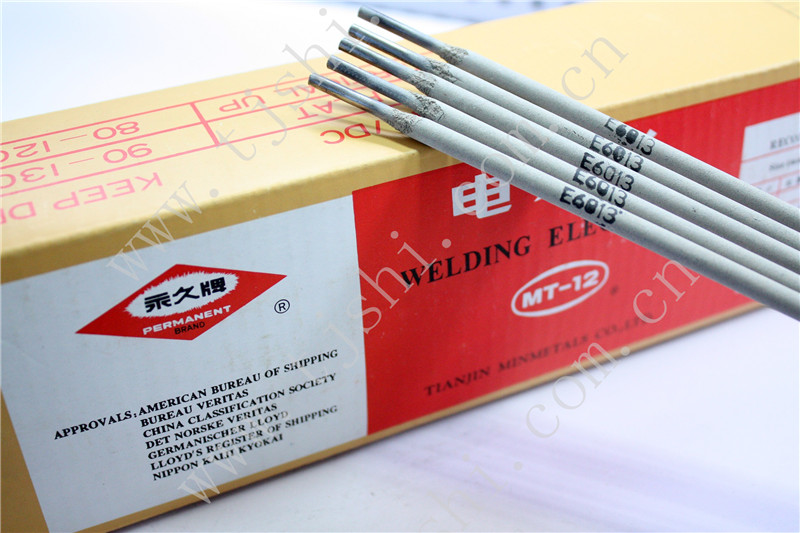

E6013 Mild Steel Welding Electrode
This E6013 welding electrode is designed for welding mild steel. It offers excellent welding performance with a stable arc, minimal spatter, and easy slag removal.
Technical Specifications
Product Overview
High-Performance Mild Steel Welding Electrode
This E6013 welding electrode features a titania coating designed for superior performance in mild steel welding applications. It ensures a stable arc with negligible spatter, resulting in smooth, professional-grade weld appearances. The fluid slag is easily removed after hardening, making it ideal for all-position welding, including irregular joints and challenging conditions.
Standards & Certifications
International Approvals
ABSBVCCSDNVGLLRNK
- Compliance Standards
- AWS A 5.1 E6013GB/T5117 E4313JIS Z3211 E4313

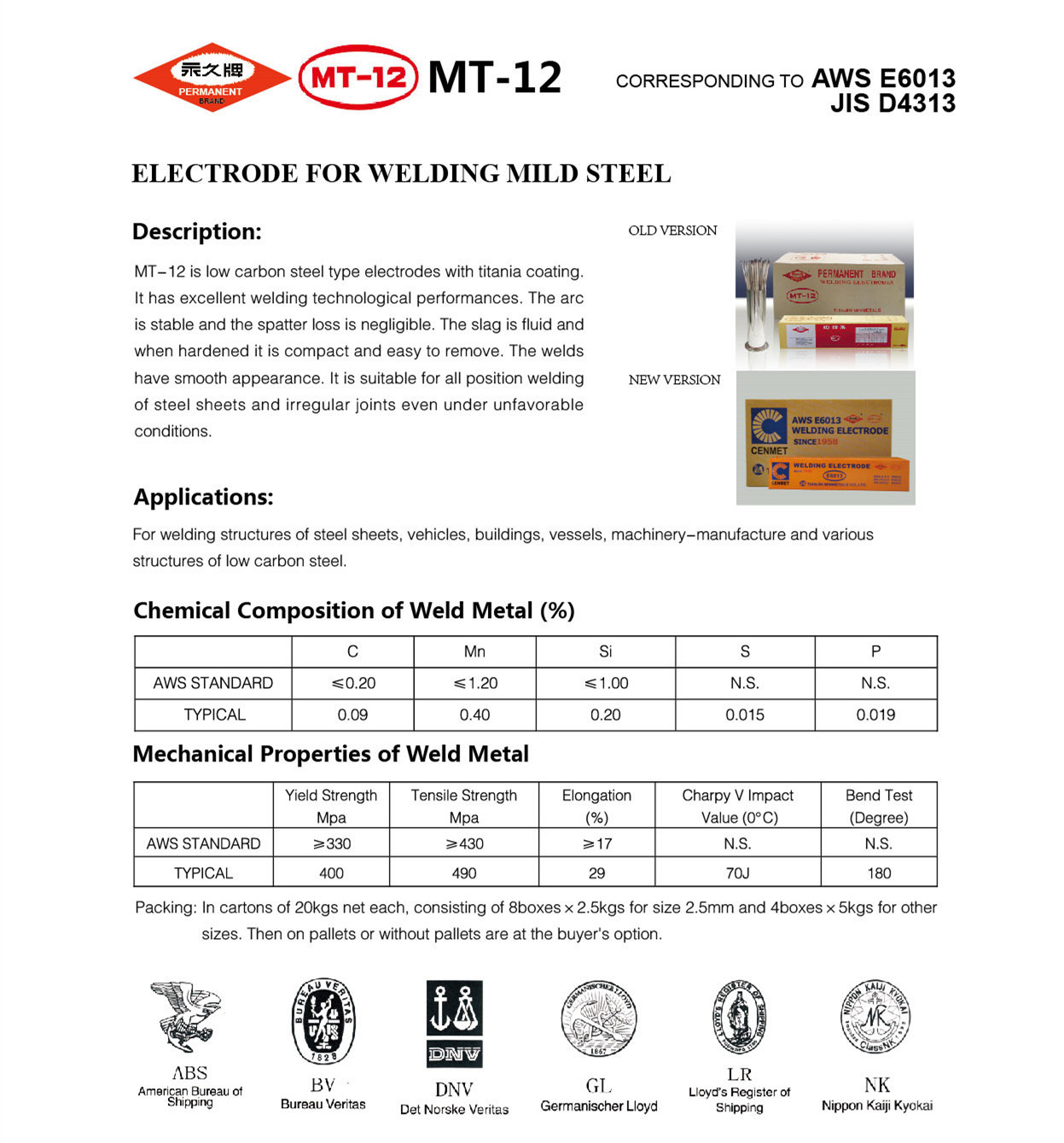

Technical Specifications
Chemical Composition of Weld Metal (%)
| Element | Typical Value |
|---|---|
| Carbon (C) | 0.09 |
| Manganese (Mn) | 0.40 |
| Silicon (Si) | 0.20 |
| Sulfur (S) | 0.015 |
| Phosphorus (P) | 0.019 |
Mechanical Properties
400 MPa
Yield Strength
490 MPa
Tensile Strength
29 %
Elongation
70 J
Charpy V Impact (0°C)
Operational Guidelines
Recommended Current
- DC: 80-120 A
- AC: 90-130 A
- Storage Requirements
- Keep dry and protect from humidity to maintain electrode integrity.
Logistics
- Packaging
- Cartons of 20kg net each. Configuration: 8 boxes x 2.5kg (for 2.5mm size) or 4 boxes x 5kg (for other sizes). Pallet options available upon request.
