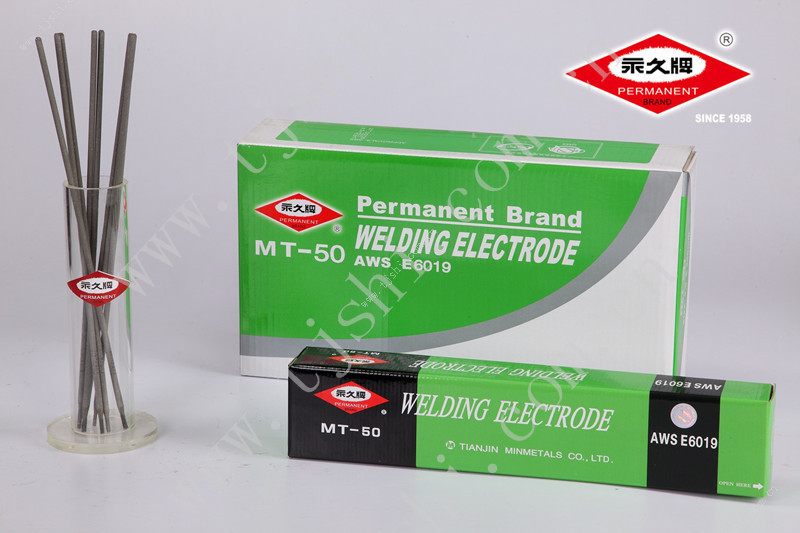

MT-50 Mild Steel Welding Electrode
The MT-50 is an ilmenite type electrode designed for welding mild steel. It exhibits excellent welding performance in all positions and the deposited metal offers good mechanical properties.

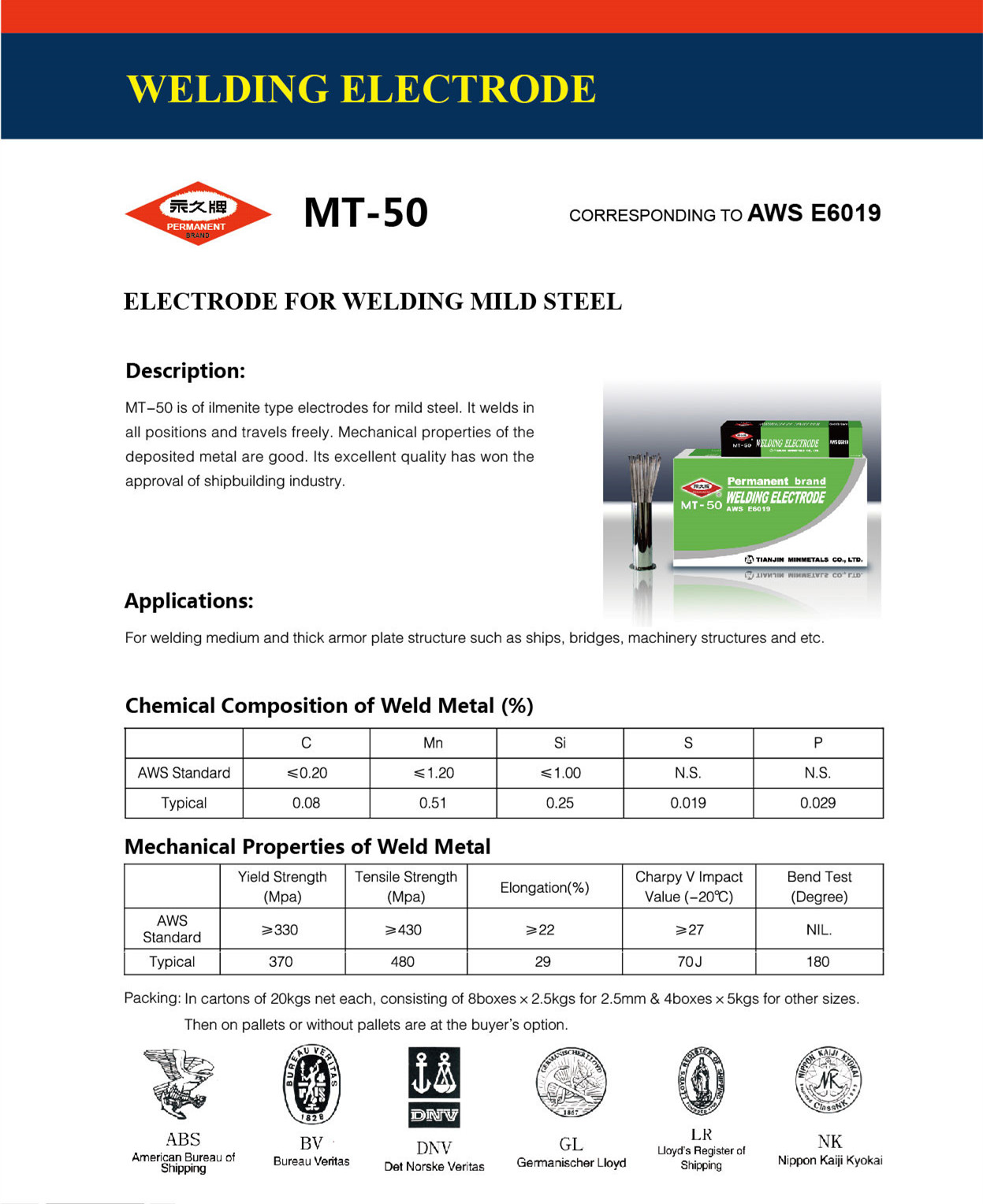

Technical Specifications
Product Overview
MT-50 Mild Steel Welding Electrode
The MT-50 is an ilmenite type electrode specifically engineered for welding mild steel. It is designed to offer excellent welding performance in all positions with smooth travel characteristics. Recognized for its quality in the shipbuilding industry, it is an ideal choice for medium and thick armor plate structures, including ships, bridges, and machinery.
Standards & Approvals
- AWS Classification
- E6019
- Classification Society Approvals
- ABSBVDNVGLLRNK
Mechanical Properties
Performance Metrics
370 Mpa
Yield Strength
480 Mpa
Tensile Strength
29 %
Elongation
70 J
Charpy V Impact (-20°C)
Chemical Composition
Typical Chemical Composition (%)
| Element | Typical Content (%) |
|---|---|
| Carbon (C) | 0.08 |
| Manganese (Mn) | 0.51 |
| Silicon (Si) | 0.25 |
| Sulfur (S) | 0.019 |
| Phosphorus (P) | 0.029 |
Logistics & Packing
Standard Packing
- 20kg net weight per carton
- 8 boxes x 2.5kg (for 2.5mm electrodes)
- 4 boxes x 5kg (for other sizes)
- Palletization optional
