Washing Machine/Dryer Temperature Sensor
This temperature sensor is designed for use in automatic washing machines and dryers. It features CTI testing at 250V and GWT testing at 650/750°C.
Technical Specifications
Product Overview
High-Performance Appliance Temperature Sensing
This high-precision temperature sensor is specifically engineered for use in automatic washing machines and drying units. Designed to provide reliable feedback for optimal appliance operation, it accurately monitors water temperatures in drum washing machines and air duct temperatures in dryers. With durable construction and compatibility with standard RAST 2.5/5.0 connector systems, it ensures seamless integration and long-term performance in demanding appliance environments.
Technical Standards
Response Time
10 s
Min Time Constant
30 s
Max Time Constant
- Safety and Compliance
- CTI 250VGWT 650/750°CBall Pressure 125°C
- Connector System
- RAST 2.5 / 5.0

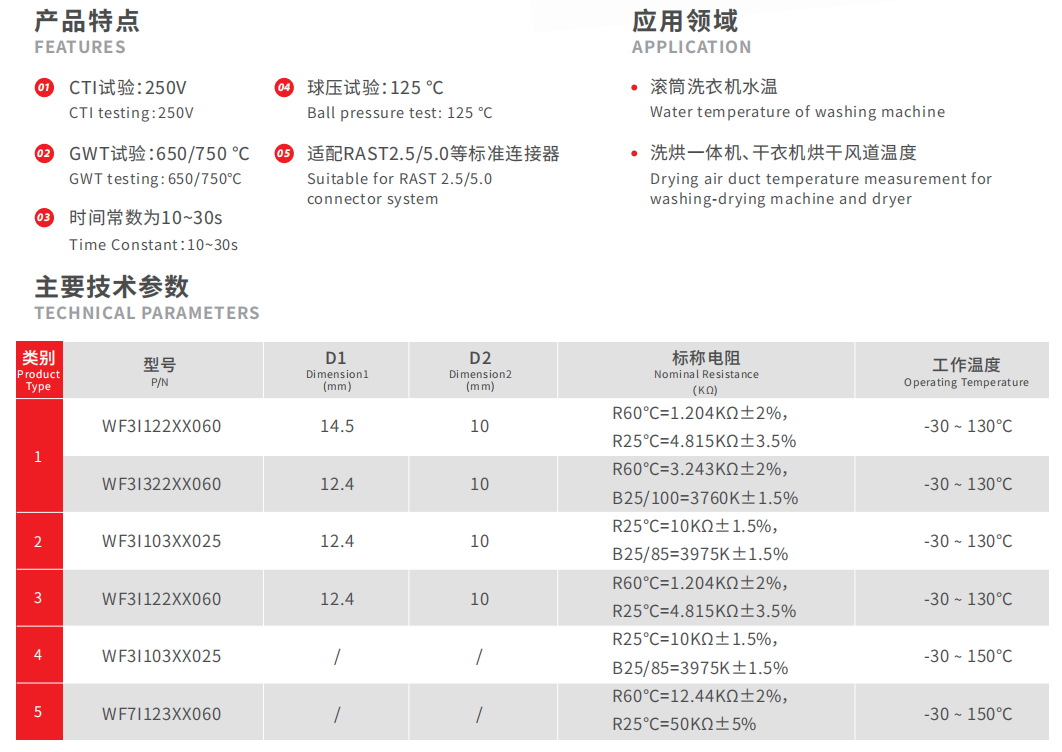

Technical Specifications
Sensor Model Specifications
| P/N | Operating Temp (°C) | Nominal Resistance |
|---|---|---|
| WF31122XX060 | -30~130 | R60°C=1.204KΩ±2% |
| WF31322XX060 | -30~130 | R25°C=4.815KΩ±3.5% |
| WF31103XX025 | -30~130 | B25/100=3760K±1.5% |
| WF71123XX060 | -30~150 | R25°C=50KΩ±5% |

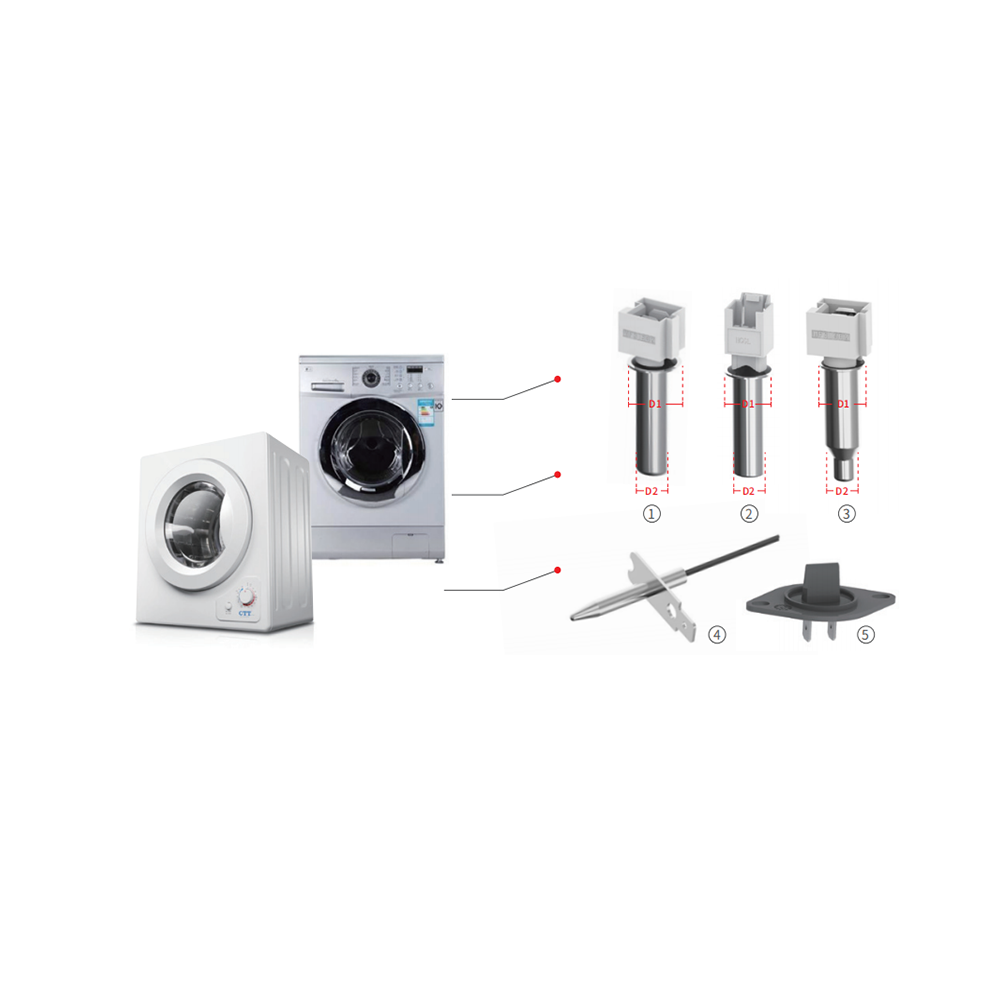

Application
Typical Applications
- Water temperature sensing for drum washing machines
- Drying air duct temperature measurement
- Washing-drying machine thermal monitoring
