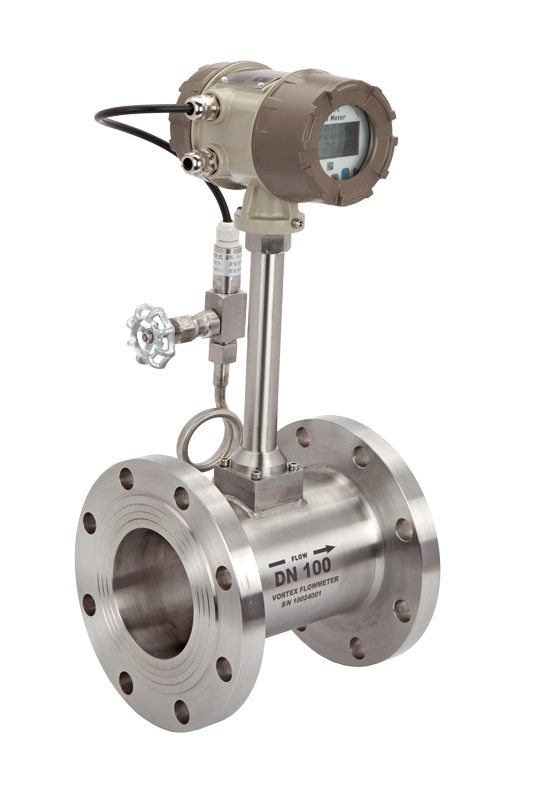

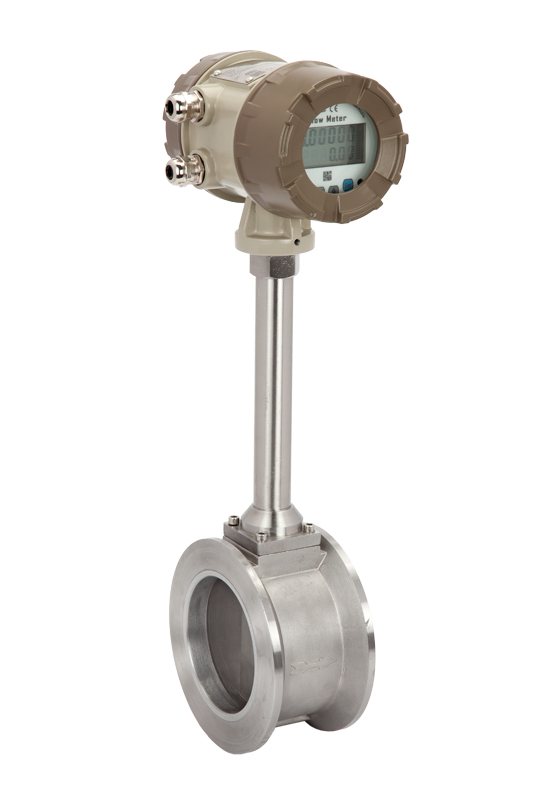

Vortex Flowmeter with LCD Display
This flowmeter measures the flow of steam, air, gas, and water. It features an LCD display with 4-2mA output, flange connection, and SS304 material, with a diameter range of 25mm-300mm.
Technical Specifications
Product Overview
High-Precision Vortex Flowmeter
This industrial vortex flowmeter utilizes the von Kármán effect to provide accurate volumetric measurement for liquids, gases, and steam. Featuring a robust stainless steel construction, it is designed for demanding environments, process control, and HVAC applications. The integrated digital LCD display provides clear, real-time flow data for enhanced operational monitoring.
Measurement Accuracy
Accuracy Levels
| Fluid Type | Accuracy |
|---|---|
| Liquid | ±1.0% |
| Gas | ±1.0% |
| Vapor Stream | ±1.5% |
Technical Specifications
Power Requirements
- Sensor: +12V DC (Optional: +24V DC)
- Transmitter: +24V DC
- Field Display: Integral 3.2V Lithium Battery or +24V DC
- Certifications & Ratings
- IP65ExdIIBT6CE
Operating Conditions
Temperature Range
-20 ℃
Standard Minimum
70 ℃
Standard Maximum
350 ℃
Extended Maximum
