U-Shape Door Frame Panel Forming Machine
This machine is designed for the efficient production of door frame panels with a U-shaped profile. It utilizes a series of rollers and forming stations to gradually shape the metal sheet into the desired U-shape.
Technical Specifications
Product Overview
U-Shape Door Frame Panel Forming Machine
This automated roll forming machine is engineered for the high-volume production of door frame panels and shutter door slats. Featuring a robust gear-driven design, it provides reliable power and precision for forming metal sheets with thicknesses ranging from 0.3mm to 1.2mm. The system integrates advanced PLC control with hydraulic cutting and punching mechanisms to ensure consistent, high-quality output at adjustable speeds up to 30m/min.
Technical Specifications
Forming Speed
30 m/min
Maximum Speed
- Material Thickness Range
- 1.2 mm
- Roller Groups
- 10+5 groups
- Roller Material
- 45# steel with chrome plating
Material Compatibility
- Supported Coil Types
- Pre-painted coilsGalvanized coilsAluminum coils

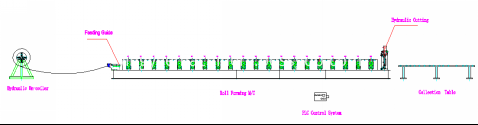

Production Flow
Automated Process Steps
- Decoiler
- Feeding Guide
- Punching Holes
- Main Roll Forming
- PLC Control System
- Hydraulic Cutting
- Output Table
