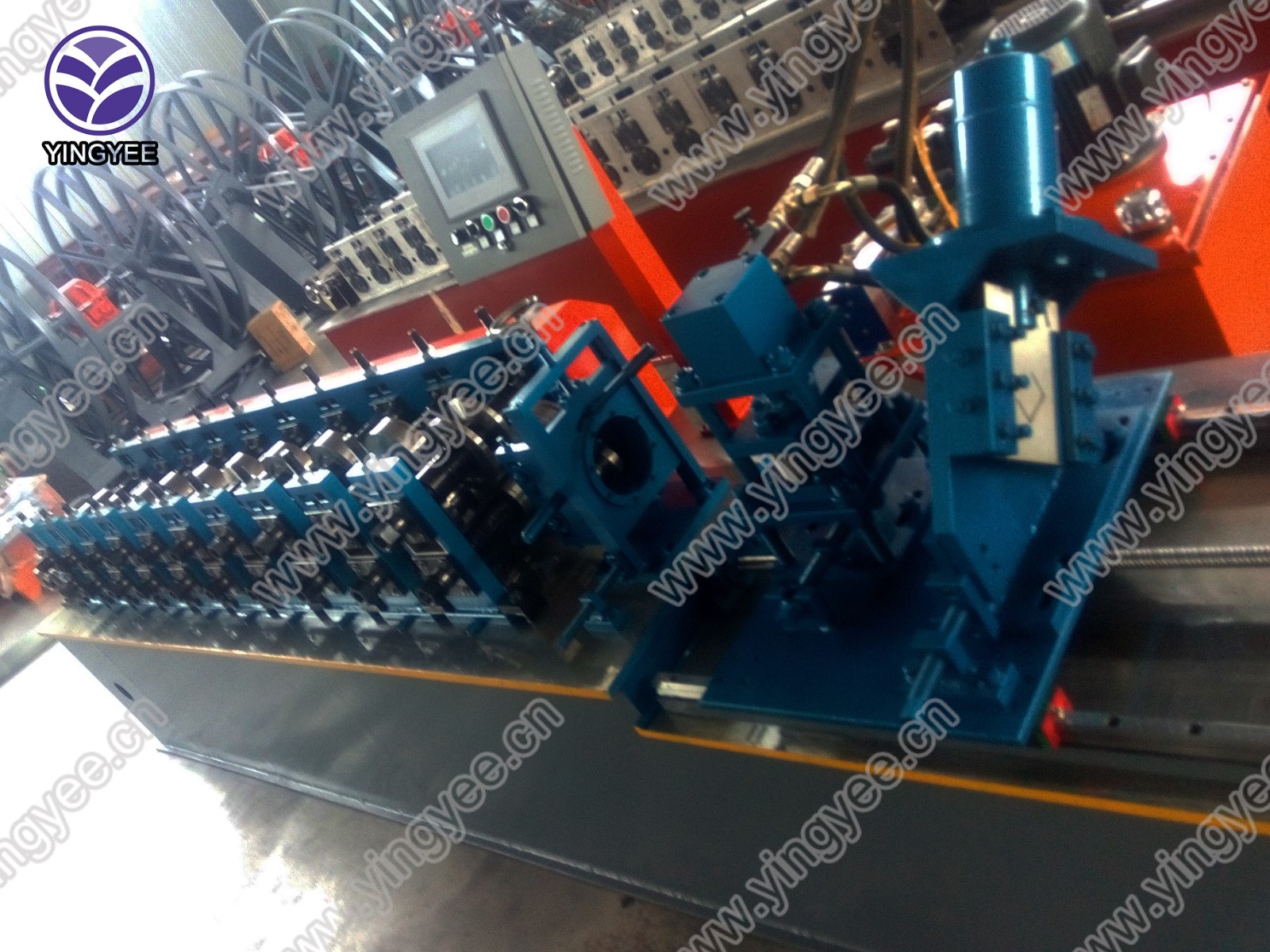

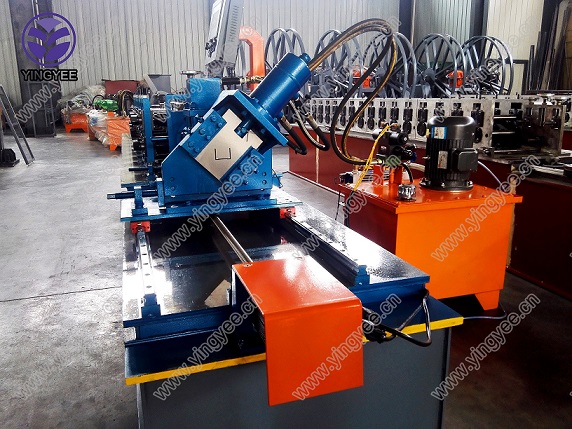

U Baffle Ceiling Roll Forming Machine

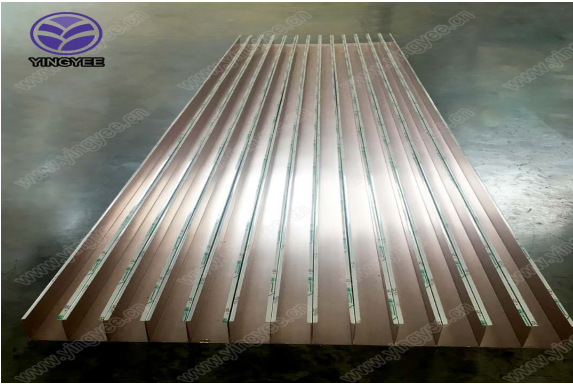

This roll forming machine is designed for the efficient production of U-shaped baffle ceiling panels. It utilizes a roll forming process to precisely shape metal sheets into the desired U-baffle profile.
Technical Specifications
Product Overview
High-Efficiency U-Baffle Production
This roll forming machine is engineered for the high-volume production of U-shaped baffle ceiling panels. It utilizes a precision multi-stage forming process to shape metal strips into consistent profiles. The system is fully automated, incorporating advanced servo-driven cutting and comprehensive control systems to minimize labor costs and material waste while ensuring high output quality.
Technical Specifications
- Main Motor Power
- 7.5 kW
- Forming Speed
- 30 m/min

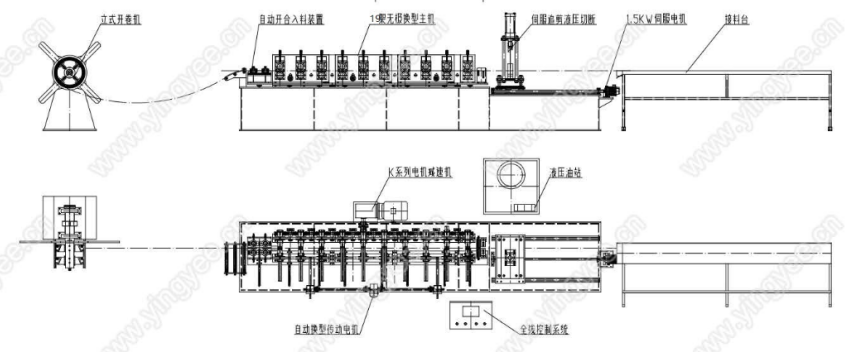

Machine Components
Included Equipment
- Vertical decoiler
- Feeding guide system
- Mainly forming system
- Servo hydraulic cutting unit
- Hydraulic station with cooling fan
- Full line control system
- Ramp receiving table
Drive System Metrics
1.5 kW
Servo Motor Power
- Key Operational Features
- Automatic Material AligningQuick-change Forming SystemServo-driven CuttingAutomatic Stacking
