Two-Phase Electronic Energy Meter for Household Use
This two-phase electronic energy meter is a cost-effective solution for measuring active energy. It uses either a cyclometer register or an LCD for displaying energy consumption.
Technical Specifications
Product Overview
Compact Energy Metering

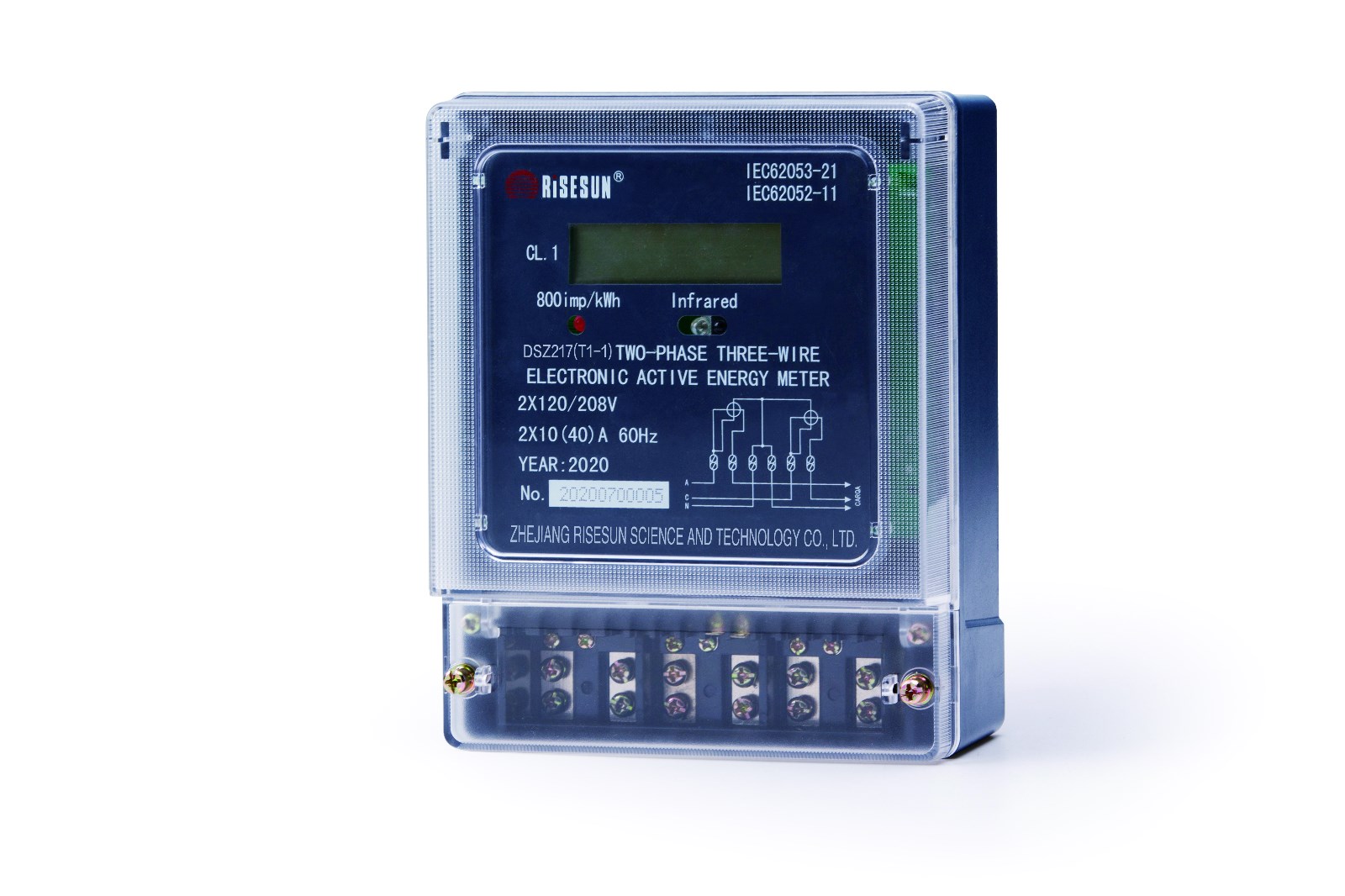

The DSZ217(T1-1) is a cost-effective, two-phase electronic active energy meter designed for household applications. It features a simple, compact, and lightweight construction that ensures convenient installation. The device includes a reliable LED alarm indicator to signal current reversal, while maintaining accurate energy measurement.
Technical Specifications
Accuracy Class
Class 1
Electrical Ratings
| Parameter | Value |
|---|---|
| Number of wires | 3 |
| Reference voltage | 2x120/208V, 2x127/220V |
| Reference frequency | 50/60Hz |
Current Options
- 10(40)A
- 5(60)A
- 10(100)A
- Standards
- IEC62052-11IEC62053-21
Performance Metrics
Power Consumption
1.5 W
Active Power
6 VA
Apparent Power
- Operating Conditions
- 0.8Un to 1.2Un voltage range; -25°C to +60°C temperature range
Mechanical Details
- Dimensions
- 178mm (L) x 145mm (W) x 66.5mm (H)
- Net Weight
- 0.91 kg
- Terminal Cover Type
- Short Type
- Expected Lifetime
- 15 years
