Technical Specifications
Overview
Advanced Energy Metering Solution

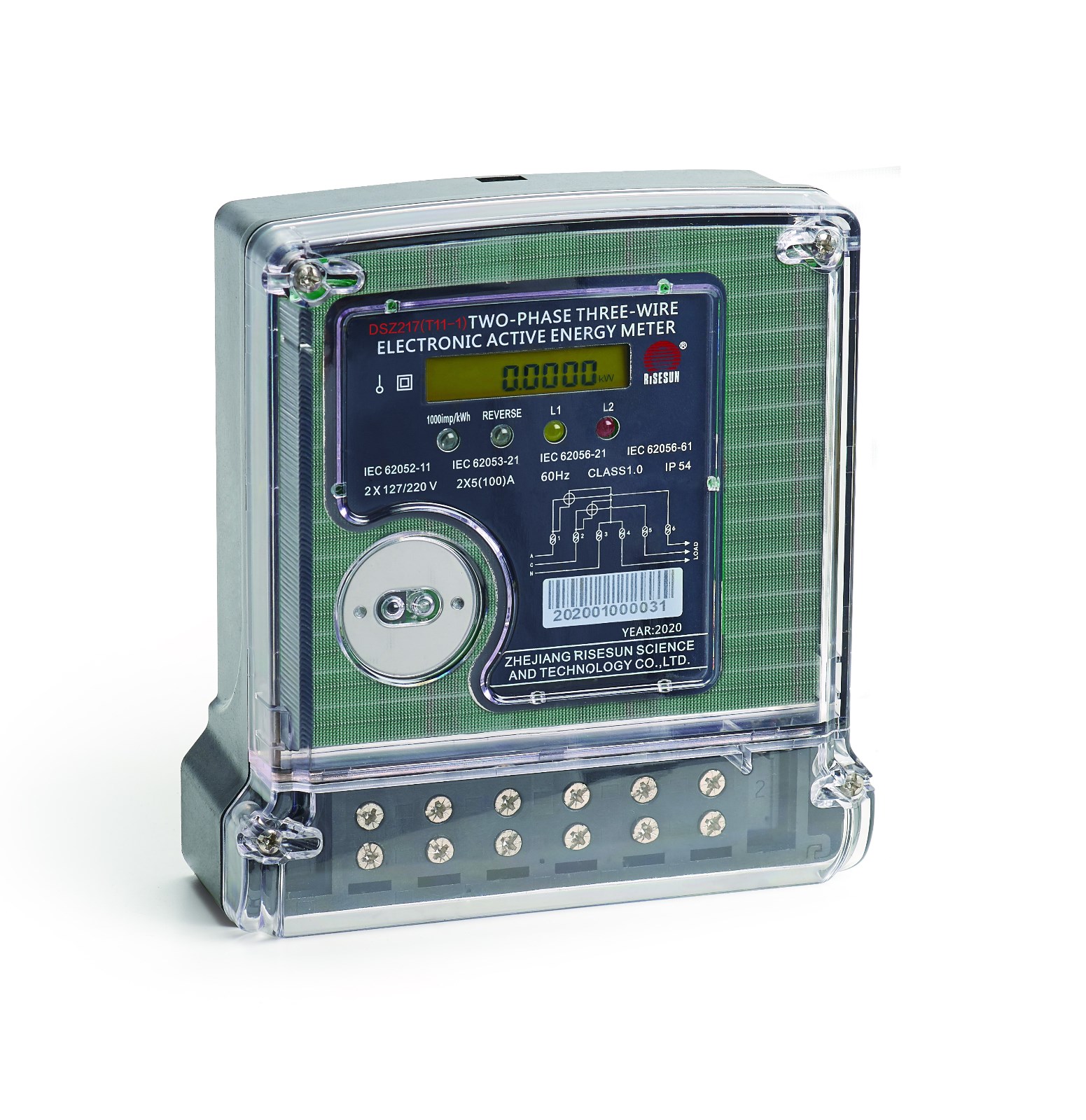

The DSZ217 (T11-1) is a two-phase, three-wire electronic active energy meter designed for high-accuracy energy measurement. Built on an SOC solution, it offers a cost-effective approach to monitoring electrical consumption while incorporating anti-tamper features, such as magnetic field resistance up to 300MT. This meter is ideal for both residential and commercial applications requiring reliable performance and detailed event logging.
Technical Specifications
Accuracy Class
Class 1
Rated Current
5 A
Base Current
100 A
Max Current
- Reference Voltage
- 2x127/220V
- Reference Frequency
- 60 Hz
- Power Consumption
- <1.5W, 10VA (per phase)
Physical & Environmental
Protection Rating
IP54
- Dimensions (L x W x H)
- 160.1mm x 148mm x 57.5mm
- Net Weight
- 0.8 kg
- Operating Temperature
- -25°C to +60°C
Features & Functionality
Event Logging Capabilities
- Current reverse
- Current loss
- Low voltage of battery
- Power outage
- M.D. reset
- Clock correction
- Communication Interfaces
- Optical PortRS485 (Optional)
Compliance
Standards Compliance
| Standard |
|---|
| IEC62052-11 |
| IEC62053-21 |
| IEC62056-61 |
| IEC62056-21 |
